Page 10 For technical questions, please call 1-800-444-3353. SKU 96035

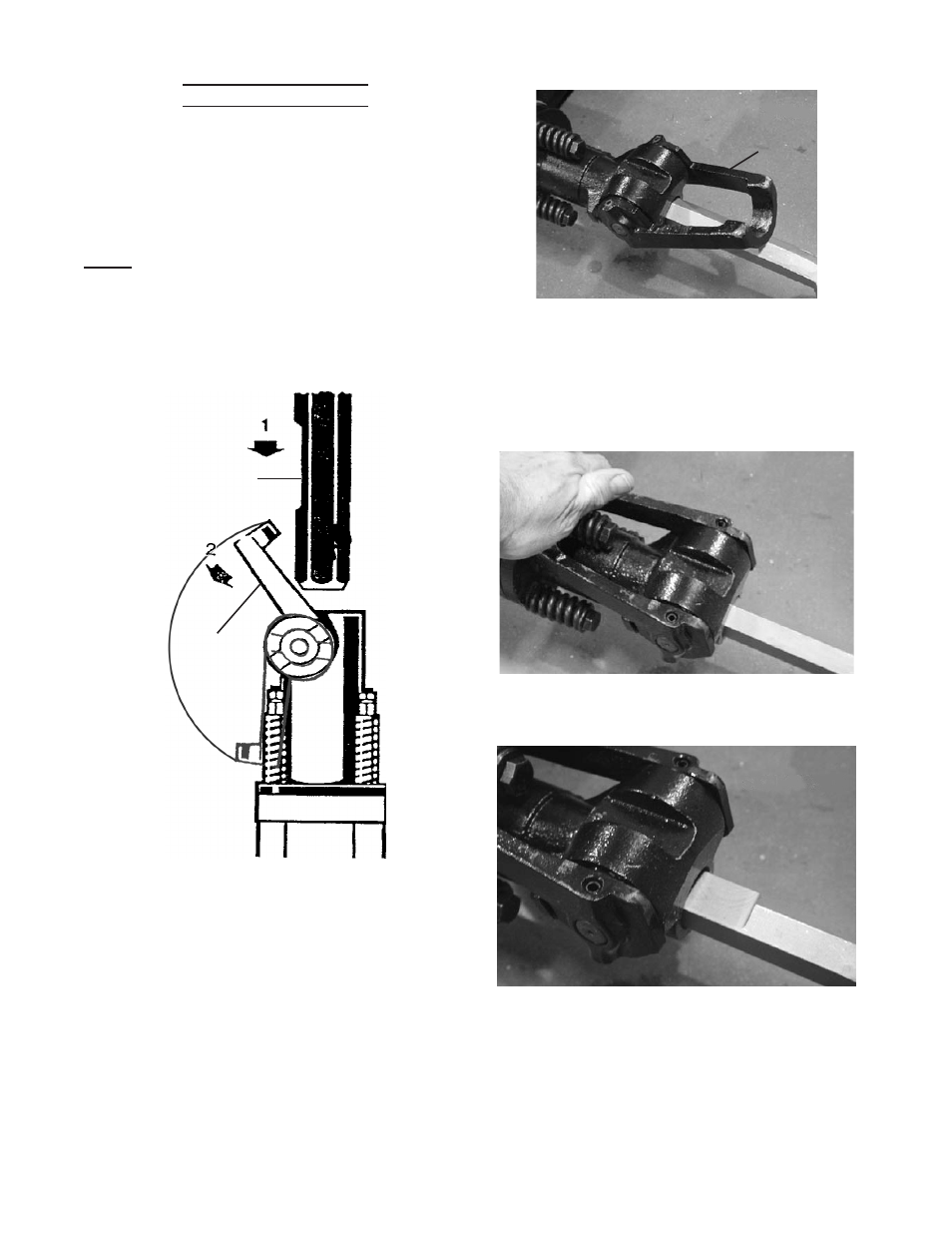

installing a chisel
Chisels come with or without collars.
Figure 1 shows installation of a chisel without
a collar (the included chisel is without a
collar). Figure 2 shows installation of a chisel
with a collar.
note: If the Chisel doesn’t slide in easily,
apply some grease on the loading end of
the Chisel.
without a collar:
Figure 1
Retaining
Ring
Flat
1. Pull the retaining ring to the side just
far enough to allow the Chisel to be
inserted, as shown in Figure 1. Please
note orientation of the flat on the Chisel.
Figure 1a
Retaining Ring
2. Position the retaining ring as shown in
Figure 1 and in Figure 1A. Then insert
the Chisel with the flat on top of the
receiver, as shown.
Slide the chisel in as far as it will go. 3.
Figure 1b
4. Pull the retaining ring back until it
touches the spring. See Figure 1B.
Figure 1c
5. When the Chisel is installed, there will
be approximately 1-3/4” of play along the
flat end of the shank. See Figure 1C.
Physically check that the chisel is secure
before operating.
