Page 15 For technical questions, please call 1-800-444-3353. SKU 96035

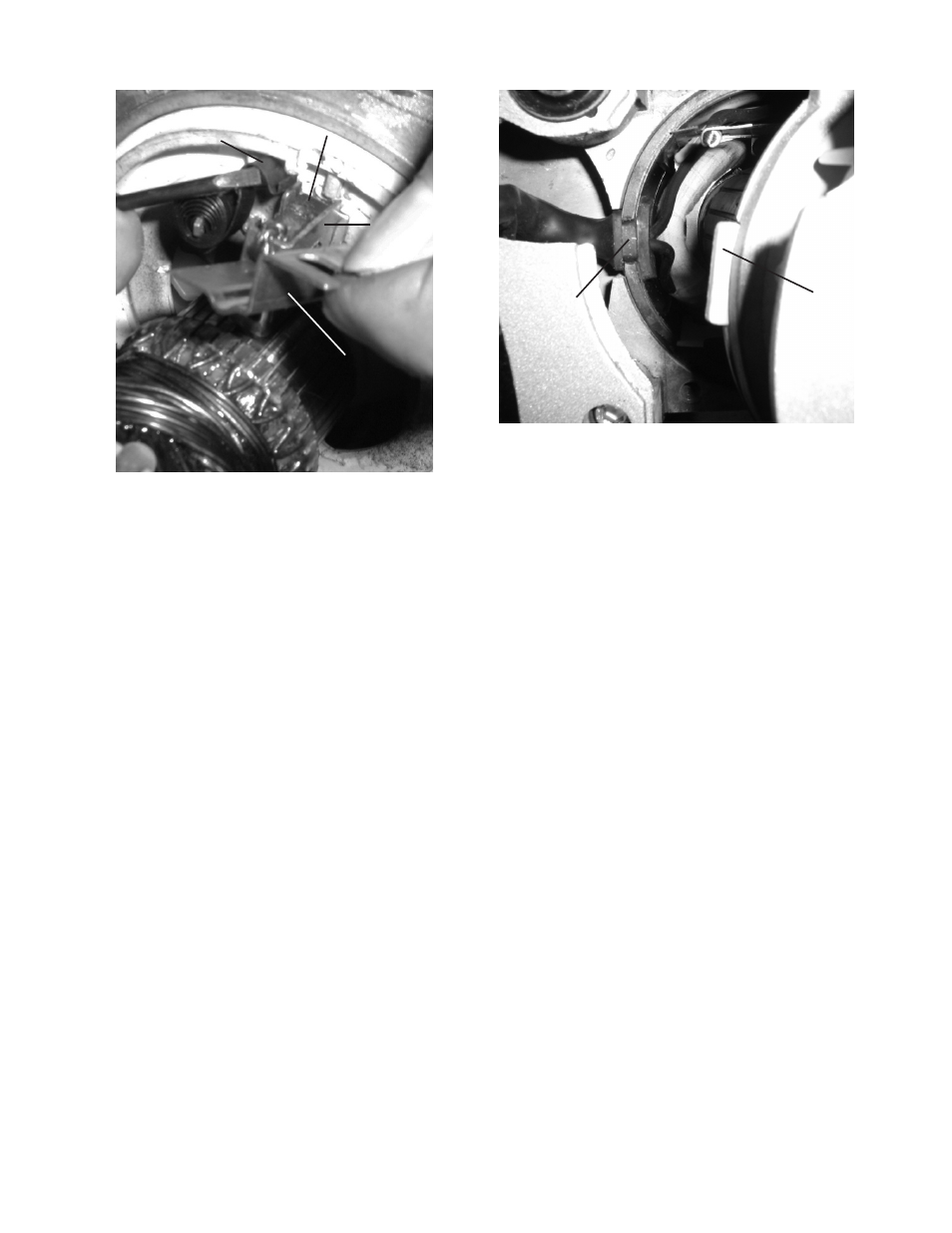

Figure 10
Carbon Brush
(52)
Carbon
Brush
Holder (53)
Wire Fixing
Board (50)
Carbon Brush
Holder Spring
7. Remove the Wire Board from the top of
the Carbon Brush Holder (53). Then use
tip of flat-edge screwdriver (not included)
to carefully pop the Holder’s spring off
the top of the Carbon Brush (51). See
Figure 10.
caution! 8. The spring must be clear of
the Holder lip to remove Carbon Brush.
Use the screwdriver to slide the Carbon 9.
Brush from the Holder. Then replace
with new Carbon Brush.
Snap spring back into place and use 10.
Screw to replace Wire Board.
To better access the second Carbon 11.
Brush, turn the Breaker Hammer over.
Repeat Steps 7 to 10 to replace second
Carbon Brush.
Figure 11
Gearbox
Tab
Housing
Slot
12. Once both Carbon Brushes have been
replaced, slide Gearbox shut.
caution: When closing Gearbox,
make sure tab along rim of Gearbox
aligns with the slot in the housing.
See Figure 11.
Use the four screws to fasten the 13.
Gearbox back into place. Then replace
Left Handle and fasten that into place
against Gearbox. Replace Cover and
fasten it into place using the Screws.
