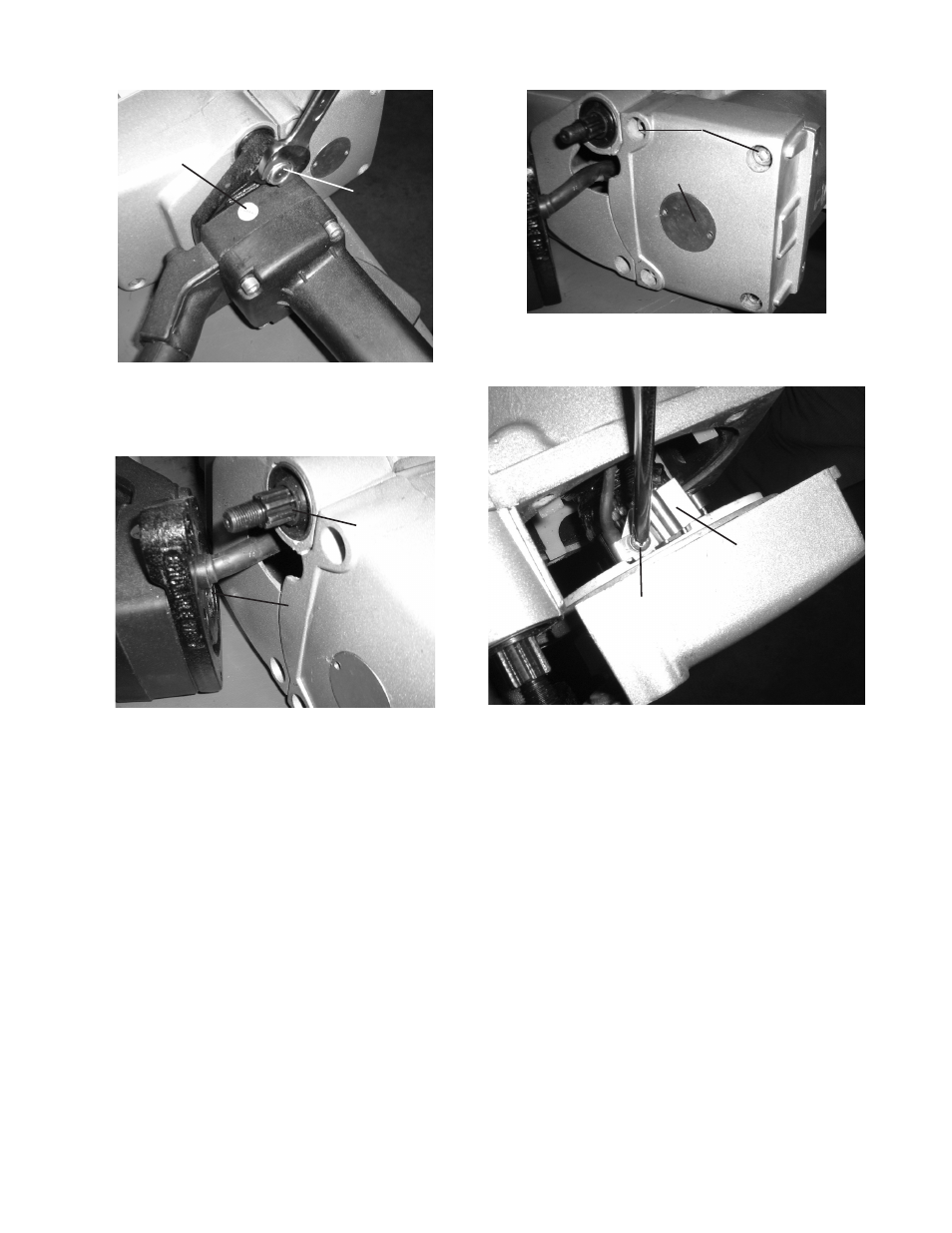

Figure 3
Nut (91)
Left Handle
(92)
Figure 6
3. Use a Wrench to loosen the Nut (91)
holding the Left Handle (92) in place.
See Figure 6.
Figure 7
Spline Axle
(27)
Left Handle
(92)
4. caution:
When removing Left Handle,
do not pull too far from Spline Axle (27)
Only wiggle loose until partially off. See
Figure 7.
Figure 8
Gearbox (23)
Screws (25)
5. Remove the four Screws (25) from the
side of the Gearbox 23. See Figure 8.
Figure 9
Wire Board
(50)
Screw (52)
6. Slide Gearbox open so that Wire Board
(50) is visible. Use screwdriver (not
included) to loosen Screw (52) from Wire
Fixing Board. See Figure 9.
