Rev 2 Nov/2002 KMD 550/850 Traffic Addendum
23
SYSTEM FAILURES
If failures are detected in the
TIS system, one of the fol-
lowing will displayed as
shown in Figures 32 and 33.

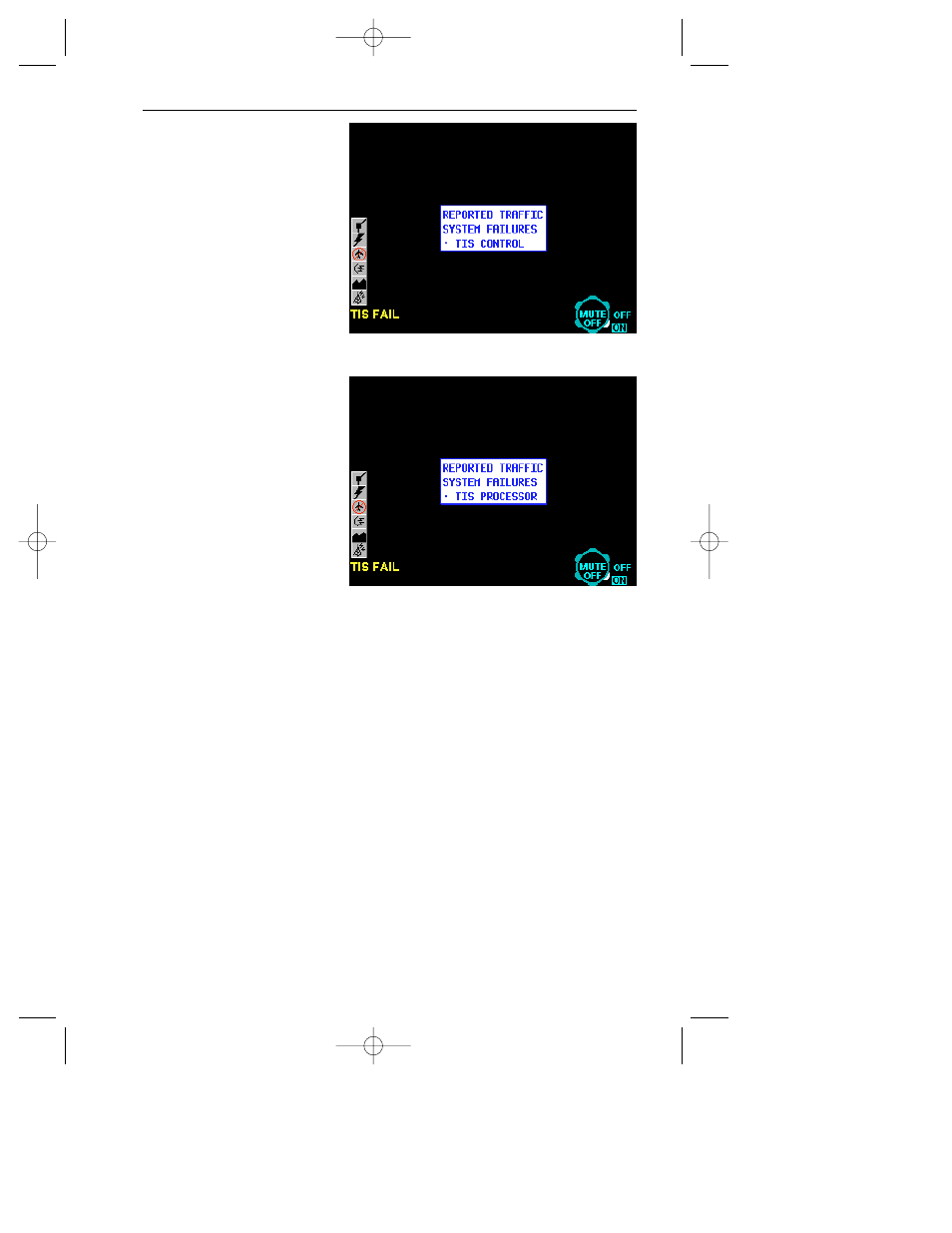

A display such as that shown
in Figure 32 indicates the TIS
processor (transponder) is
not receiving information
from the KMD 550/850.
A display such as that shown
in Figure 33 indicates the TIS
processor (transponder) is
not capable of performing
TIS functions. This could be
internal failures.
Figure 32
Figure 33
