OVERLAYING
TRAFFIC ON
WEATHER RADAR
DISPLAY
By pressing the OVLY Key a
display similar to Figure 27
will be displayed. Pressing
the TRFC soft key will toggle
between overlay on or off as
shown in Figure 28.
Pressing SAVE & EXIT will
return to the weather radar
display. The overlay status
will remain as saved until
changed again by pressing
the OVLY Key.

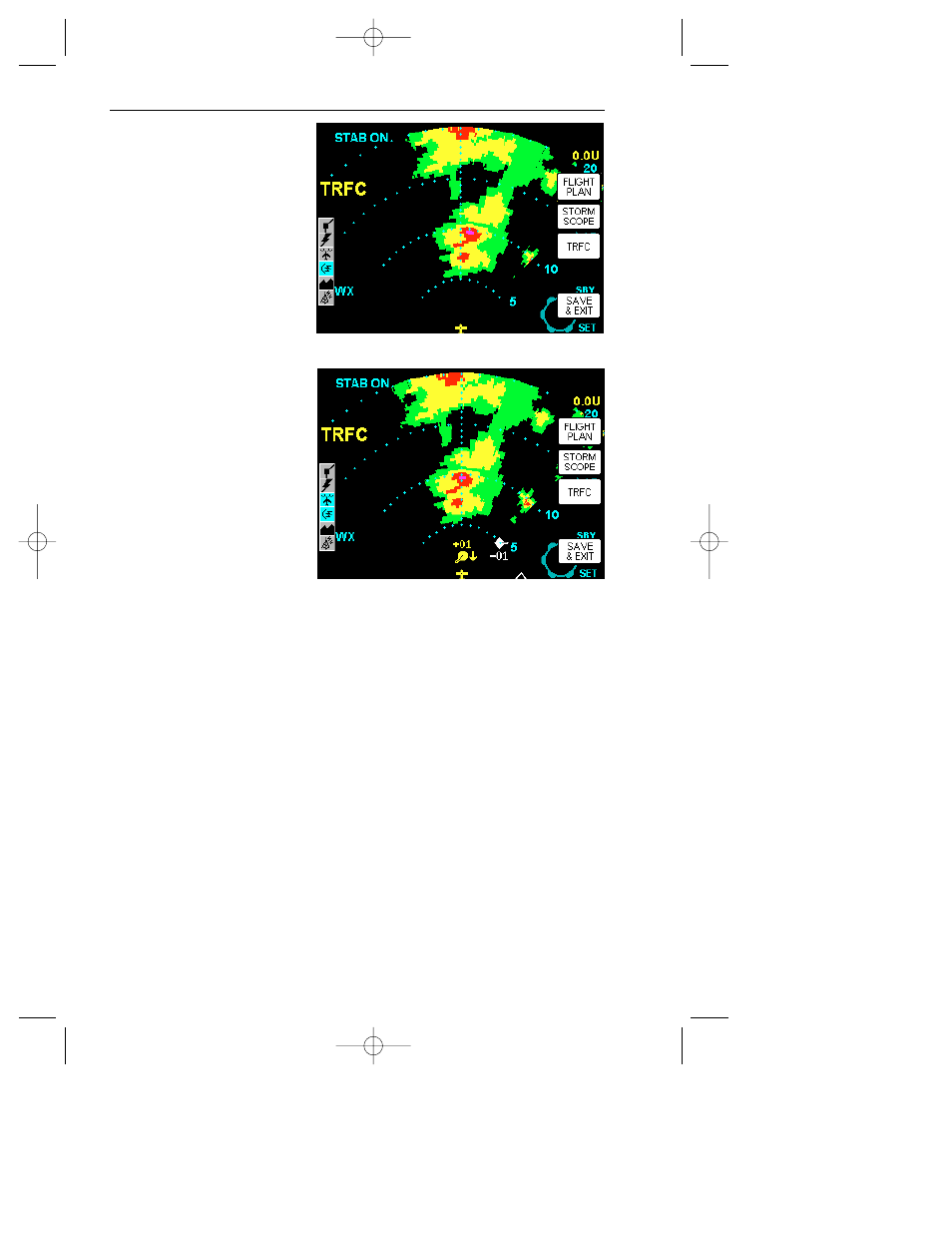

Figure 27
Figure 28
