KMD 550/850 Traffic Addendum
15

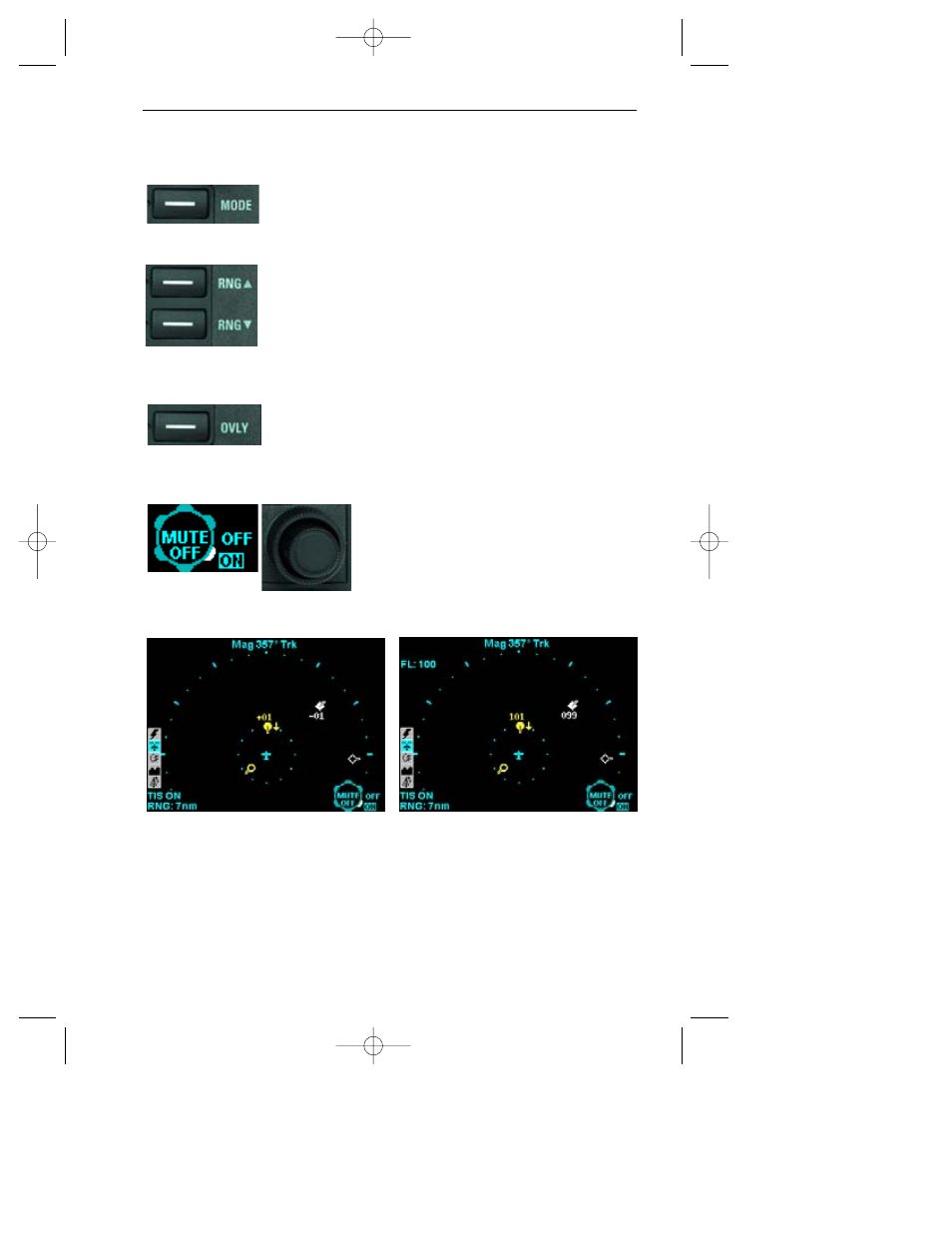

KMD 550/850 TRAFFIC PAGE (TIS)
OPERATIONAL CONTROLS
MODE - Toggles the altitude tag between relative or
absolute altitude as shown in Figures 16 and 17.
Operation in the absolute mode is limited to 15 sec-
onds.
RNG
▲/RNG▼ - Advances the indicator to the next
range. The upper button increases range, the lower
button decreases it. The selected range is displayed in
the lower left corner of the display with the inner range
ring always 2 nm. The RNG button labels will not be
displayed when their respective range limits are
reached.
OVLY - Allows selection of flight plan for overlay on
the traffic data. The GPS flight plan data can be over-
laid on the traffic display, if the desired data is avail-
able.
Outer Knob - Turns the TIS system ON
or OFF.
Inner Knob - The “TIS Unavailable”
audio message may be muted by turning
the inner knob. The audible TIS TAs are
not affected. The current state is annun-
ciated in the knob icon.
Figure 16
Relative Altitude Mode
Figure 17
Absolute Altitude Mode
