KMD 550/850 Traffic Addendum
Pressing the TRFC soft key
will toggle the overlay on as
shown in Figure 8. Pressing
the TRFC soft key again will
toggle the overlay off.
Pressing SAVE & EXIT will
return to the terrain display.
The overlay status will
remain as saved until
changed again by pressing
the OVLY Key.
OVERLAYING
TRAFFIC ON
WEATHER RADAR
DISPLAY
By pressing the OVLY Key a
display similar to Figure 9 will
be displayed. Pressing the
TRFC soft key will toggle
between overlay on or off as
shown in Figure 10.
Pressing SAVE & EXIT will
return to the weather radar
display. The overlay status
will remain as saved until
changed again by pressing
the OVLY Key.

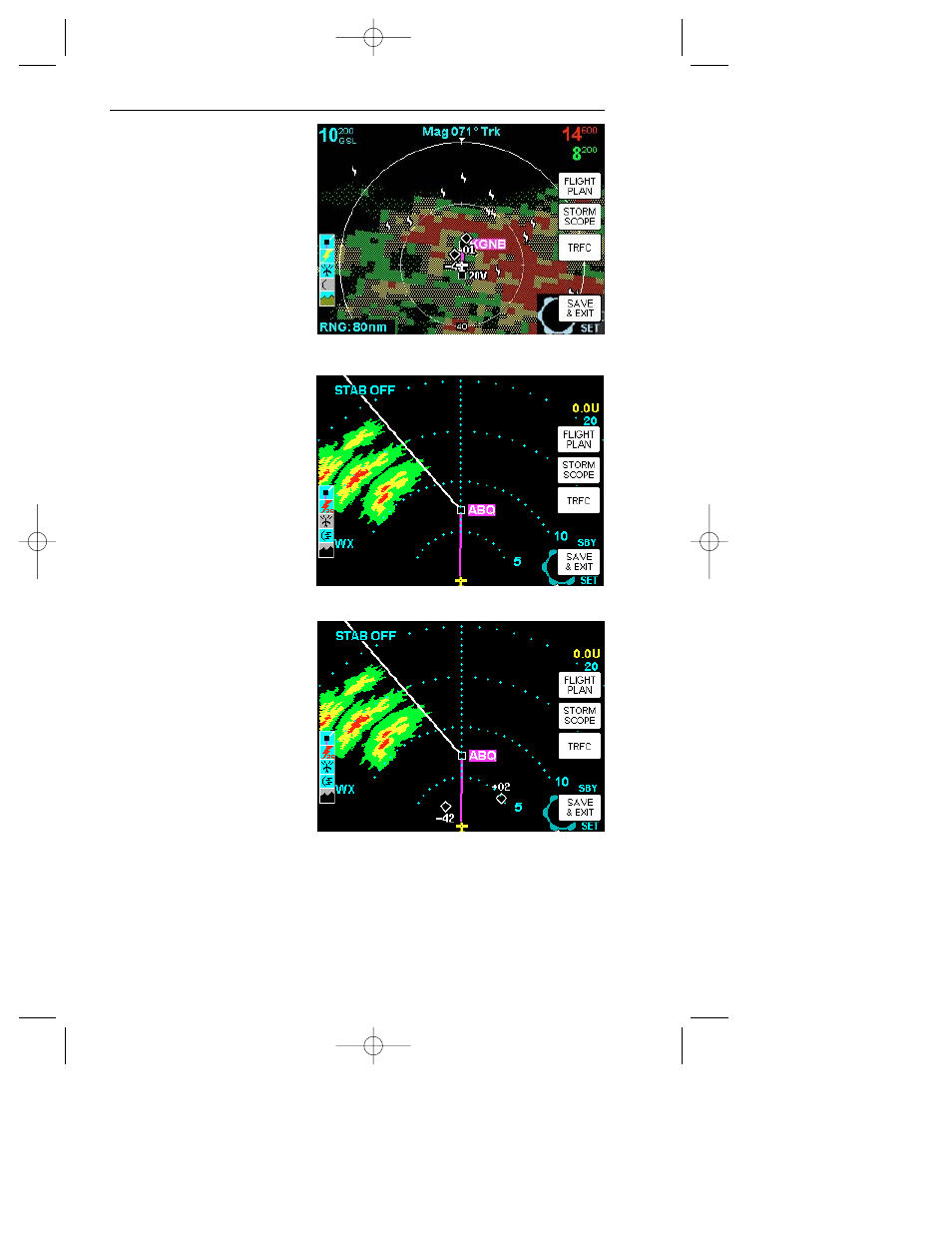

Figure 9
