KMD 550/850 Traffic Addendum

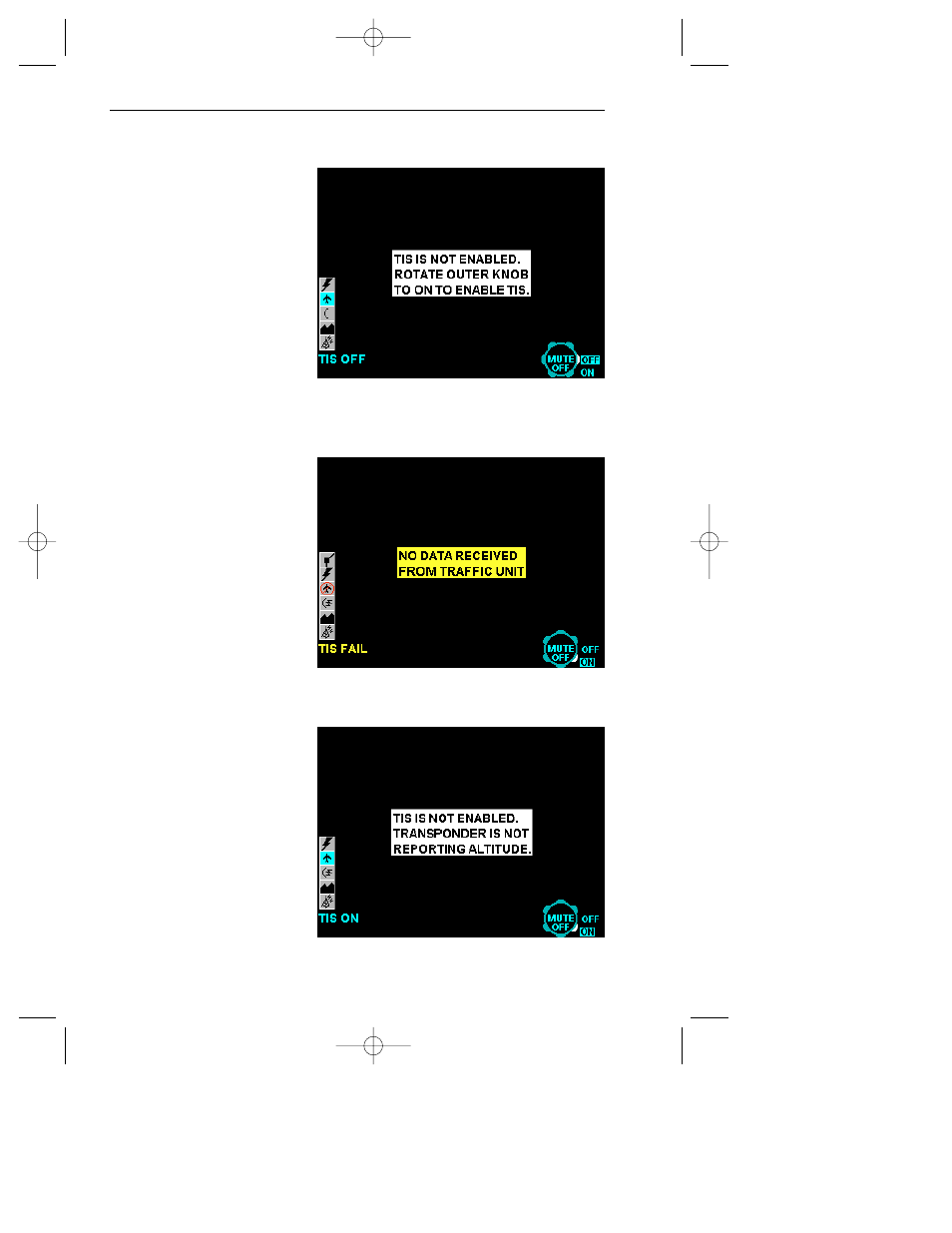

TIS SYSTEM FAULTS
SYSTEM OFF
If the TIS system is set to the
OFF position, Figure 29 will
be displayed.
NO DATA RECEIVED
If the KMD 550/850 is not
receiving data from the TIS
receiver then Figure 30 will
be displayed. This could indi-
cate that power is not being
provided to the TIS receiver
(e.g. a pulled breaker), the
TIS receiver is turned off, a
bad wiring connection
between the display and the
receiver, or a failed TIS
receiver.
TRANSPONDER IS
NOT REPORTING
ALTITUDE
If the transponder’s altitude
source has failed or the
transponder is put into a non-
altitude reporting mode,
Figure 31 will be displayed.
Figure 30
Figure 31
Figure 29
