KMD 550/850 Traffic Addendum
TIS TRAFFIC OVERLAY
OVERLAYING TRAFFIC ON MAP
DISPLAY

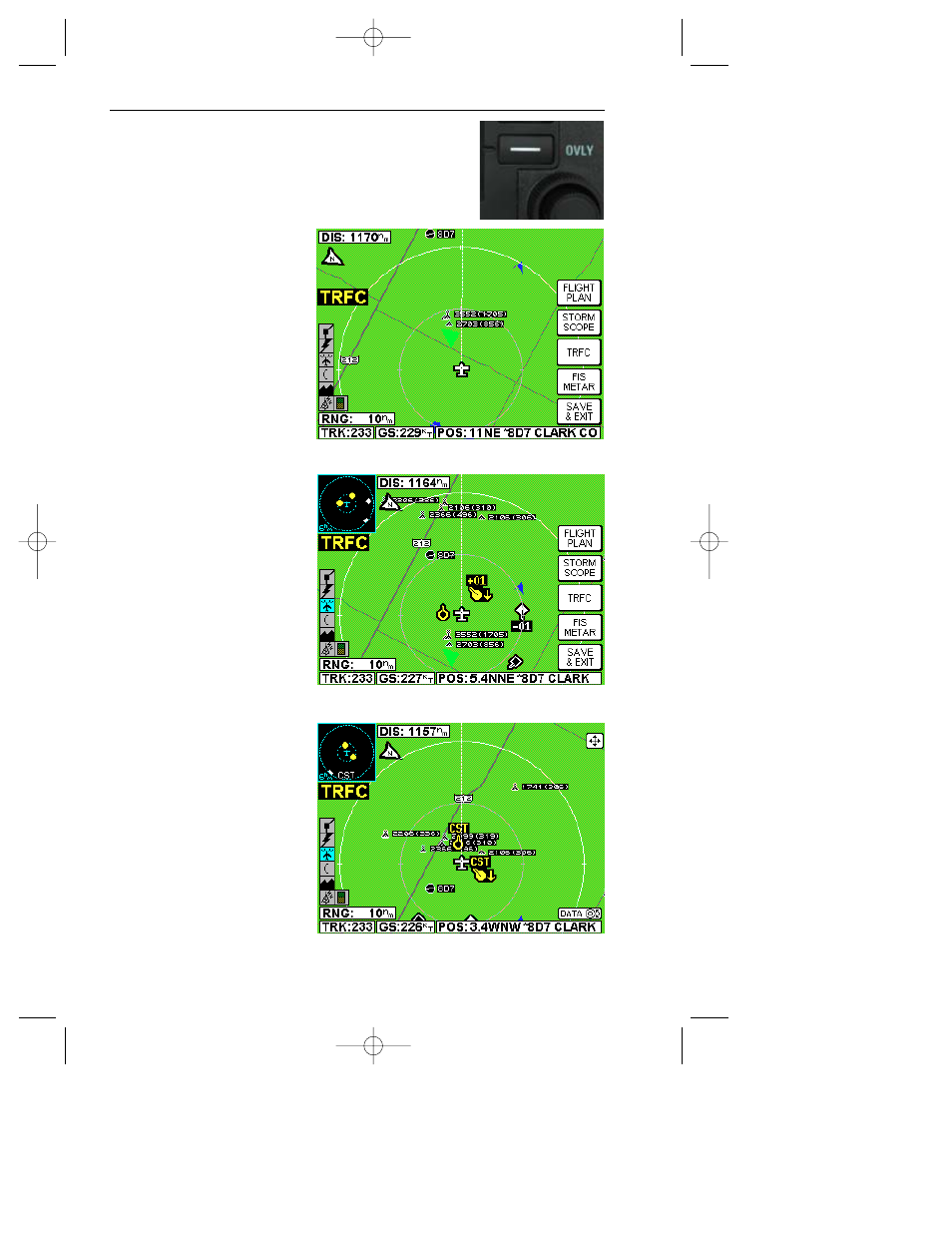

By pressing the OVLY Key a
display similar to Figure 21
will be displayed. Pressing
the TRFC soft key will toggle
between overlay on or off as
shown in Figure 22. A repre-
sentation of the Traffic Page,
with a fixed range of 6 nm,
will be displayed in the upper
left of the Map display when
traffic data is overlaid and
only if the Map is set to
Track-Up. If the Map display
is set to North-Up, this small
Traffic display will not be
shown. Intruders will also be
displayed on the map itself
up to the range setting
selected on MAP Setup
Page.
Pressing SAVE & EXIT will
return to the map display.
The overlay status will
remain as saved until
changed again by pressing
the OVLY Key.
COAST MODE ON
OVERLAY
If the system goes into Coast
Mode with traffic overlayed
on the Map Display, a display
similar to Figure 23 will be
displayed.
Figure 21
Figure 22
Figure 23
