37
TRANSPONdER/ TCAS CONTROL UNIT; CTA 81A; CTA
81B, CTA 81C, CTA 81d

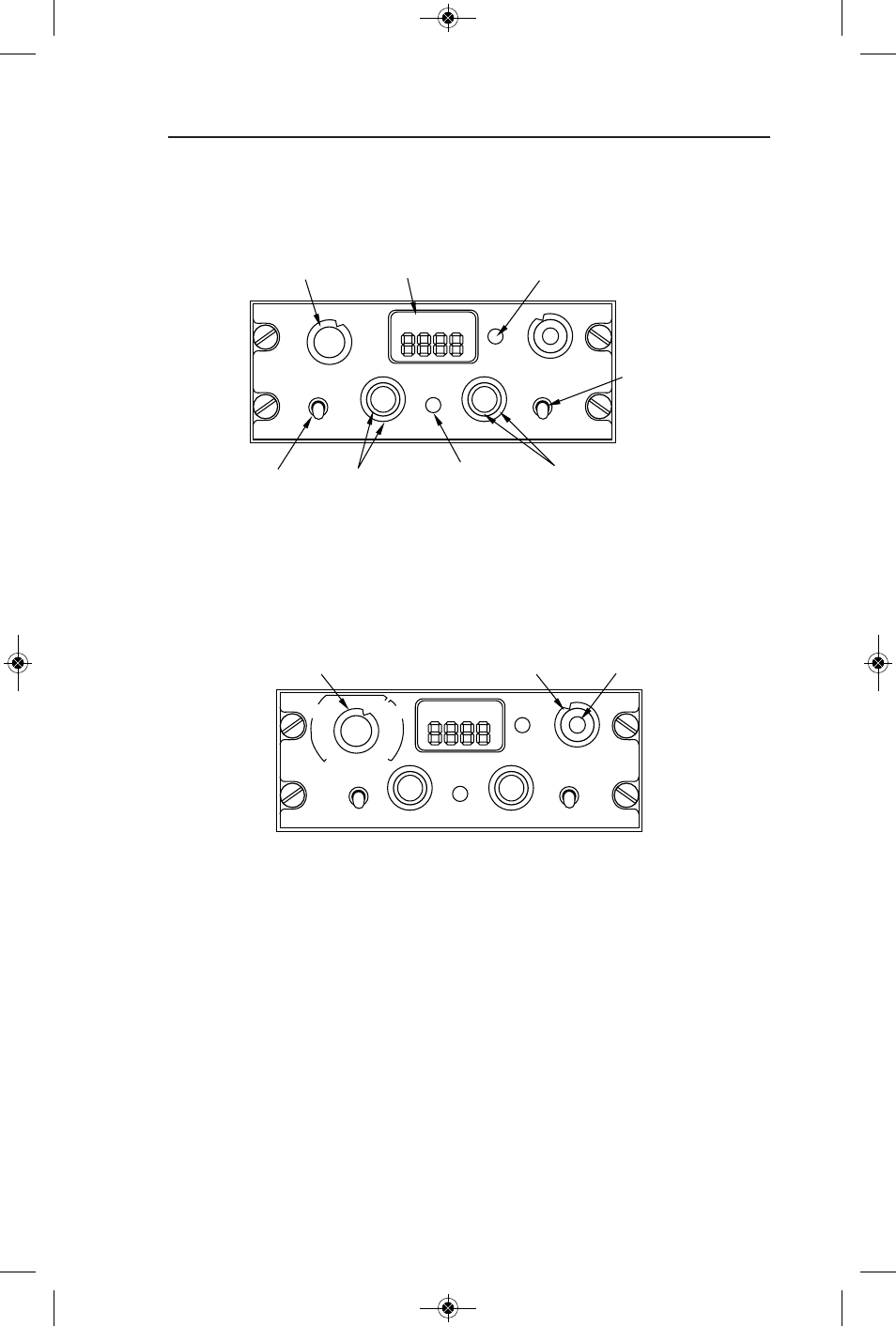

CTA 81A & D Dual Mode S/TCAS Control Unit, CTA 81C Single
Mode S/TCAS Control Unit (CTA 81A shown)
CTA 81B Mode S/ATCRBS/TCAS Control Unit
CTA 81A, CTA 81B CTA 81C ANd CTA 81d CONTROLS
ANd dISPLAYS
the Cta 81 ( ) Control Unit is the control for both the tCaS system
and transponder. the Cta 81a/D controls two Mode S transpon-
ders. the Cta 81B controls one Mode S transponder and one
atCrBS arInC 572 transponder. the Cta 81C controls one
Mode S transponder.
Note: Controls vary depending on CTA 81 ( ) configuration installed.
Control functions same as typical unit shown.
Rev 3 4/13 CAS 67A/67B ACAS II Pilot’s Guide
Controls and Displays
ACT 12 R
1
STBY
ALT OFF ALT ON
TA
TA/RA
ATC
2 IDENT
ATC
TEST
ATC
FAIL
FL
TCAS RANGE
3
5 10
15
ABOVE
NORM
BELOW
FUNCTION
SELECTOR
DISPLAY
WINDOW
FAIL
LAMP
TRANSPONDER
SELECTOR
CODE
SELECTOR
KNOBS
IDENT
(PUSHBUTTON)
ABOVE/
BELOW
KNOBS
CODE
SELECTOR
KNOBS
ACT 12 R
NO
STBY
ATC 1 ON
TA TA/RA
ALT
OFF
IDENT
ATC
TEST
ATC
FAIL
FL
TCAS RANGE
ABOVE
NORM
BELOW
3
5 10
15 ON ATC 2
STBY
TEST
RANGE
SELECTOR
FLIGHT LEVEL
(PUSHBUTTON)
FUNCTION
SELECTOR
