PS 578A TRANSPONDER/TCAS CONTROL UNIT

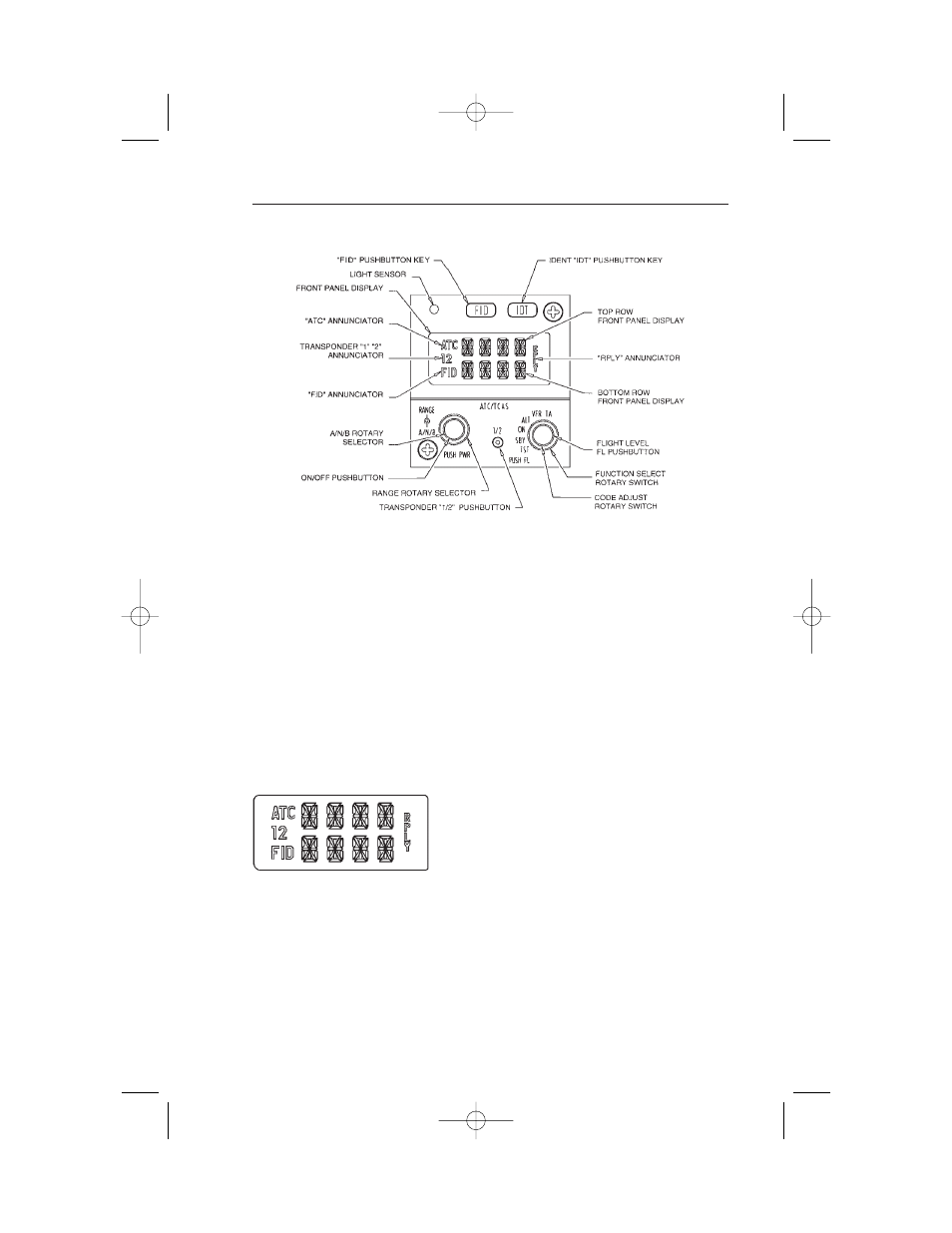

PS 578A Single or Dual Mode S/TCAS Control Unit (Dual Unit shown)
PS 578A CONTROLS AND DISPLAYS
The PS 578A Control Unit is the master control for both the TCAS sys-
tem and transponder. The PS 578A will also display the selected 4096
ATC code and current mode of operation in the display window. Versions
are available to control one or two transponders. A “Fail” annunciation
indicates failure of the selected transponder, antenna or control data.
Note: If the PS 578A is interfaced to a MST 67A Mode S transponder
and the MST 67A senses a failure, a failure annunciation will be shown.
A maintenance check should be performed.
The Display Window Displays ATC code
selection, Flight ID (FID) selection, whether
transponder #1 or #2 is active, transponder
mode, transponder ident, own aircraft flight
level (in TEST), TCAS mode, TCAS range
and TCAS above, below or normal vertical
display limit selected.
