24 Vdc ADC Burner Manual

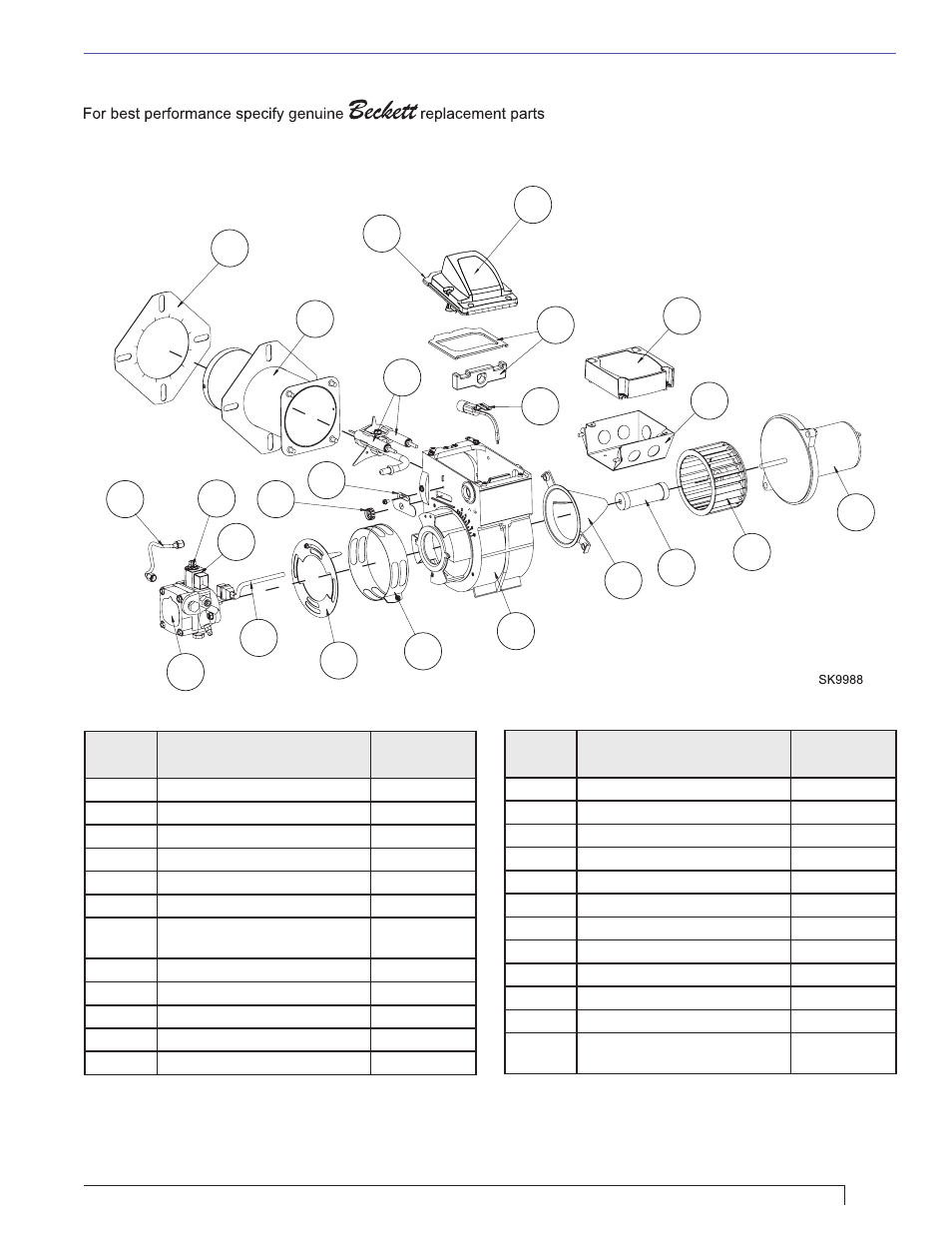

Replacement Parts
Section: Replacement Parts
1
2
3
4
5
6
7
8
9
12
10
11
13
14
15
16
18
19
17
21
20
22
23
Illustration
#
Description
Part#
1
DC Motor
21773U
2
Blower Wheel
2999U
3
Coupling
2140501
4
Air Guide
31231U
5
Burner Housing - Black
5874BKU
6
Air Band
5151501
7
Air Shutter - 4 Slot
Air Shutter - 8 Slot
3709
3494
8
Cord set
21807
9
Pump (CleanCut)
2184407U
10
Valve Stem
21877U
11
12 Volt Coil
22245U
12
8” Copper Tubing
5394
Illustration
#
Description
Part#
13
Escutcheon Plate Spline Nut
3666
14
Escutcheon Plate
3493
15
Electrode Kit over 3-5/8”
578731
16
Cad Cell Detector
7492/7006U
17
Igniter Gasket Kit
51411
18
4X4 Wiring Box Kit
5770
19
Control Kit
7559x-xxxxU*
20
Igniter Assy with baseplate
5218501U
21
Igniter only
5218503U
22
Air Tube Ass’y
Specify
23
Flange Mounting Gasket
Specify
Not
Shown
Tune-up Kit for 30 & 35 Air
Tube Lengths
578730
* ‘X’s indicate timing options. Contact Beckett for available part numbers.
