Belt Drives EVO-10STF - Manual (Page 2)

8. Install motor plate and tighten bolts to motor and
transmission. Check clearances between transmission
plate and frame, (shim if necessary, plug fit). Torque
all bolts down to HD specifications. (Fig. 3)

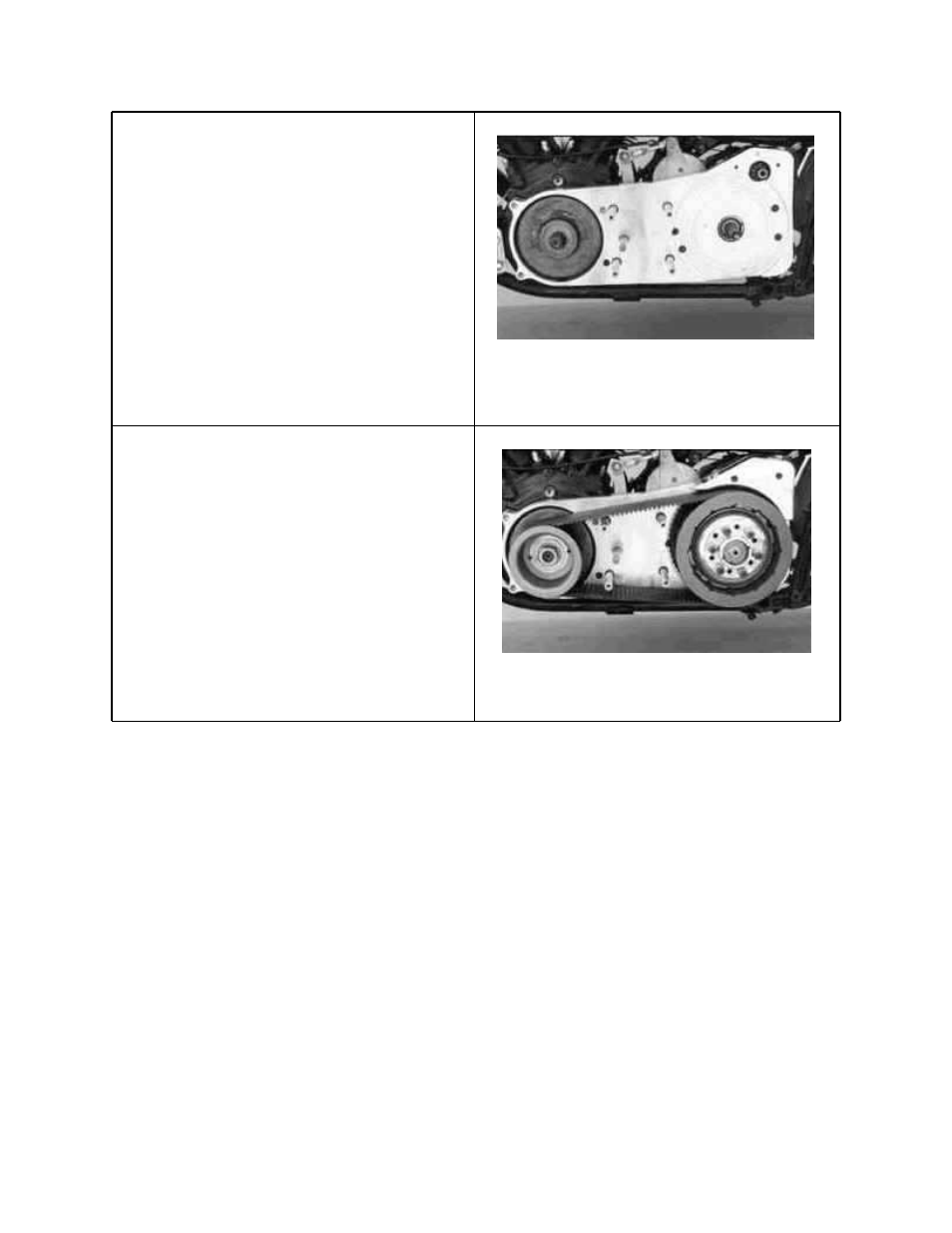

Fig. 3
Install motor plate, you can install hexagon extensions at this
time and check for proper movement of starter pinion gear.
9. Check to be sure that mainshaft woodruff key fits
properly into the clutch hub slot. Turn mainshaft so
that the slot faces 9 o’clock for installation. Shim front
pulley if necessary then install front pulley, rear pulley
assembly and belt at the same time. Install engine nut
and stock HD hub nut with seal (not supplied with kit)
but do not tighten at this time.
(Fig. 4)
FIg. 4
Install both pulleys and belt at the same time, check all
clearances.
10. Rotate the motor by hand to be sure belt tracks straight and away from motor. Be sure that belt is not
dragging on any part of the motor plate. If installation is correct then remove engine and transmission nut, apply
11. Bolt starter to motor plate, grease starter housing bushing and install over starter gear. Tighten front bolt first
then lift up on housing while tightening rear bolt. This should allow proper alignment of starter gear.
2
red Loctite®, reinstall and torque to HD specifications.
