OFNA Racing LD3 Pro User Manual

Page 29

37390
2x 10.8 mm pin

Driver Nut

4mm
Nylon Nut

Antenna pipe

Inner Sponge

Super Glue

*Insert the inner Sponge before
assembly.

*Insert wheel into tire.

(FRONT ASSEMBLY)

(REAR ASSEMBLY)

Radial Body

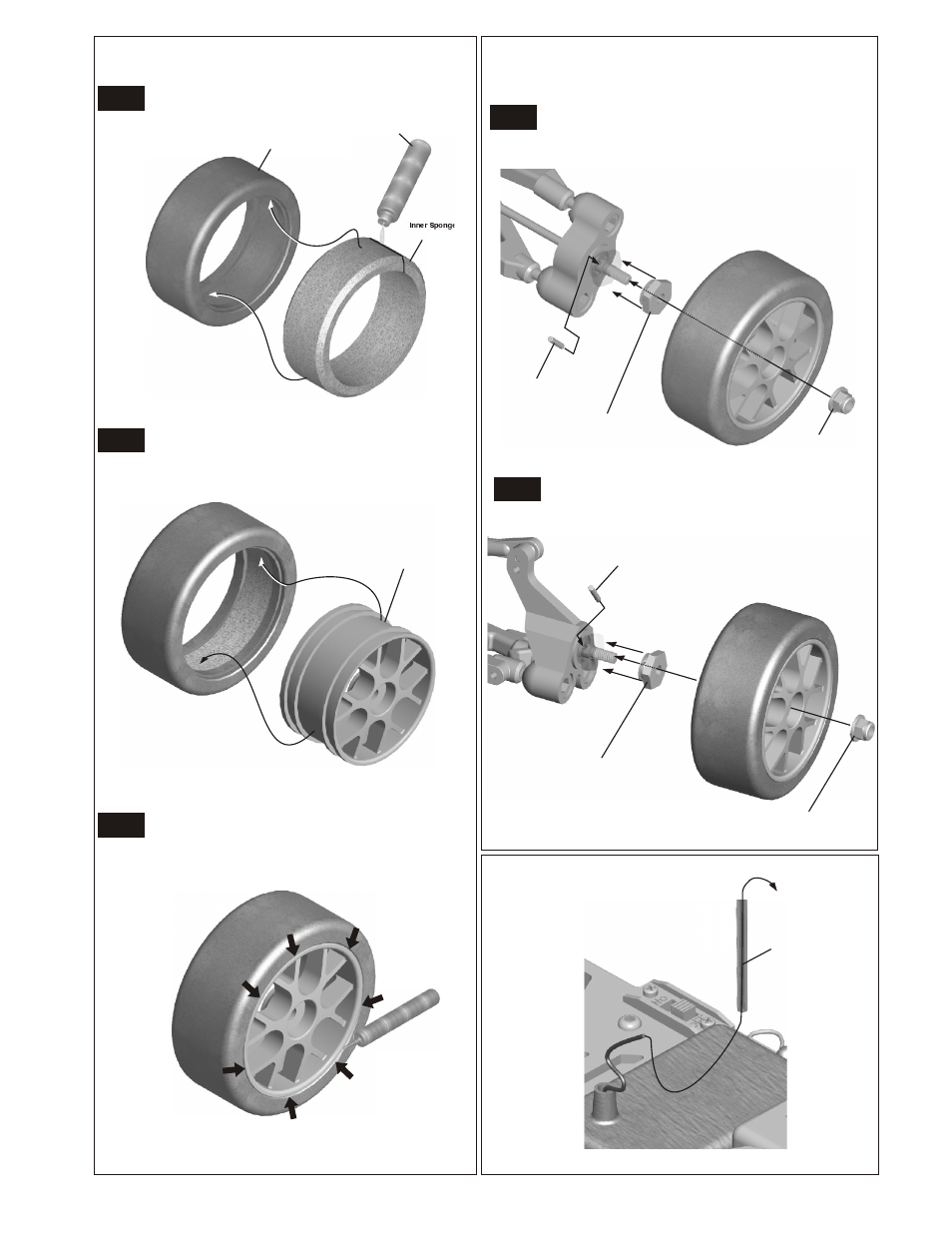

ASSEMBLY OF THE TIRES AND WHEELS

ASSEMBLY OF THE WHEELS ONTO FRONT
KNUCKLE ARM AND REAR HUB

PLUG ANTENNA PIPE INTO ANTENNA POST

Step 1

Step 2

Step 3

87660

87610 -White

“Y” Spoke Wheel

37590 - PLASTIC

38328 - Alum. W/ Oring

10986

30560

*Apply instant cement.

MOLDED FOAM INSERTS
87658 - BLUE
87659 - YELLOW

Front Bumper

Front Bumper
Top Plate

Front Bumper
Post Tube

94019
M3x10mm
Flat Head
Hex Screw

94004
M3x12mm
Screw

94003
M3x10mm
Screw

M3x12mm
Screw

Body Holder

Body Pin

39320

37410

* Insert body pins into body holder
to the desired height.

94002
M3x8mm
Screw

Body Post
(Rear)

Body Post
(Front)

Foam Bumper

ASSEMBLY OF THE FRONT BUMPER

38291

39320

38294

39320

ASSEMBLY OF THE FRONT BUMPER TOP PLATE

ASSEMBLY OF THE FRONT BODY POST

ASSEMBLY OF THE REAR BODY POST

39320 PARTS
