Page 17: Right side) (left side)

Step 1

Step 2

Step 3

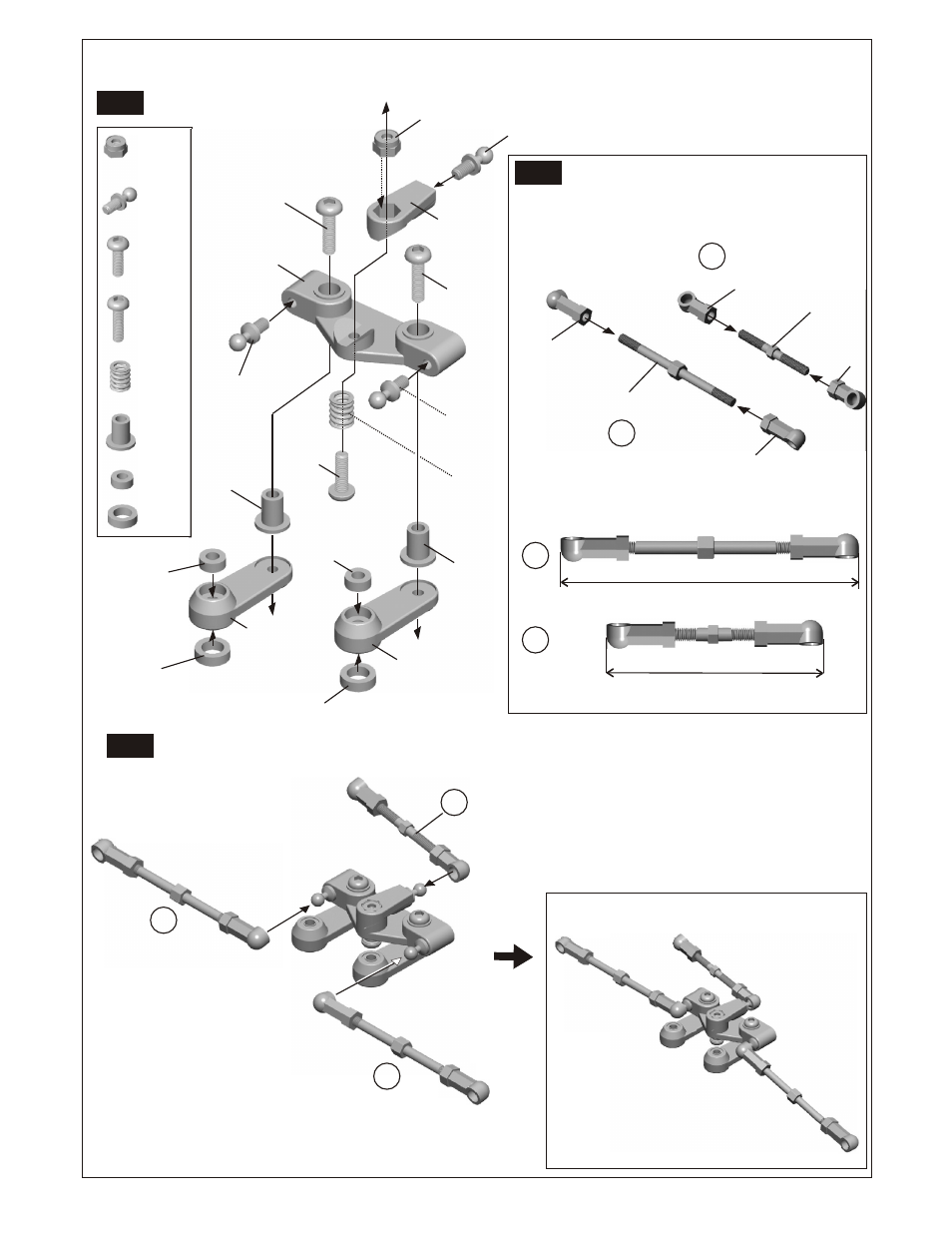

ASSEMBLY OF THE SEVRO SAVER

94041
M3
Nylon Nut

37360

38288

38281

38280

38289
Servo Saver

38276

38277

36742

4mm
Ball & Socket

37360
4mm
Ball & Socket

37650
4mm
Ball End

3x36mm
Turnbuckle

3x40mm
Turnbuckle

37650
4mm
Ball End

Steering Rod

*Made two steering rod
for left and right hand side.

Steering Servo Rod

37650
4mm
Ball End

94003
M3x10mm
Screw

94004
M3x12mm
Screw

Servo Saver
Spring

Servo Saver
Bushing

3x6 mm
Brass Bushing

3x6x2.4 mm
Brass Bushing

3x6x2.5 mm
Brass Bushing

5x8 mm
Brass Bushing

5x8x2.5 mm
Brass Bushing

Approx 54 mm

Approx 57 mm

* Snap on steering rod to
4mm ball & socket.

The servo saver after assembly.

* Use the long ball end for both
steering rod and steering servo rod.

*Push 2 ball bearing into
rear wheel hub as shown.

Step 1

Step 2

ASSEMBLY OF THE REAR WHEEL HUB

ASSEMBLY OF THE REAR SUSPENSION ARMS

10mm
Hex Screw

5x11x4mm
Ball Bearing

10x15x4mm
Ball Bearing

Rear Wheel
Hub

Push

8mm
Steering Ball

8mm
Steering Ball
Washer

39150

37430

38266

38267

37450

39140

39140

39141

Rear Wheel
Axle Shaft

94035
3x8 mm
Set Screw

3x8 mm
Set Screw

94004
M3x12 mm
Screw

M3x12 mm
Screw

6 mm
Ball and Socket

6 mm
Ball & Socket

REAR UPPER ARM

37100

37210

37370

Upper Arm
Plastic Rod End

3x15mm

Turnbuckle

(Right Side)

(Left Side)

*Notice the direction
of the steering ball washer.

Approx 46 mm

Assembly of the right and left-side are the same.

* Take the upper arm plastic
rod end from shock plastic tree.

Right

Left
