Page 19

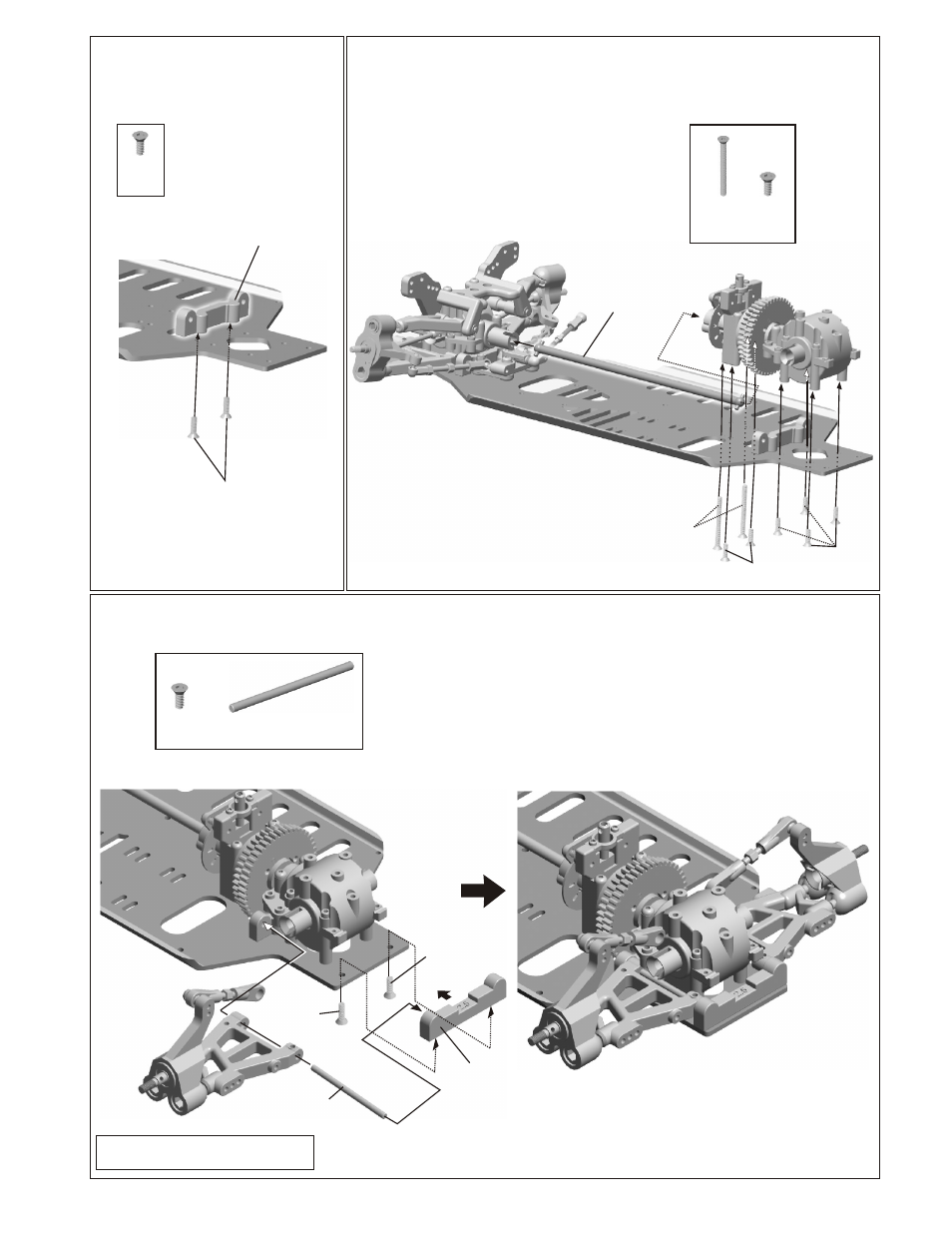

ASSEMBLY OF THE TWO SPEED
AND REAR GEAR BOX ONTO CHASSIS

ASSEMBLY OF THE REAR ARM HOLDER

ASSEMBLY OF THE ARM
HOLDER ONTO CHASSIS

94019
M3x10mm
Flat Screw

M3x10mm
Flat Screw

94019
M3x10mm
Flat Head
Hex Screw

94024
M3x30mm
Flat Screw

94024
M3x30mm
Flat Head
Hex Screw

94019
M3x10mm
Flat Screw

50mm
Lower Arm Shaft

51mm
Lower Arm Shaft

Center Drive Shaft

Arm holder
(Rear/Front)

Arm Holder
(Rear / Rear)

38263

38264

38262

38263

* Insert the center drive shaft
before assembly the rear gear onto
chassis.

Assembly of the right and left-side are the same.

1.5 Degree

0 Degree

ASSEMBLY OF THE SEVRO SAVER
ANDSTEERING RODS

ASSEMBLY OF THE FRONT BLOCK ONTO CHASSIS

94041
M3
Nylon Nut

38275

38319

38263

38263
Lower Arm Holder for 0 and 1.5 and 2.5 degree.

38262

38263

94018
M3x5mm
Flat Head
Hex Screw

M3x10mm
Flat Head
Hex Screw
94019

M3x10mm
Flat Head
Hex Screw

94019
M3x10mm
Flat Head
Hex Screw

M3x10mm
Flat Head
Hex Screw

94018
M3x5mm
Flat Head
HexScrew

M3x10mm
Flat Head
Hex Screw

M3x10mm
Flat Screw

37360
4mm
Ball & Socket

50mm
Lower Arm Shaft

Servo saver
Screw

Chassis, Stock RTR

Front Gear Box Assembly.

Arm Holder
(Lower/Rear)

Arm Holder
(Front/Lower)

*Insert the drive shaft before assembly.

Assembly of the right and left-side are the same.

0 Degree

Note: Use Lock-tite

94019
