OFNA Racing LD3 Pro - Manual (Page 26)

37967
P3
O-Ring
(2 pcs)
P12 O-Ring
38331 - Gray
Adjust Nut
37650
4mm
Ball End
*Use a little shock oil to
lubricate o-Rings before
screwing on adjusting nut.
Piston
Shock Shaft
Shock Oil
M3x12
Screw
M3x12
Screw
38329
Gray
6mm Alum.
Ball & socket
(Short)
38282
6mm Alum.
Ball & socket
(Long)
37360
4mm
Ball & socket
37360
4mm
Ball & socket
*Pull down piston and pour
oil into shock cylinder. *Remove air bubbles by slowly
moving piston up and down.
Pressure Top
Ball End
( Short)
Shock Spring
Spring Holder
SHOCK Cap
2mm E-Ring
37967
C-Ring
37100
Washer
(Block)
ASSEMBLY OF THE ALUMINUM THREADED BODY SHOCKS
NOTE: LEXAN SHOCK ASSEMBLY, SEE APPENDIX PAGES
FlLLING THE SHOCKS WITH OIL
ASSEMBLY OF THE FRONT SHOCK INTO
SHOCK MOUNT ASSEMBLY OF THE FRONT SHOCK INTO
SHOCK MOUNT
ASSEMBLY THE SHOCK SPRING
Step 1 Step 2
Oil Oil Oil
Oil
37965 - Alum Threaded Shock Body.
39030 - Lexan Shock Body.
38325
37100
37966
37080
38330 - Gray
37100
38326 - Black (std)
37100
* Use the No.2 hole piston
from shock plastic tree.
* Insert the o-ring into
the groove of the adjust nut.
* Use the short ball end .
* The C-Ring must fit into
the groove.
* Use the short shock
ball end.
* Snap On.
* Snap On.
38469 - Spring Set
38470 - Blue (s)
38471 - Yellow (m)
38472 - White (h)
94003
M3x10mm
Screw
3x8mm
Washer
Muffler Stay
Silicone Tube
Muffler
Nylon Strap
8 inch
39474
Air Filter
Sponge
39473
Air Filter
Holder
Small Strap
Fuel Tube
*Connect to fuel tank
pressure nipple.
*Connect to fuel nipple.
*Connect to carbureter.
*Connect to muffler
pressure nipple.

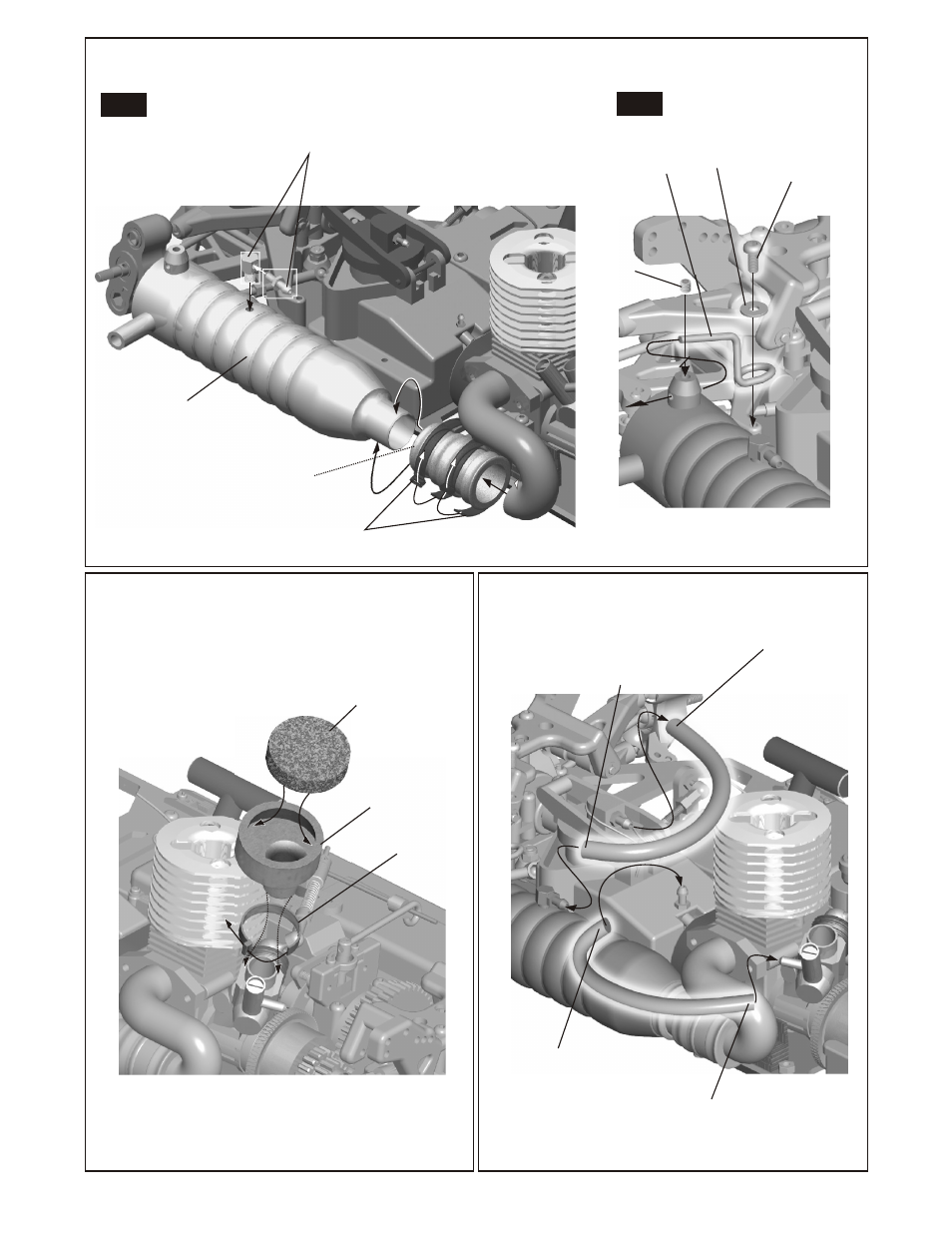

ASSEMBLY OF THE MUFFLER
ASSEMBLY OF THE FUEL TUBE AND
PRESSURE TUBE INSTALLATION OF AIR FILTER
Step 1 Step 2
90012
Pressure
Nipple
* Insert the filter into air filter holder.
Apply filter oil to the sponge before
use.
10063
38320
38327
10179 - Blue
10178 - Yellow
94034
4x4mm
Set Screw
