Assembly of the wing assembly of the back mirror, Assembly of the mounting – OFNA Racing Jammin X1 RTR User Manual
Page 25
55
21
..........X2
..........X2
..........X2
#94004
3x12mm
Hex Screw
#94001
3x12mm
Hex Screw
#94001
3x5mm
Hex Screw
#94001
3x5mm
Hex Screw
#40544
Body
#40539
3x5mm
Back Mirror
Hole for engine.
Hole for fuel tank.
For the exhaust outlet
of the muffler.
#31159
Body Clips
Body Clips
Mounting
40542
Body Mount
#40083
Wing
Drill two 7mm holes for
mounting.
24mm
24mm
#40542
Countersunk
Plastic Washer
94041
M3
Nylock Nut
#94041
M3
Nylock Nut
56

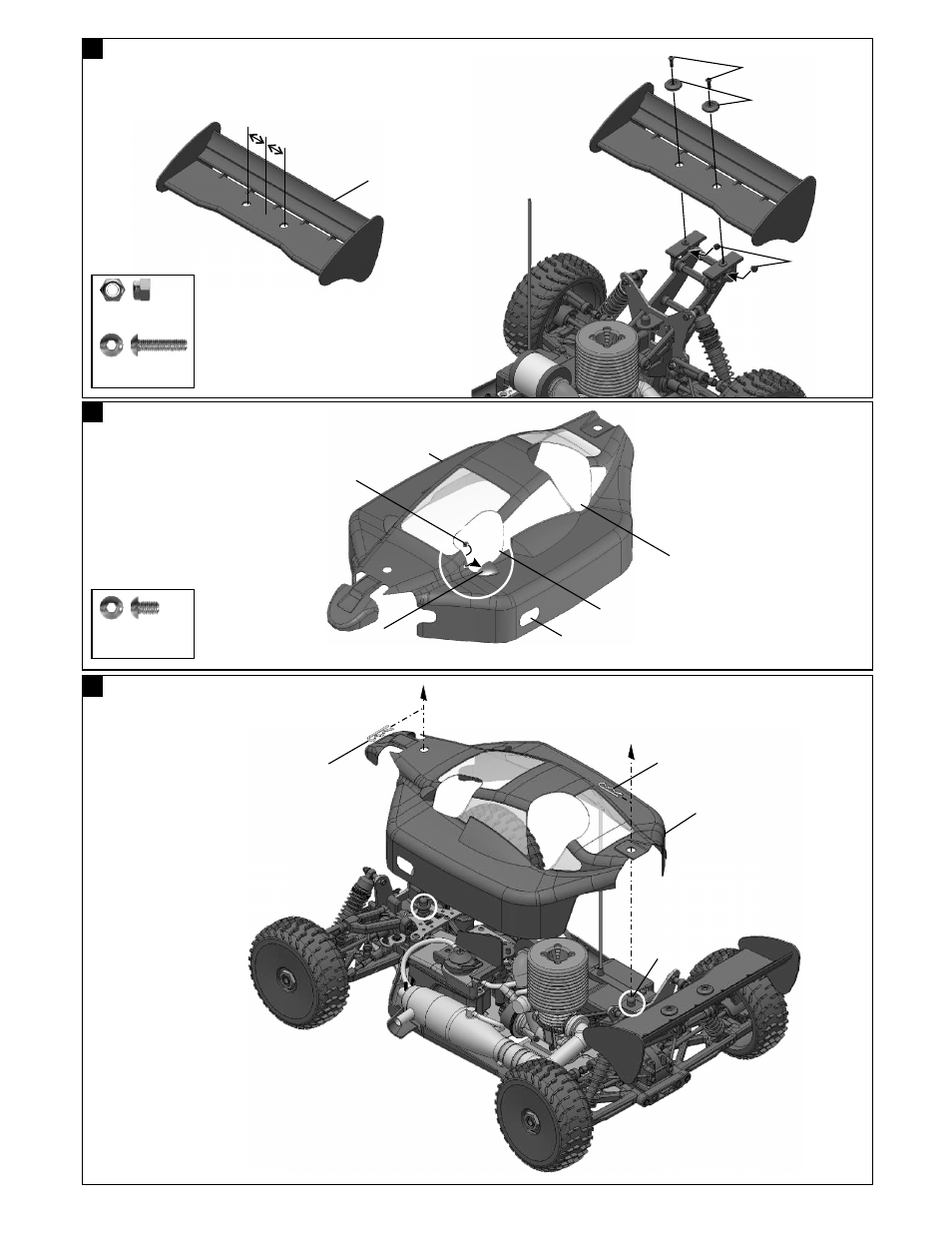

ASSEMBLY OF THE WING
ASSEMBLY OF THE BACK MIRROR
57
ASSEMBLY OF THE MOUNTING
