Step 1 Step 2
..........X2
..........X2
..........X1

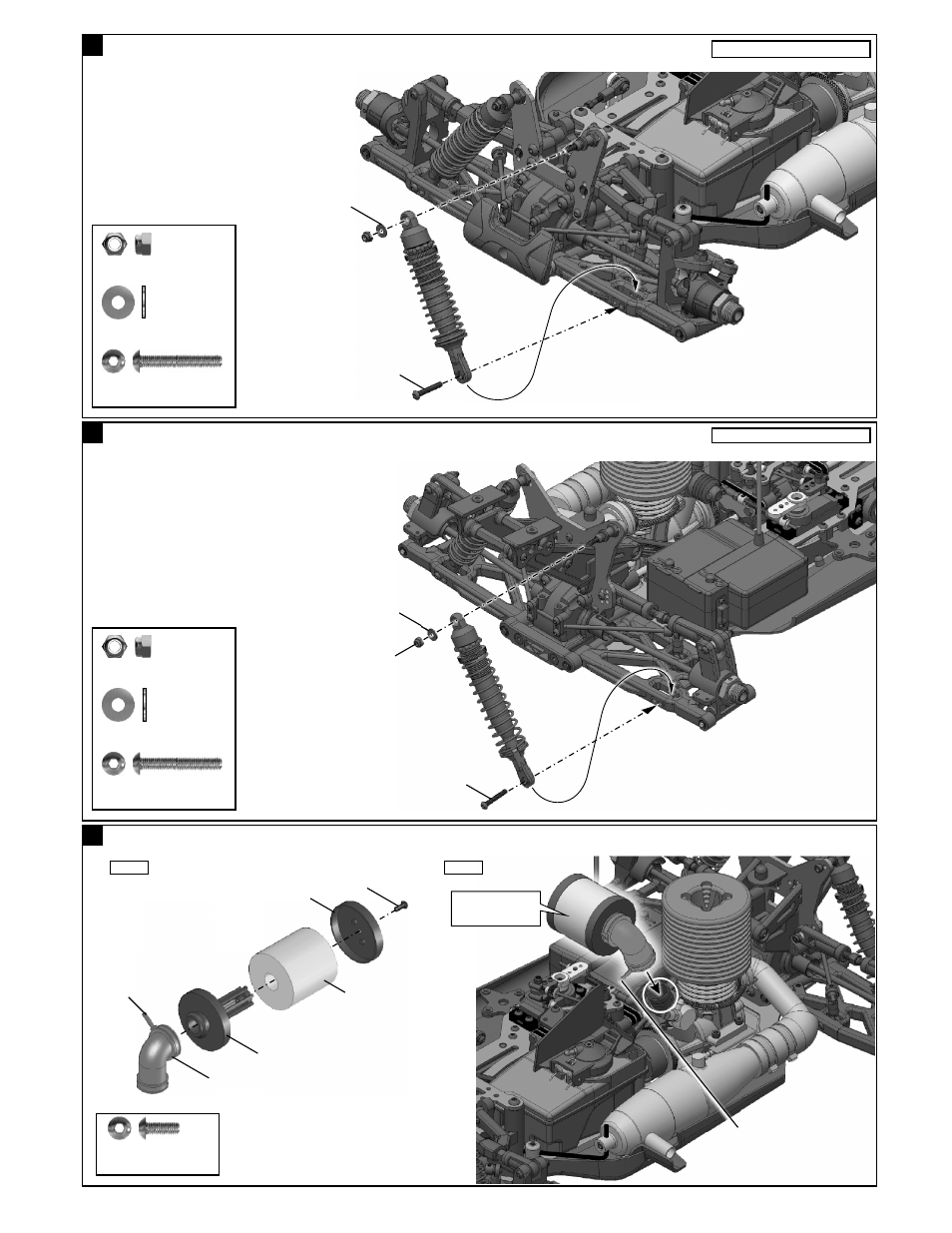

ASSEMBLY OF THE FRONT SHOCK ABSORBER
#94041
M3
Nylon Nut
#94041
M3
Nylon Nut #94041
M3
Nylon Nut
53 ASSEMBLY OF THE REAR SHOCK ABSORBER
54 ASSEMBLY OF THE AIR FILTER
A-81
Nylon Strap
(Small)
Apply filter oil to the
sponge before use.
#10099
3x8mm
Washer
#10099
3x8mm
Washer
#94007
3x20mm
Hex Screw
#94007
3x20mm
Hex Screw
#94002
3x8mm
Hex Screw
#94007
3x20mm
Hex Screw
#94007
3x20mm
Hex Screw
..........X2
..........X2
..........X2
..........X2
#10099
3x8mm
Washer
#10099
3x8mm
Washer
Assembly for both right and left side.
Assembly for both right and left side.
#40127
Air Filter
Cap
#40128
Air Filter
Foam
#40127
Air Filter
Mount
#40129
Air Filter
Connector
A-81
Nylon Strap
(Small)
#94002
3x8mm
Hex Screw
