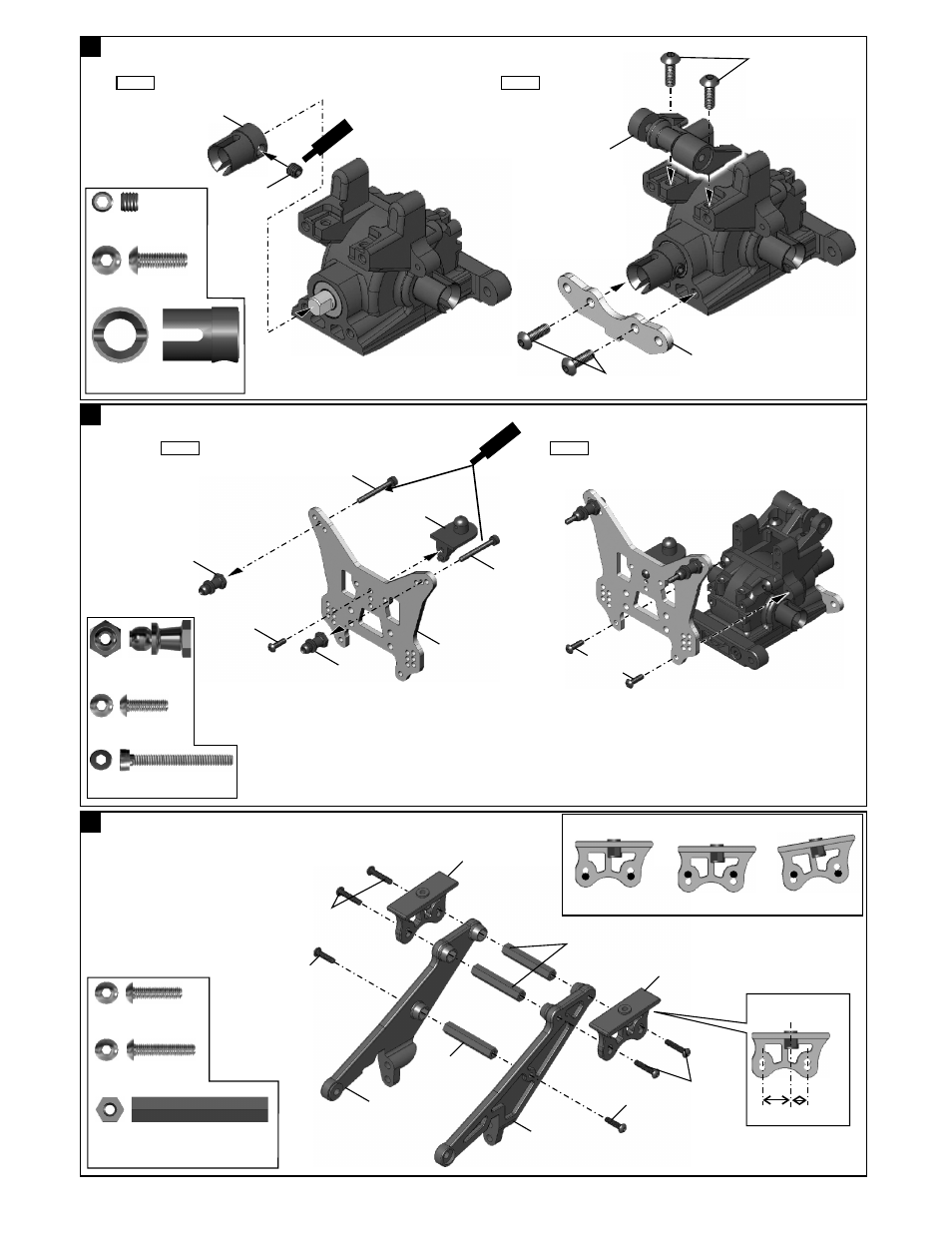

ASSEMBL OF THE REAR GEAR CASE
Y
ASSEMBLY OF THE REAR SHOCK STAY
#40503
Rear
Shock stay
90018
3x25mm
Cap Screw
90018
3x25mm
Cap Screw
#40542
Rear body
Post
#40531
Shock Ball End Post
one-piece/Top
#40531
Shock Ball End Post
one-piece/Top
90018
3x25mm
Cap Screw
94003
3x10mm
Hex Screw
94003
3x10mm
Hex Screw
94003
3x10mm
Hex Screw
#40509
Rear
Lower Arm Holder
#40539
Center Bracer
Mount
5x4mm
Set Screw
94036
5x4mm
Set Screw
#40519
Cap Joint
94010
4x12mm
Hex Screw
94010
4x12mm
Hex Screw
4x12mm
Hex Screw
Sc
rew
Ce
me
nt
..........X1
#40519
Cap Joint
..........X2
#40531
Shock Ball
End Post
..........X2
..........X4
..........X3
21
ASSEMBLY OF THE WING STAY
94005
3x15mm
Hex Screw
94004
3x12mm
Hex Screw
#40542
Wing Mount
#40542
Wing Mount
#40542
Wing Stay
Post
#40542
Wing Stay
Post
#40542
Wing Stay
Post
#40542
Wing Stay
Right
#40542
Wing Stay
(Left)
94004
3x12mm
Hex Screw
3x12mm
Hex Screw
3x15mm
Hex Screw
94005
3x15mm
Hex Screw
* The install angel of the wing mount can becomes bigger or higher.
High Position
Low Position
Big Angle
Long
Short
Makes two wing mounts in
the same position.
