OFNA Racing Jammin X1 RTR - Manual (Page 24)

20
55
..........X4
57

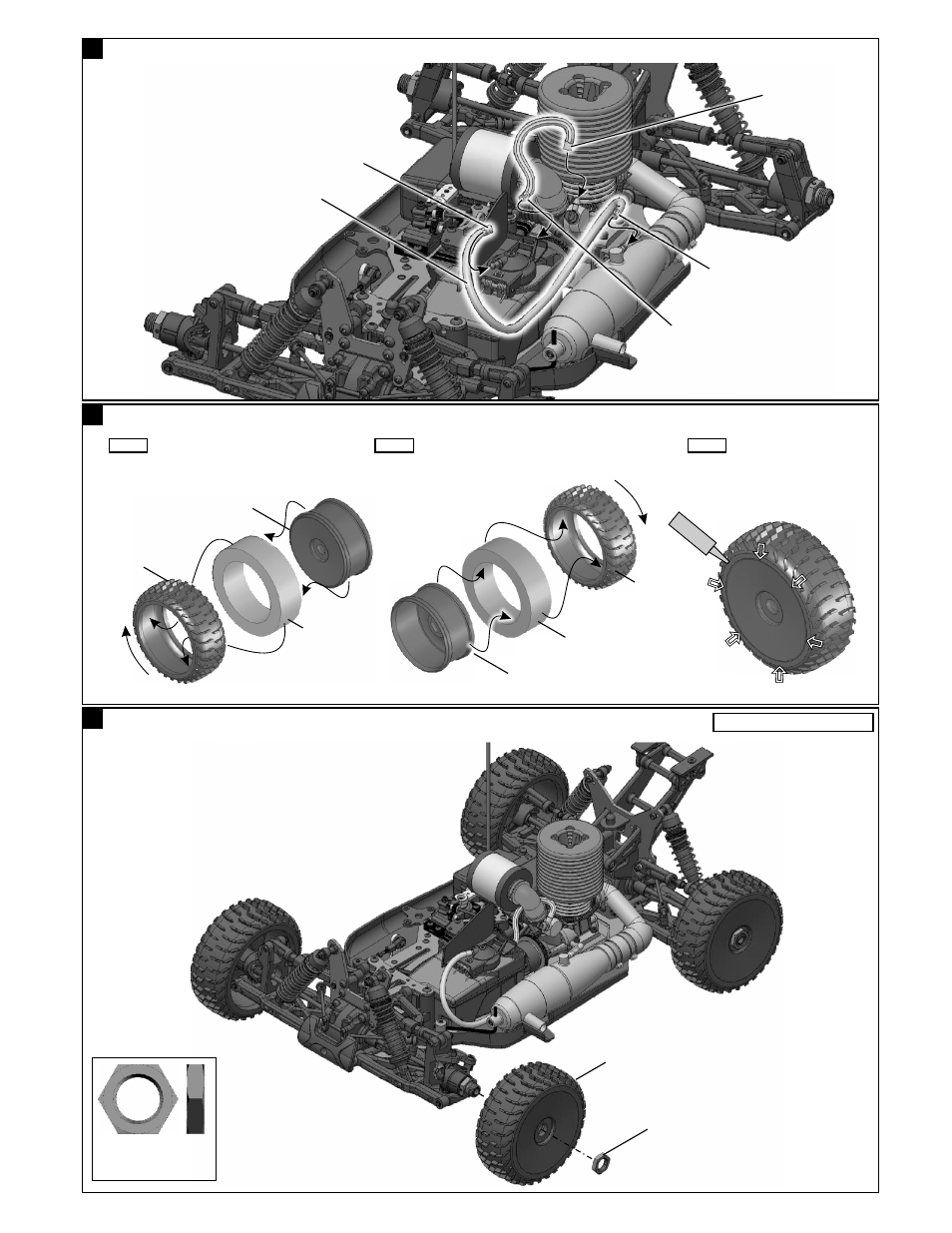

ASSEMBLY OF THE FUEL TUBE
Connect to
carbulater.
Connect to
fuel nipple.
Connect to fuel
tank nipple.
Connect to pressure
nipple.
#159
Fuel Tube
Tire and Wheel
Assembly.
15072
Blue
Wheel Nut
#40550
Blue
Wheel Nut
ASSEMBLY OF THE TIRE ONTO FRONT KNUCKLE AND REAR HUB Assembly for both right and left side.
Step 1 Step 2 Step 3
INSTANT
GLUE
Apply instant glue into the groove of
the wheel.
56 ASSEMBLY OF THE TIRES AND WHEELS
Make two right tires are the same.
*Notice the direction of tyres.
*Notice the direction of tyres. Make two left tires are the same.
86092
Tires
81095
Inner Sponge
(Hard)
#86041
Wheel(Yellow)
86092
Tires
81095
Inner Sponge
(Hard)
#86041
Wheel
(Yellow)
