Page 6

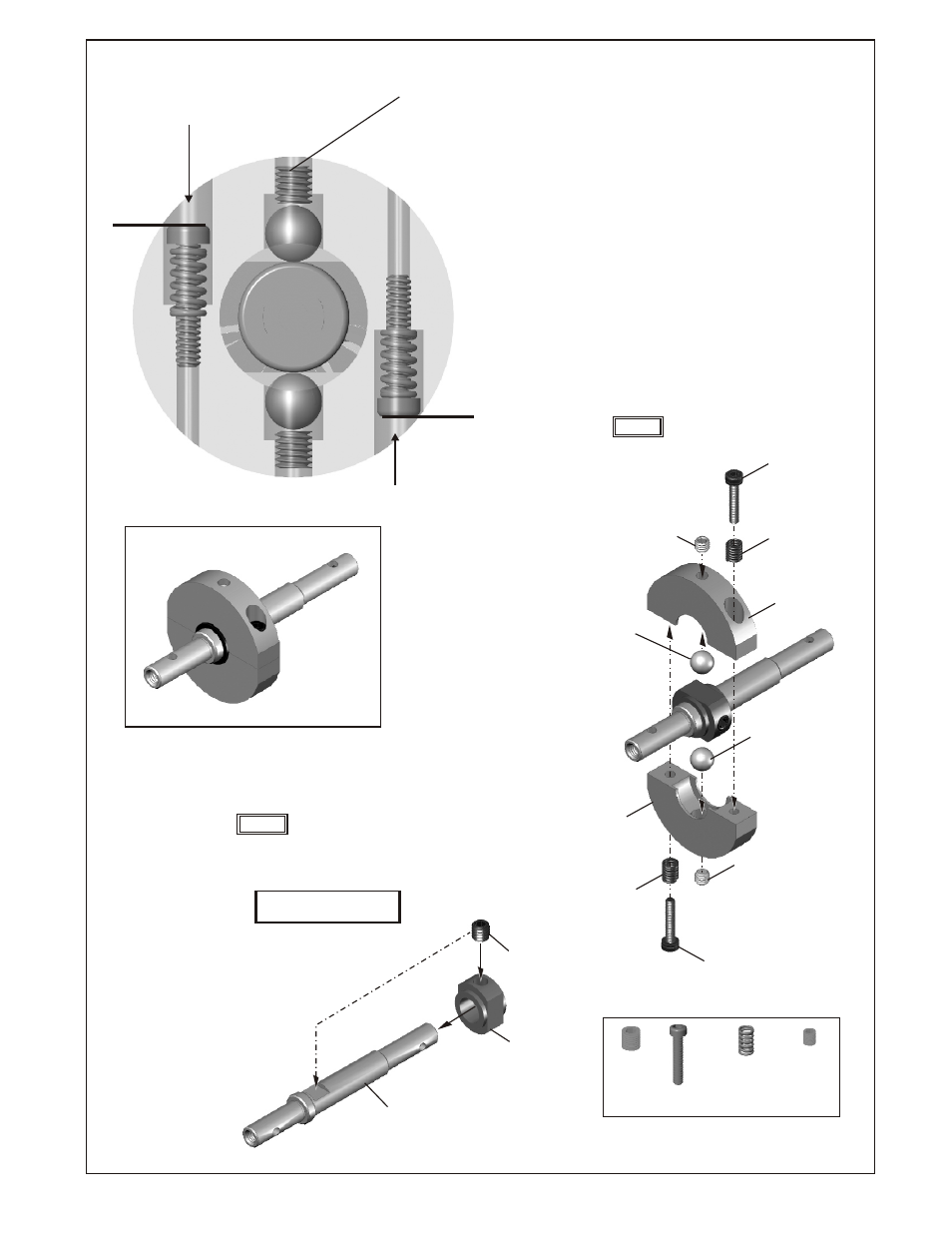

ASSEMBLY OF 2-SPEED CLUTCH TRIGGER DISC

SCREW AS SHOWN,
LEVEL WITH HOLE EDGE

SET BALL TO REST ON CAM, NOT PUSHING. IF
TOO TIGHT, THE BALL WILL PUSH ON CAM
SPREADING SHOE DISC AND WILL NOT FIT
INTO ALUM. CLUTCH BELL #38296

CARE MUST BE TAKEN TO BUILD
THIS ASSEMBLY CORRECTLY,
OTHERWISE 2-SPEED WILL NOT
ADJUST AND MAY NOT WORK AT ALL.
IN FACT, IF 2-SPEED DOES NOT
SHIFT, CHECK OUT THIS ASSEMBLY!.

38525

38316

38313

38312

38315

ASSEMBLY OF THE TWO SPEED CLUTCH SHOES

4x4mm

Set Screw

3x3mm

Set Screw

3x3mm

Set Screw

3x3mm

Set Screw

4x4mm

Set Screw

Clutch Shoe
Carrier

2 Speed Main Shaft
(Cd3 only)

Spring

M2x10mm

Hex Screw

M2x10mm

Hex Screw

M2x10mm

Hex Screw

Steel Ball

Steell Ball

2 Speed
Clutch Shoe

* Slide the Clutch Shoe Carrier
over the 38525 and set the
4x4 screw in the "D" cut.

Step 2

Step 1

35325

94033

35325

94034

94033

94034

94033
