Assembly of the engine onto engine mount, Assembly of the engine and 2-speed clutch bell, Assembly of the manifold – OFNA Racing CD3 RTR User Manual
Page 20
M3
Nylon Nut
M3
Nylon Nut
M3x20mm
Cap Screw
M3x20mm
Cap Screw
M3x12mm
Cap Screw
M3x12mm
Cap Screw

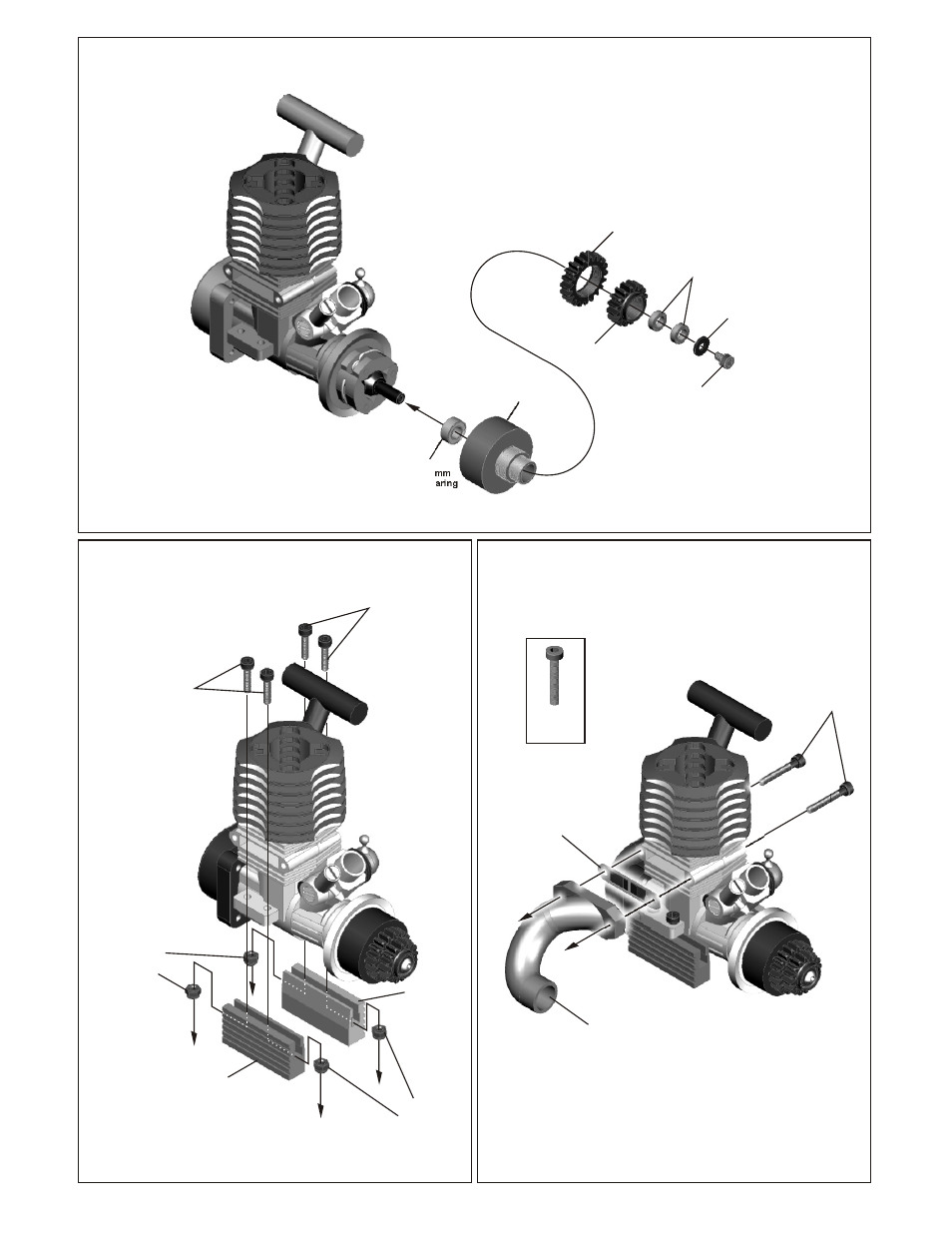

ASSEMBLY OF THE ENGINE ONTO ENGINE MOUNT
ASSEMBLY OF THE MANIFOLD
Manifold Gasket
38529
Manifold
(side exhaust)
Note:
Put the nylon nut
into the groove of the
engine mount.
38150
38150
Engine Mount
Engine Mount
38162
34110
5x10x4mm
Ball Bearing
5x8x2.5mm
Ball Bearing
3X6 mm
Washer
M3x5mm
CAP Screw
Clutch Bell
22T-2nd
Clutch Gear
18T-1st
Clutch Gear
35951
38309
35958
ASSEMBLY OF THE ENGINE AND 2-SPEED CLUTCH BELL
38307
90019
30702
94041
30702
94041
90019
