OFNA Racing CD3 RTR User Manual
Page 13

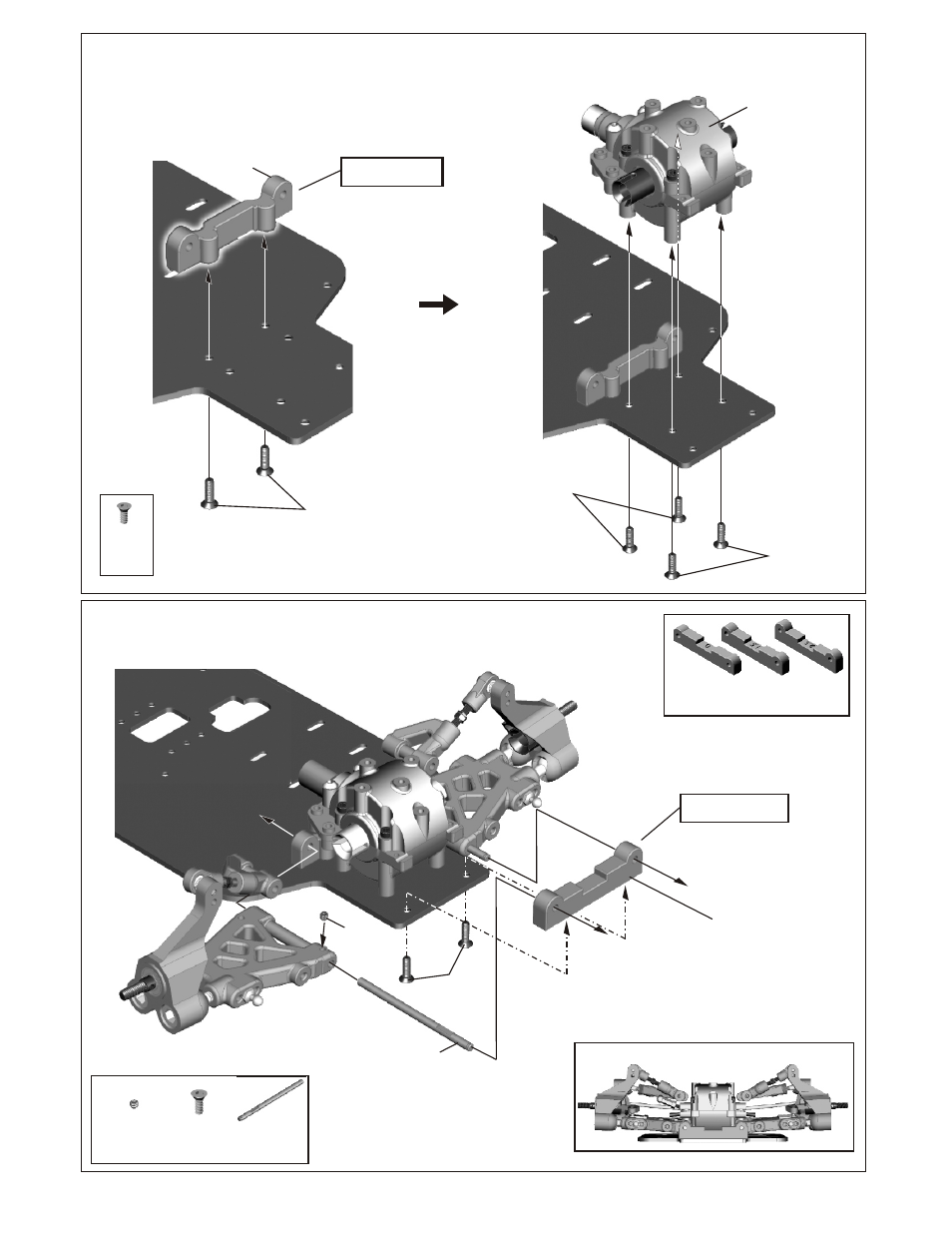

ASSEMBLY OF THE REAR GEAR BOX
AND ARM HOLDER ONTO CHASSIS
M3x10mm
Flat Head
HexScrew
M3x10mm
Flat Head
HexScrew
M3x10mm
Flat Head
HexScrew
M3x10mm
Flat Head
HexScrew
Arm holder
(Rear/Front)
Rear Gear Box
Assembly
Use the 0 degree for
rear arm holder.
ASSEMBLY OF THE REAR BLOCK ONTO CHASSIS
M3x10mm
Flat Head
HexScrew
M3x3mm
Set Screw
M3x10mm
Flat Head
Hex Screw
3x55mm
Lower Arm Shaft
3x55mm
Lower Arm Shaft
Arm Holder
(Rear / Rear)
38263
Use the 0 degree for
rear arm holder.
Assembly of the right and left-side are the same.
38263
Lower Arm Holder for 0 and 1.5 and
2.5 degree.
M3x3mm
Set Screw
38263
94019
94019
94019
38419
94033
94033
38419
94019
94019
