Page 23

Step 1

Step 2

Step 3

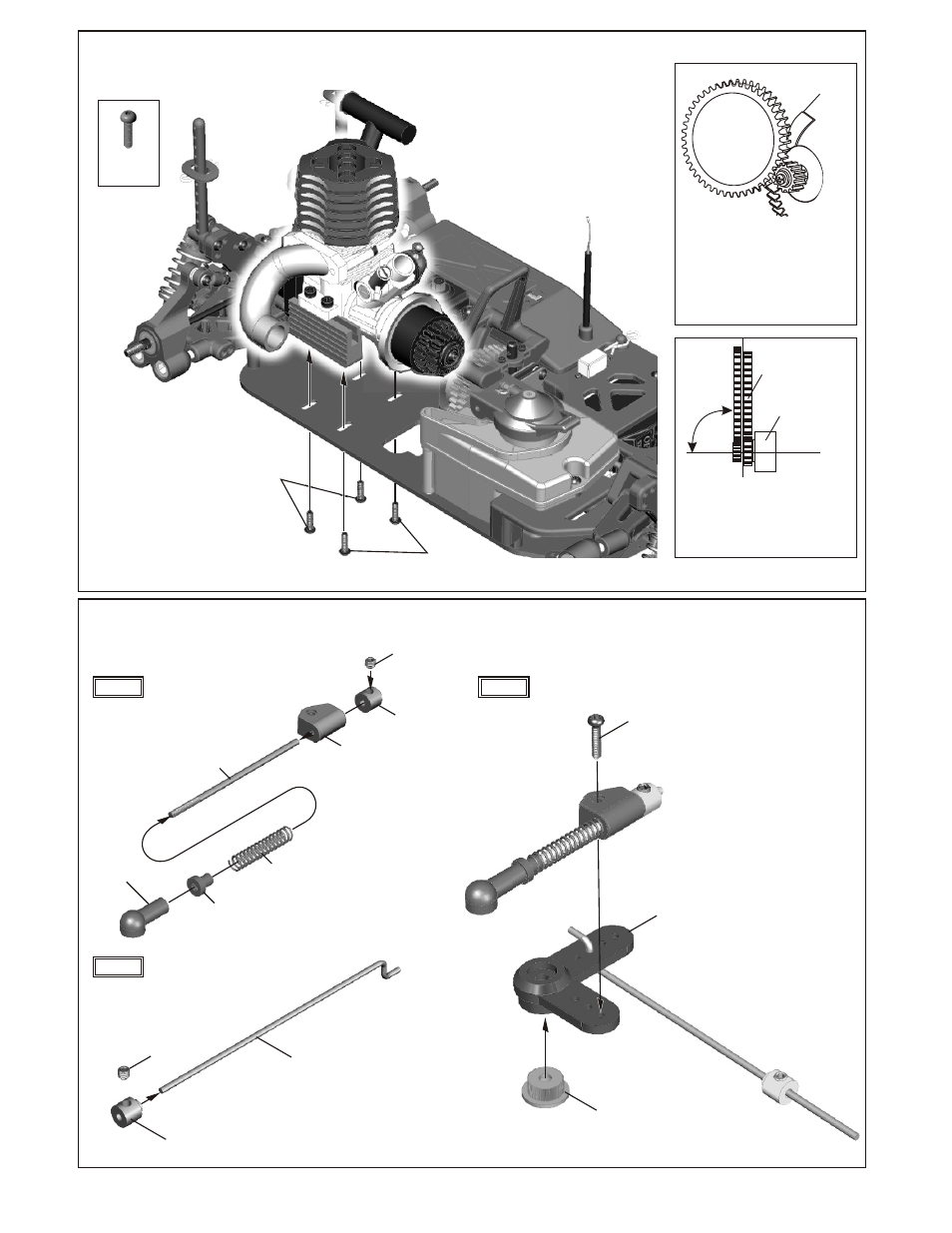

ASSEMBLY OF THE ENGINE ONTO CHASSIS

M3x10mm
Screw

* Use the note book paper to set gear
backlash between Spur Gear and Clutch
Bell Gear. If the space is not correct, the
spur gear will be damaged.

Note book Paper.

* Loose or tighten 3x10mm cap screw
to align spur gear and clutch bell gear
to 90 degree.

Spur Gear

90 Degree

Clutch Bell

M2x8mm
Screw

Servo Horn

10769

Insert for Servo Saver

ASSEMBLY OF THE BRAKE LINKAGE

10292
Throttle
Ball End

10300
Alum.
Stopper

3x3mm
Set Screw

2mm
Rod

Throttle
Slider

Brake Rod

36130

10724

10768

10300
Throttle Spring

Throttle Spring
bushing

( For slide carburetor. )

94003

94033
