OFNA Racing CD3 RTR - Manual (Page 11)

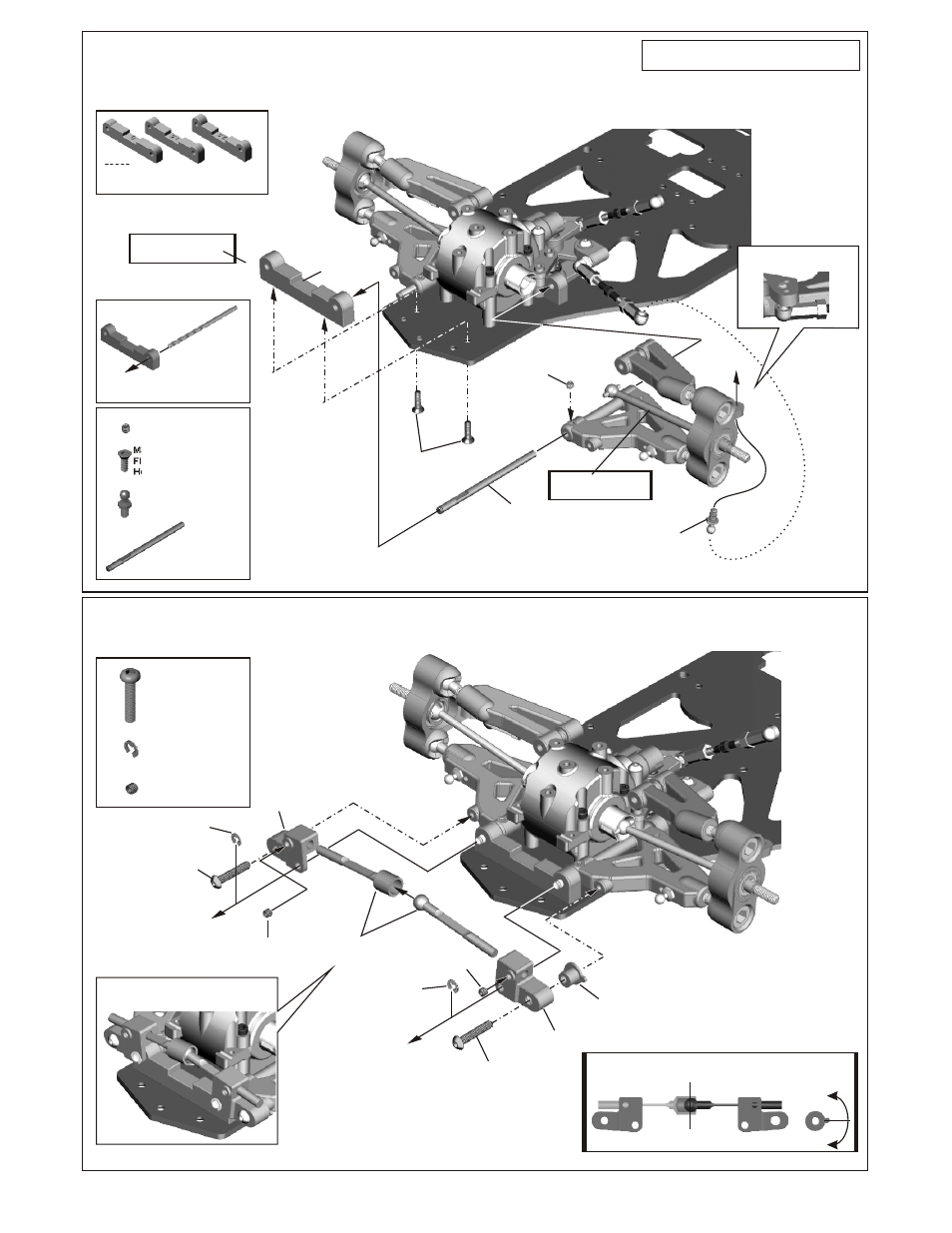

ASSEMBLY OF THE FRONT ARM HOLDER
ONTO CHASSIS
ASSEMBLY OF THE FRONT STABILIZER
38263
Lower Arm Holder for 0 and 1.5 and
2.5 degree.
38419
38263
M3x3mm
M3x3mm
M3x10mm
Flat Head
HexScrew
For assembly stabilizer:
37360
4mm
Ball & Socket
3X55mm
Lower Arm Shaft
M3x10mm
Flat Head
Hex Screw
M3x16mm
Screw
2.5mm
E-Ring
M3x3mm
Set Screw
4mm
Ball & Socket
38419
3x55mm
Lower Arm Shaft
38418
M3x16mm
M3x16mm
M3x3mm
M3x3mm
Assembly of front stabilizer
2.5mm
2.5mm
Stabilizer
Mount
Screw
Screw
Set Screw
Set Screw
E-Ring
E-Ring
Stabilizer
Mount
*Turn stabilizer balance adjuster to
adjust the stabilizer to the same angle.
*Keep stabilizer ball in the center.
Stabilizer
Stabilizer
Balance
Adjuster
Arm Holder
(Front/Lower)
Insert the drive shaft
before assembly.
Assembly of the right and left-side are the same.
Use the 0 degree for
front arm holder.
*Put steering rod into
4mm ball & socket
..
* Use a 3mm drill to
hone out the front
lower arm holder.
Center
94033
94019
37360
94005
94033
94005
94033
38420
94033
94005
38418
94019
90020
90020
90020
