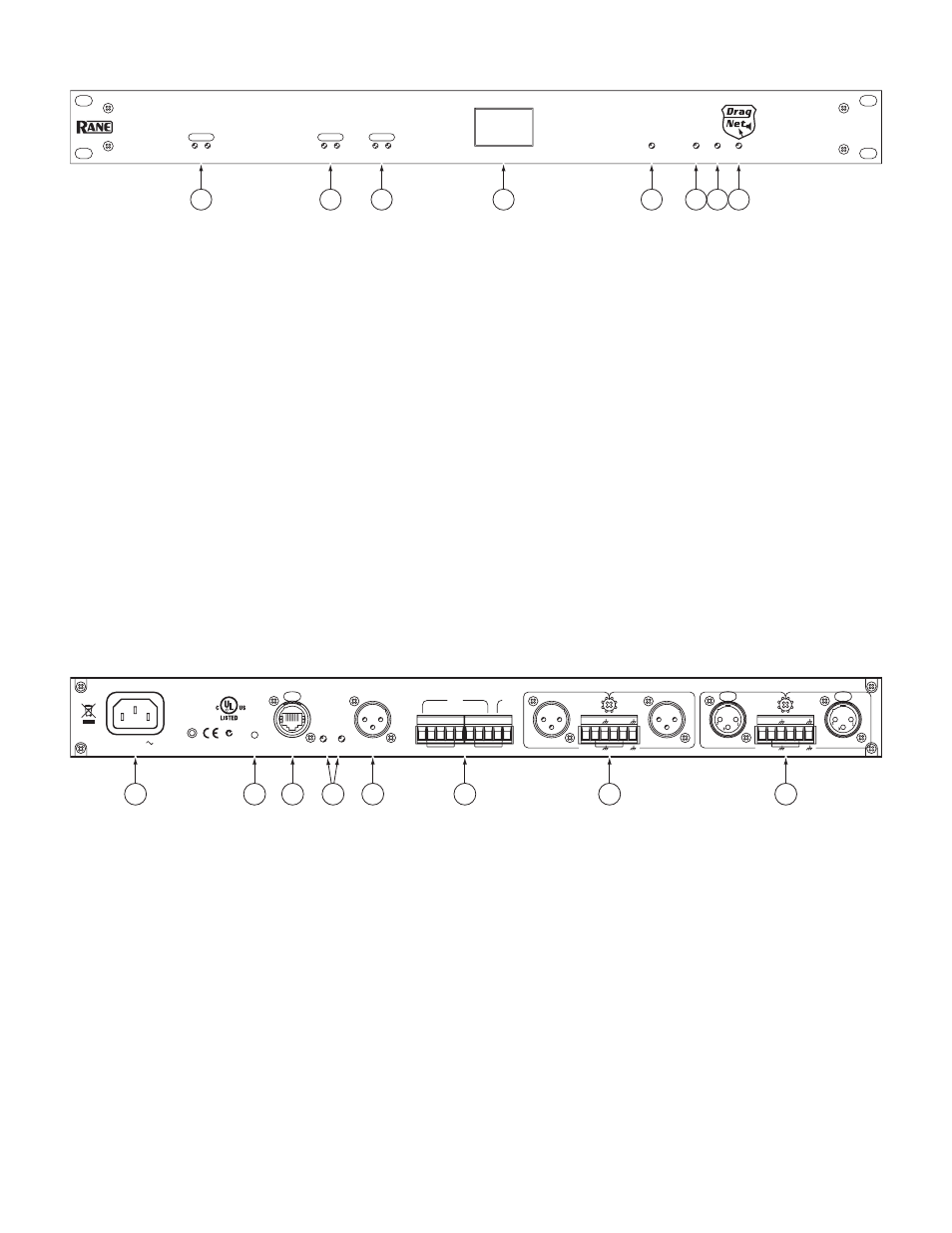

Rear Panel Description
Front Panel Description
1 Signal/Overload LED meters indicate the presence of significant audio signal or overload for Inputs and Outputs. These 3-color
meters indicate the available headroom once the analog signal has been converted to digital: -4 dBFS (red, near clipping), -12
dBFS (yellow, high normal level), and -48 dBFS (green, low level). The signal level in the RPM 2m depends on the input and
output settings and is displayed in Drag Net’s Meter window when the Converters tab is selected.
2 PRESET LED displays the number of the most recently recalled Preset, numbered 0 through 24.
3 VIP LED flashes when a change is detected on the Versatile Input Port (VIP). This port is used for direct electrical connections to
potentiometers, switches or other logic ports. See page Manual-4 for details.
4 ETHERNET LED flashes when an Ethernet data packet for this device is received.
5 STATUS LED reflects the overall status of the unit:
Red - initializing (briefly) or possible internal error (steady).
Yellow - working, but not yet processing audio.
Green - processing audio.
6 POWER LED lights yellow when the unit is powered on.
1 POWER IEC jack connects to AC line voltage, 100-240 VAC ±10%.
2 Balanced analog audio INPUTS 1 and 2 on Euroblock and XLR connectors. See “Audio Connections” on the following page.
3 Balanced analog audio OUTPUTS 1 and 2 on Euroblock and XLR connectors.
4 AES3 digital audio OUTPUT uses a fixed 48 kHz sample rate and 24-bit word length. See “Audio Connections.”
5 VERSATILE INPUT PORT provides 8 logic or voltage inputs for remote level control and Preset recall on a Euroblock.
6 LAN and LINK reflect the state of the Ethernet connection. LINK lights solidly when a valid connection to another Ethernet
device (e.g., a PC or network) is detected. LAN flashes when communicating with another Ethernet device.
7 10Base-T jack accepts a standard Ethernet cable with a RJ-45 connector.
8 DEFAULT button recalls Preset 1 when pressed. Holding this button while applying power puts the unit into a special codeload
mode for updating firmware.
