Manual-

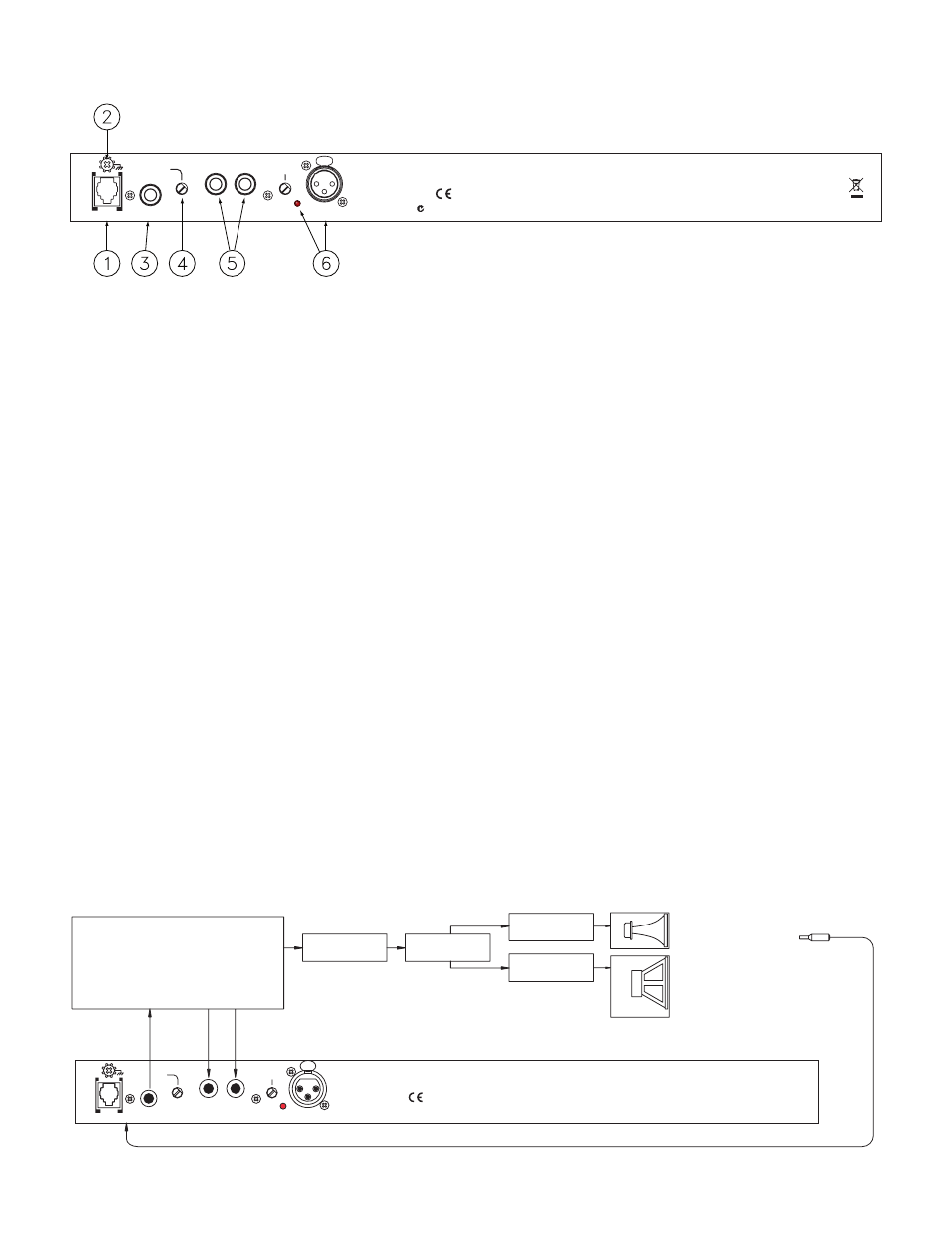

Rear Panel Description

RA 30 Connection

SYSTEM HOOK-UP

Connect the RA 30 into your system as shown below. Plug the Rane condenser microphone into the front panel MIC INPUT.

CAUTION: Do not plug any other microphone into the front panel jack: This jack contains a T-power DC voltage which may be damaging

to other microphones.



POWER input connector:

Use only a model RS 1 or other power supply approved by Rane. This unit is supplied with a remote

power supply suitable for connection to this input jack. This is not a telephone jack. The power requirements call for an 18 VAC

center-tapped transformer only. Using any other type of unapproved supply may damage the unit and void the warranty. Two

years parts and labor is worth safeguarding.



Chassis ground point:

A #6-32 screw is used for chassis grounding purposes if needed.



PINK NOISE OUTPUT jack:

This is an unbalanced ¼" jack which supplies Pink Noise to the sound system.



PINK NOISE LEVEL adjust:

Use a 3/16" or smaller screwdriver to adjust the output from the Pink Noise generator to match

the input level requirements of the mixer or other equipment.



LINE INPUT jacks:

These are balanced ¼" TRS Inputs, but unbalanced ¼" TS connections will work. When mono VU meter-

ing is desired, only use the LEFT Input. Front panel SOURCE switch must be in LINE IN to activate these jacks.



AUX MIC INPUT jack:

A balanced female XLR connector for receiving signals from a low impedance microphone. Pin 2 is

“hot” or (+). Use this jack when you wish to use a microphone other than the one supplied. Front panel SOURCE switch must be

set to AUX MIC for this jack to be active. If your mic requires phantom power, an external supply must be used.

DRIVER

LOW

HI DRIVER

LINE INPUT

CROSSOVER

MIXER

HIGH AMP

LOW AMP

MIC 2

CAL MIC INPUT (FRONT PANEL)

MAIN OUTPUT

AUX OUTPUT

EQUALIZER

600mA

POWER

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

POSITIVE

NEGATIVE

CHASSIS GROUND

PIN 1

PIN 3

PIN 2

OUTPUT

PINK NOISE

LINE IN

AUX MIC

RA 30

LEVEL

CLASS 2 EQUIPMENT

UNBAL

BAL/UNBAL

BALANCED

LEFT/MONO

RIGHT

GAIN

RANE CORP.

MADE IN U.S.A.
