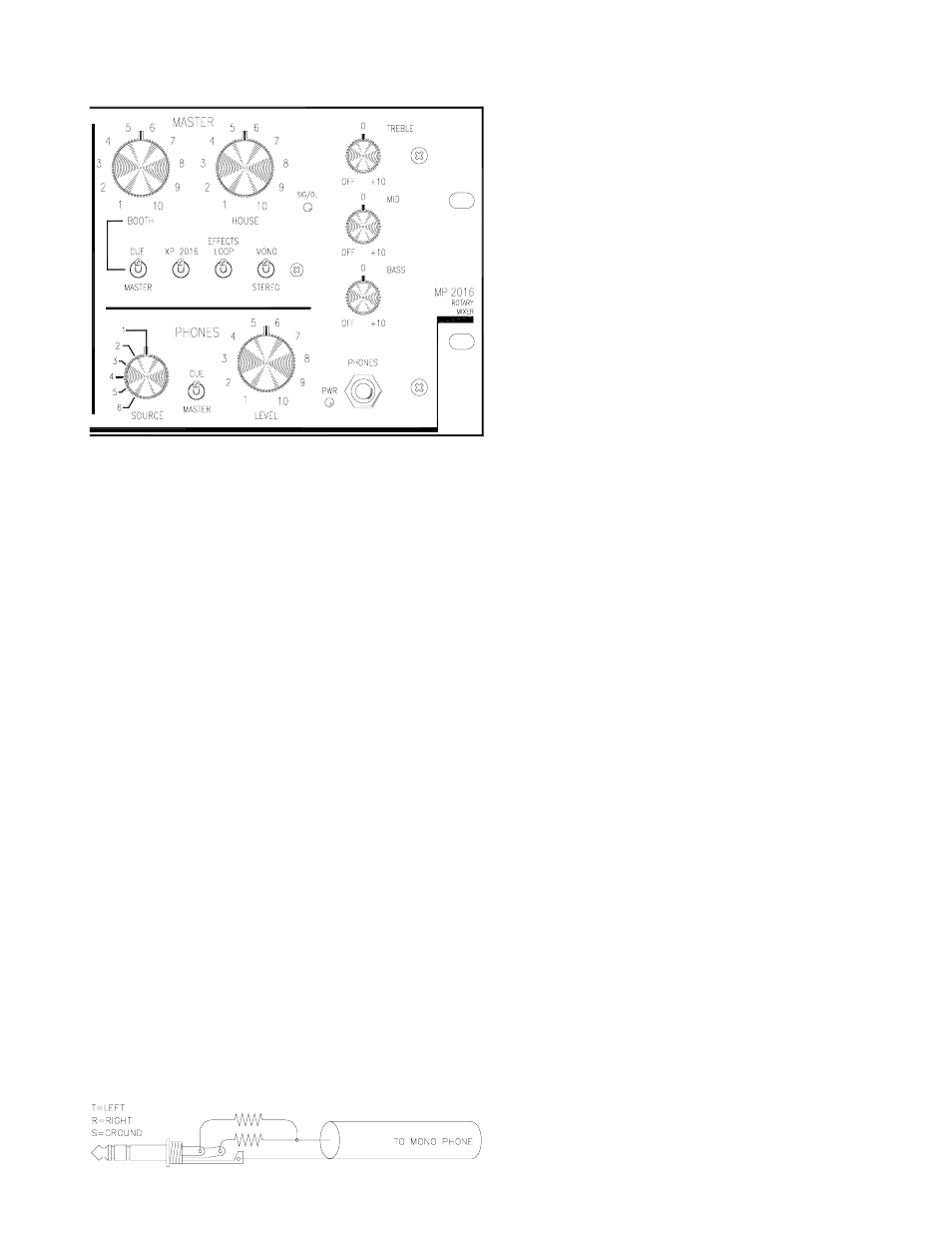

MASTER BOOTH Level
This studio-grade control sets the BOOTH Output level.
BOOTH CUE/MASTER switch
The BOOTH CUE/MASTER switch selects MASTER
mix or CUE selection as its source. This allows CUE moni-
toring in the BOOTH without headphones.
PHONES SOURCE selector
The PHONES SOURCE selector determines the CUE
source to be monitored by the headphones (or the BOOTH if
CUE is selected as its source).
PHONES CUE/MASTER switch
The PHONES CUE/MASTER switch determines if the
MASTER or CUE selection is monitored by the headphones.
This switch does not affect the BOOTH source.
PHONES LEVEL
This studio-grade control determines the headphone
output level. If you are mixing with the MIX LEVEL controls
below “7”, be sure to turn the PHONES LEVEL down before
selecting CUE source as it may be much louder than the
Master Mix.
PHONES jack
Plug your headphones in here. The headphone output is
very low impedance and high current so do not short tip and
ring together or tie to ground, as is common with many low-
cost mono cups. Use resistors of 300 to 600 ohms in series
with each output for mono applications, although this
significantly reduces output power.
MASTER HOUSE Level
This studio-grade control sets the HOUSE Output level.
MASTER SIG/OL indicator
This dual color indicator helps set correct MASTER mix
levels. A flashing or steady green indication is optimal. The
red indicator may flash only briefly on rare occasion...regular
flashing or steady-on means that distortion is imminent and
Levels need reducing.
XP 2016 switch
This engages the optional XP 2016 external processor. If
the XP 2016 is not connected, the switch does nothing. If an
XP 2016 is connected and the switch is on (up), it routes the
MIX LEVEL Outputs to the XP 2016 and returns a stereo
MASTER signal to the MP 2016.
EFFECTS LOOP switch
This engages the EFFECTS LOOP when up. If nothing is
connected to the EFFECTS LOOP RETURN, the switch has
no effect.
MONO/STEREO switch
This sets the MASTER mix signal to MONO or STEREO
operation. It effects both BOOTH and HOUSE Outputs.
TREBLE tone control
Allows adjusting the amplitude of frequencies above
4 kHz from +10 dB to OFF (full kill).
MID tone control
Allows adjusting the amplitude of frequencies between
300 Hz and 4 kHz from +10 dB to OFF (full kill).
BASS tone control
Allows adjusting the amplitude of frequencies below
300 Hz from +10 dB to OFF (full kill).
PWR indicator
This yellow indicator lights whenever AC power is
connected to the unit.
