Rane ECS v2 RaneWare (RaneWare 2.1) - Manual (Page 19)

RW Manual-19
System 4: Large Conference Center
Memory 2 - Selecting this Preset Memory connects the
Conference Room (Port 1) to the Codec (Port 2).
Memory 3 - Selecting this Preset Memory connects the
Conference Room (Port 1) to the Matrix (Port 4).
Memory 4 - Selecting this Preset Memory connects the
Conference Room (Port 1) to Video Network (Port 5).
Memory 5 - Selecting this Preset Memory connects the
Conference Room (Port 1) to the Digital Hybrid (Port 6).
Memory 6 - Selecting this Preset Memory bridges the
Conference Room (Port 1), Video Codec (Port 2), Video
Network 1 (Port 5) and Digital Hybrid (Port 6) together.
Memory 16 - Preconditions the Port Inputs and the Mic Inputs
for alignment.

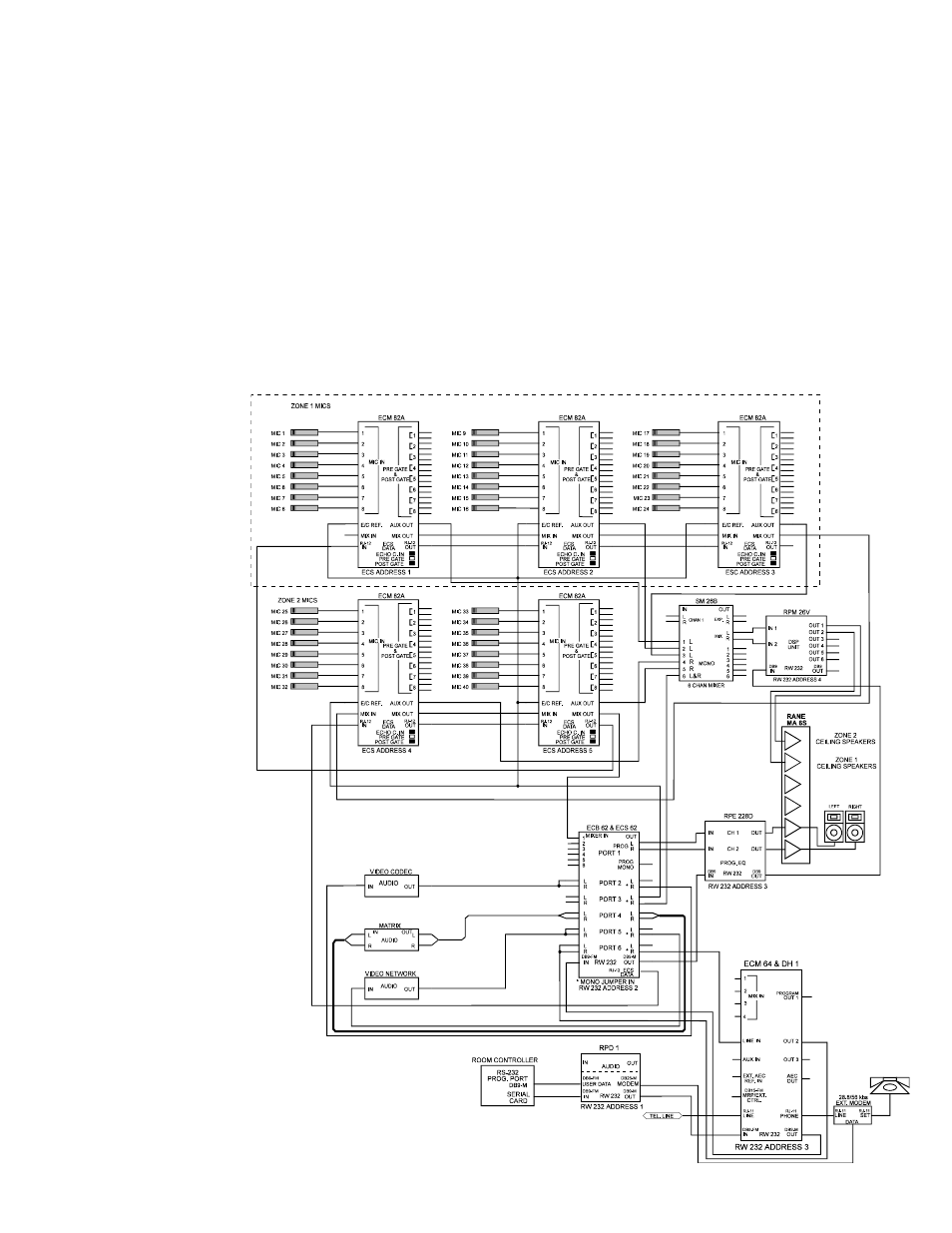

The following illustrates a very large ECS with 40 Mics,
stereo program speakers, 2 zone mono ceiling speakers with
sound reinforcement, a video CODEC, a digital hybrid, an
audio matrix switcher, a fiber video network, and a telephone
connection.
Sound reinforcement utilizes a 6-channel stereo Mixer to
create 2 speech zones. The Zone 1 Mics are only played in
Zone 2 by panning Ports 1 thru 3 to the left. The Zone 2 Mics
are only played in Zone 1 by panning Ports 4 and 5 to the
right. Mics 1-24 are placed in Zone 1, and Mics 25-40 are
placed in Zone 2. To play program audio from the Base in
both Zones, Port 6 is panned to center.
The audio feed from the remote location is not sent to the
program loudspeakers, instead Port 3 is used for the telecon-
ferencing speakers and the Echo Canceller reference for the
ECM 82As.
Rane Equipment:
1 ECB 62 Base
5 ECM 82A Mixers
with Echo Cancellers
1 ECM 64 with DH 1
Digital Hybrid
2 RPE 228d Program-
mable Equalizers
1 SM 26B Line Mixer
1 MA 6S Multichannel
Power Amp
1 RPD 1 Programmable
Diagnostics Unit
RaneWare Setup
The file for this
application is called
AP4V2.ECS, located on
the RaneWare disc. This
file has 7 preset Memo-
ries.
Memory 1 - Room
Controller operational
mode. In this mode
all Port Outputs have
their Input select
checkboxes cleared
and all Mic Inputs are
Active and set to
Automatic operation.
This is performed by
selecting the Port
Memory settings
from Preset Memory
1 at start-up, allowing
the Room Controller
to know the start-up
condition of ECS.
