Rane ECS v2 RaneWare (RaneWare 2.1) - Manual (Page 17)

RW Manual-17

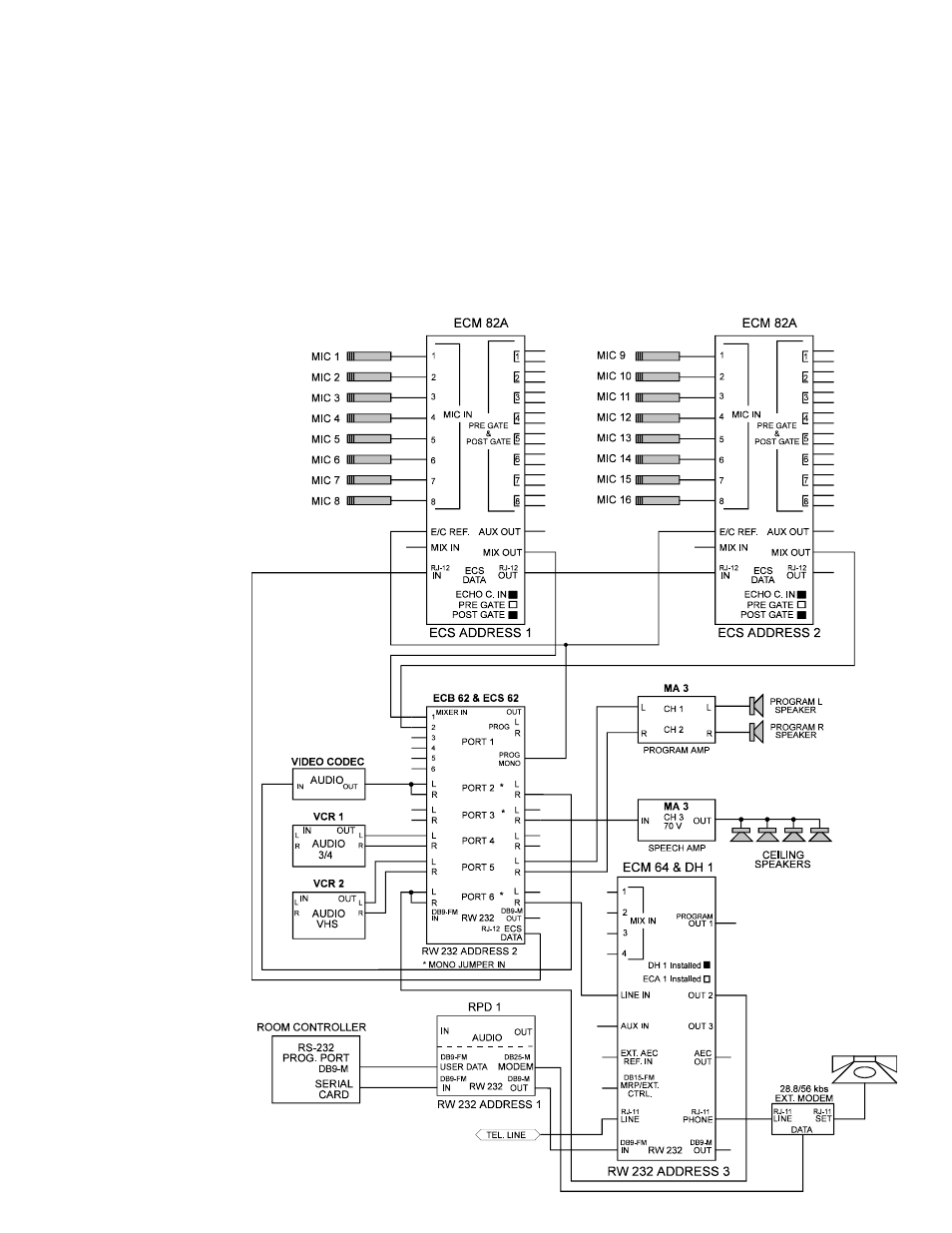

System 2: Boardroom with Program Stereo
The following illustrates an ECS with 16 mics, stereo program speakers, mono ceiling
speakers, a digital hybrid, a video CODEC, 2 VCRs, and a telephone connection.
Rane Equipment
1 ECB 62 Base with ECS 62 Stereo Module
2 ECM 82A Mixers with Echo Cancellers
1 ECM 64 Conference System with DH 1 Digital Hybrid
1 RPD 1 Programmable Diagnostics Unit
RaneWare Setup
The file for this application is called AP2V2.ECS, located on
the RaneWare disc. This file has six preset operational Memories.
Memory 1 - Room Controller
operational mode. In this mode
all Port Outputs have their
Input select checkboxes cleared
and all Mic Inputs are
Active
and set to Automatic operation.
This is performed by selecting
the Port Memory settings from
Preset Memory 1 at start-up,
allowing the Room Controller
to know the start-up condition
of ECS.
Memory 2 - Selecting
this Memory connects
the Conference Room
(Port 1 In) to the
ECM 64 (Port 6 Out)
and Port 6 In to Port
3 Out.
Memory 3 - Selecting
this Memory connects
the Conference Room
(Port 1 In) to the
Codec (Port 2 Out)
and Port 2 In to Port
3 Out.
Memory 4 - Selecting
this Memory allows
the VHS (Port 5 In)
to be heard at the
Program loudspeak-
ers (Port 1 Out).
Memory 5 - Selecting
this Memory bridges
the Conference Room
(Port 1), Codec (Port
2) and ECM 64 (Port
6) together.
Memory 16 - Precondi-
tions the Port Inputs
and the Mic Inputs
for alignment.
