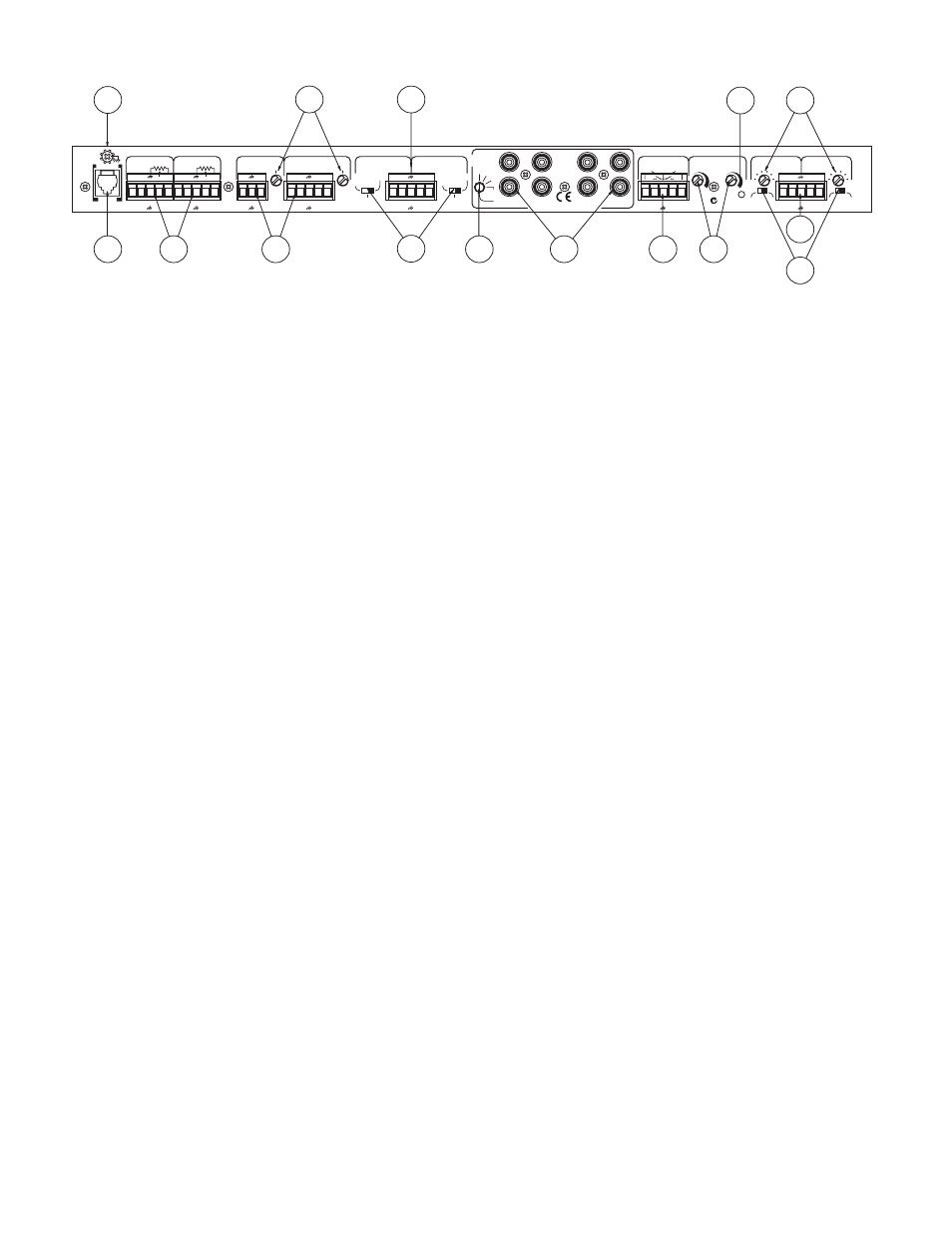

CP 64 REAR PANEL
 Chassis Ground Screw provides a convenient earth (technical) ground connection point. The CP 64 does not ground the chassis
through the power cord. It is important that the unit be grounded.
 POWER jack accepts the cable from a Rane RS 1 remote power supply (included). This is not a telephone jack. Use of a supply not
approved by Rane may damage your unit and void the warranty.
 REMOTES ports provides the wiring interface for two optional ZR 1 wired remotes. Each ZR 1 remote provides remote control of
Zone Level and Zone Program Select functions. Refer to page Manual-6 for details.
 ZONE OUTPUT ports feature balanced, cross-coupled line drivers with Euroblock connectors. Zone 1 is stereo. Zone 2 is mono.
 ZONE LIMIT threshold controls set the maximum output level for each Zone. These circuits are true voltage limiters with a ratio
of 15:1. The threshold range is -20 dBu to +20 dBu
 EXPAND OUTPUT ports feature balanced, cross-coupled line drivers with Euroblock connectors. Zone Expand Outputs are
mono.
 EXPAND switches assign Page-only, Program-only or Zone1 or Zone 2 as the source for each Expand Output.
 PROGRAM PRIORITY ASSIGN switch determines in which Zone(s) the automatic priority override is enabled. Off (none),
Zone 1, Zone 2 or Both are the possible settings. If you do not intend to use the Priority Input as an automatic override Input, do
not assign it with this switch. Use the Zone PROGRAM SELECT switch on the front panel.
 Four PROGRAM INPUTS are provided. Three are non-priority Inputs. The fourth is a Program PRIORITY Input. When signal
is present at the PRIORITY Input, it is automatically selected as the Input source in the Zone(s) it is assigned with the Program
PRIORITY ASSIGN switch.
 RMT ZONE ASSIGN port provides the interface for the PR 2 wired remote. The PR 2 remote is used for Zone assignment of Page
Inputs. Refer to page Manual-6 for details.
 PAGING INPUTS DETECT THRESHOLD sets the Page signal level required to gate a Page on and light the ACTIVE indica-
tor. The range is -∞ (on) to +4 dBu.
 The PAGING INPUTS OL indicator lights when either of the Page Input preamplifiers comes within 3 dB of clipping.
 PAGE 1 and PAGE 2 INPUT TRIM controls adjust Page Input preamplifier gain to match the microphone/source in use, not to
set the page level in the Zones. The range is 30 dB to 60 dB.
 PAGE 1 and PAGE 2 INPUT Euroblock connector provides access to the two balanced instrumentation Paging amplifiers. These
Inputs may be operated balanced or unbalanced.
 PAGE 1 and PAGE 2 INPUT MIC/LINE switches select 30 dB Input Pads when set to LINE. Phantom Power is disabled when
LINE is selected.
