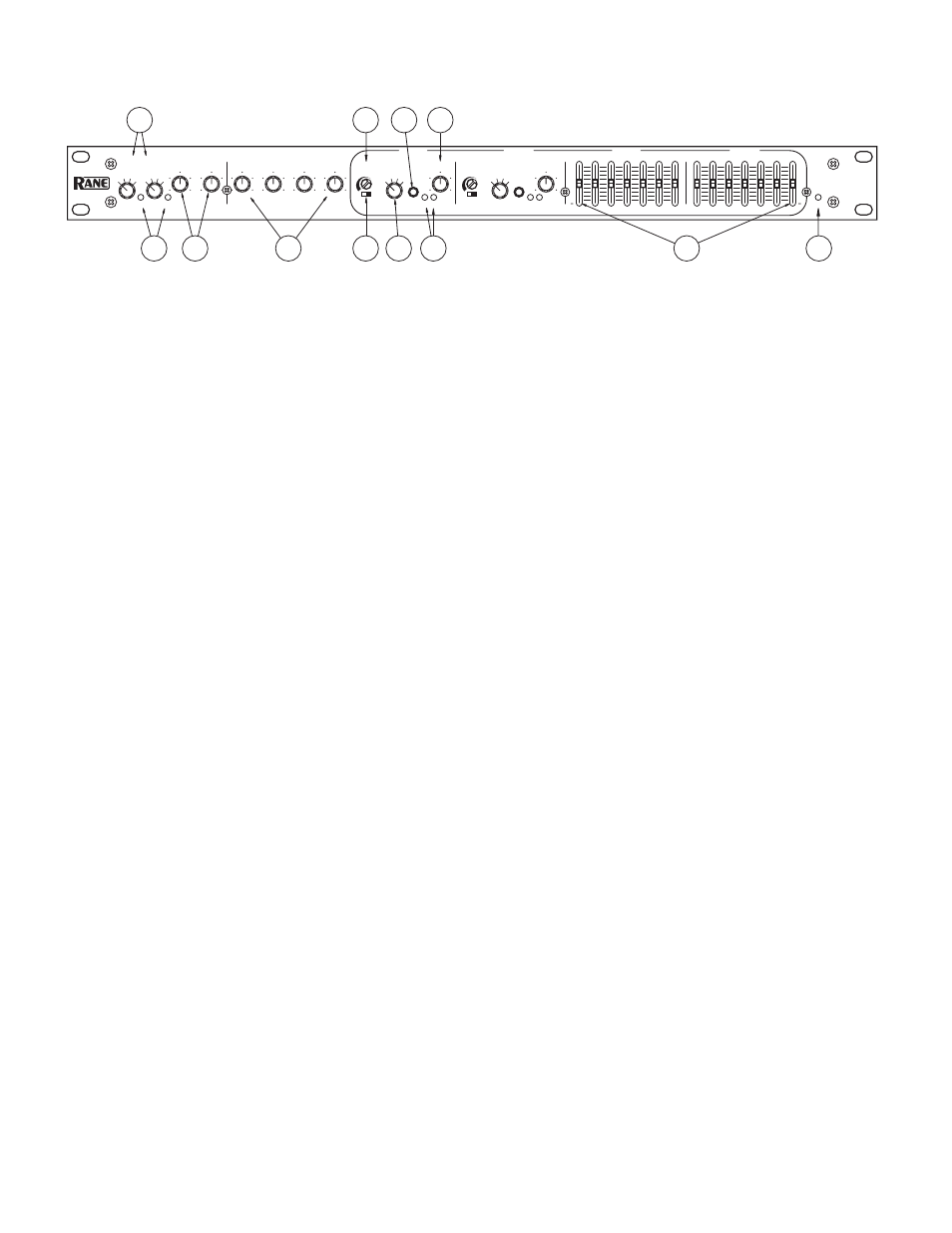

CP 64 FRONT PANEL
PAGING ZONE ASSIGN
switches select the zone(s) a Page signal is sent to. The RMT position activates the rear panel RMT
ZONE ASSIGN port, allowing the optional PR 2 wired remote to assign the active page Zone(s).
ACTIVE
indicators light when a Page input signal reaches the Page Detect Threshold. Note that a Page is always Active when its Page
Detect Threshold is set to minimum.
ZONE 1 and ZONE 2 PAGING LEVEL
controls adjust the Paging Level in each Zone.
PROGRAM INPUT LEVELS
“stereo”controls allow independent adjustment of level for each Program Input.
DUCKER OFF/ON
switches turn the Ducker ON or OFF for each Zone.
DUCKER DEPTH
controls allow setting Ducker Depth (the amount of Program attenuation during a Page) from 50 dB (ccw) to
6 dB (cw) for each Zone.
ZONE PROGRAM SELECT
switches assign one of four Program Inputs in each Zone.
ZONE RMT
switches, when pushed in, enable the Remotes port for a Zone. This turns control of Zone Level and Zone Program
Select over to the Remotes port. Front panel Zone LEVEL and Zone PROGRAM SELECT controls are inactive when RMT is
selected. Two optional wired ZR 1 remotes may be connected to the Remotes port. An object smaller in diameter than the switch
button is required to engage the RMT switches.
ZONE SIG and OL
indicators show SIGnal present at -20 dBu and OverLoad at -16 dBu (4 dB before clipping) respectively.
Signal indicators are located pre-EQ and pre-VCA.
ZONE LEVEL
controls adjust the overall Level for a given Zone.
ZONE graphic EQ
controls are provided for each Zone. Zone 1 controls are “stereo,” with each slider controlling the response of
both Left and Right channels. These controls allow ±12 dB adjustment of seven ISO center frequencies on two octave centers.
POWER
indicator lights when the CP 64 is connected to a powered RS 1 power supply.
RMT
BOTH
Z1 Z2
L1
P
L2 L3
RMT
BOTH
Z1 Z2
ZONE 1
ZONE 2
PAGING
ZONE ASSIGN
LEVEL
L1
P
L2 L3
4k
630
1.6k
40
100
250
10k
4k
630
1.6k
40
100
250
10k
CP 64
ACTIVE
ACTIVE
PAGE 1
PAGE 2
ON
OFF
SIG
RMT
OL
DUCKER
SELECT
PROGRAM
DEPTH
LINE 1
LINE 2
LINE 3
PRIORITY
LEVEL
ON
OFF
SIG
RMT
OL
DUCKER
SELECT
PROGRAM
DEPTH
LEVEL
PROGRAM INPUT LEVELS
ZONE 1
ZONE 1
ZONE 2
ZONE 2
POWER
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
0
2
4
8
6
10
2
4
8
6
10
2
4
8
6
12
•
6
•
•
•
6
12
0
+
12
•
6
•
•
•
6
12
0
+
COMMERCIAL
PROCESSOR
1
6
8 10
2
3
4
5
7
9
11
12
