Wilbur Curtis D60GT30 - Manual (Page 5)

5
ITEM PART № DESCRIPTION
1 WC-58117 COVER, TOP D60GT
2 WC-2962-101K KIT, FITTING SPRAYHEAD KYNAR
3 WC-889* VALVE, DUMP LEFT 120V 12W
3A WC-860 VALVE, DUMP LEFT 220V 12W
4 WC-37064* KIT, LABEL & UCM D500/D60GT CURTIS 120V
5 WC-37252 KIT, HOT WATER FAUCET REPLACEMENT
6 WC-1806 SEAT CUP, SILICONE (FOR WC-1809 FAUCET)
7 WC-8556* HEAT SINK ASSEMBLY DV
8 WC-2401 ELBOW, 1/4 x 3/8 FLARE
9 WC-826L* VALVE, INLET 1.0 GPM 120V
9A WC-856 VALVE, INLET 1 GPM 240V 10W
10 WC-5970 COVER, BACK CTR WRAP ALPHA/D60GT
11 WC-8591* CAPACITOR, X2 USED ON ALL ADS MODELS
12 WC-29025* SPRAYHEAD, PURPLE ADVANCE FLOW
13 WC-3518* LEG, GLIDE 3/8”-16 STUD SCREW
13A WC-3503* LEG, SCREW BUMPER (3/8”)
14 WC-3621-101 BREW CONE, NON-METAL UNIVERSAL (WITH SPLASH PCKT)
14A WC-3316 BREW CONE, ASSY S.S. (OPTIONAL)
* Recommended Parts to Stock.
1
2
3
A
4
18
5
6
15
B
C
24
17A
7
8
9
10
11
12
13
13A
14
14A

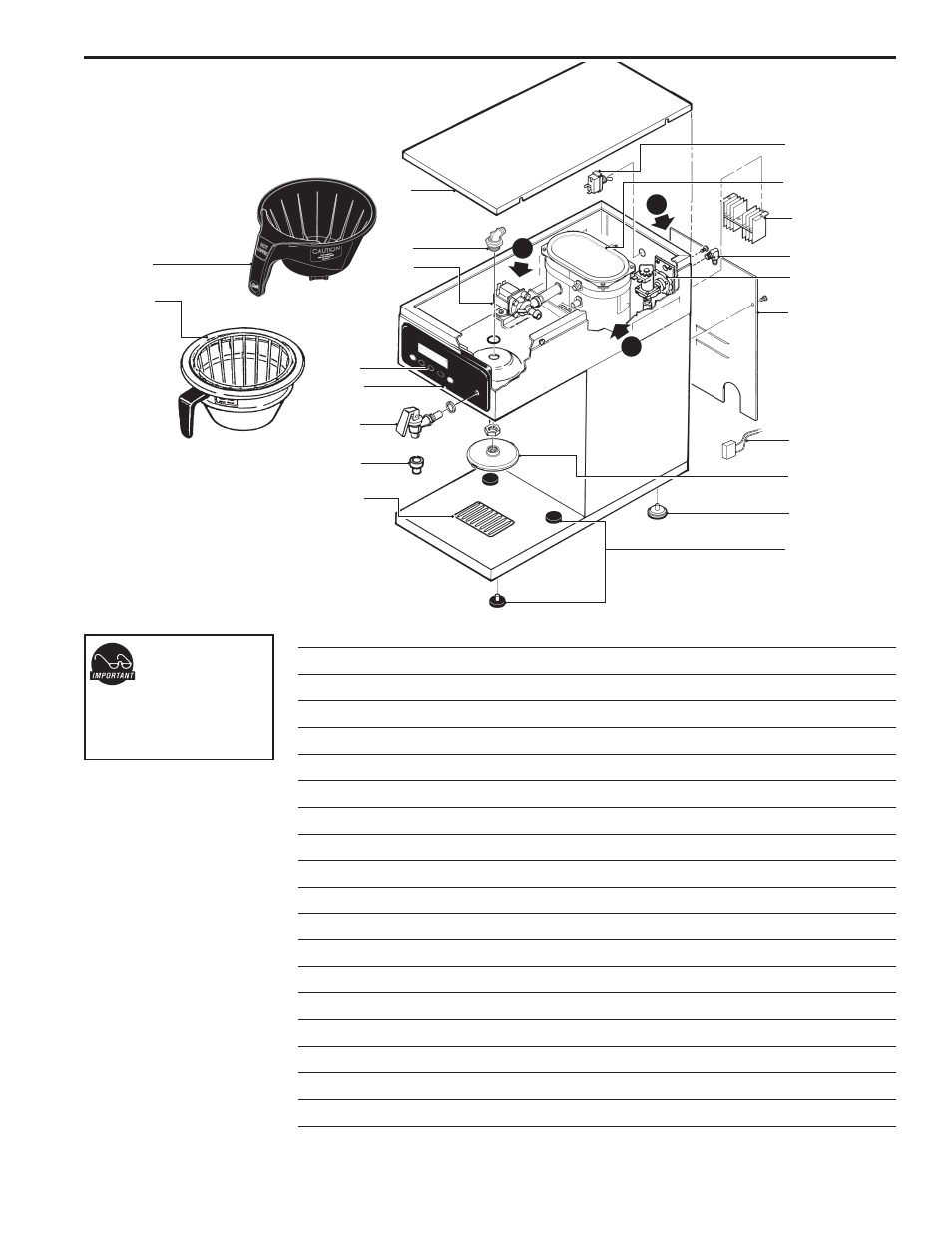

ILLUSTRATED PARTS
Main View
NOTE: The 120V
and the 220V unit
shares many of the
components. The exceptions
will be in bold type, to indicate
220V.
