2

STEP 1. Mounting brackets are not used on a 1" shelf.

Invert shelf, as shown in Figure 2.
STEP 2. Set unit in position and mark four holes. Remove

unit and drill holes.
STEP 3. Bolt unit to shelf.

INSTALLATION INSTRUCTIONS (1" SHELF)

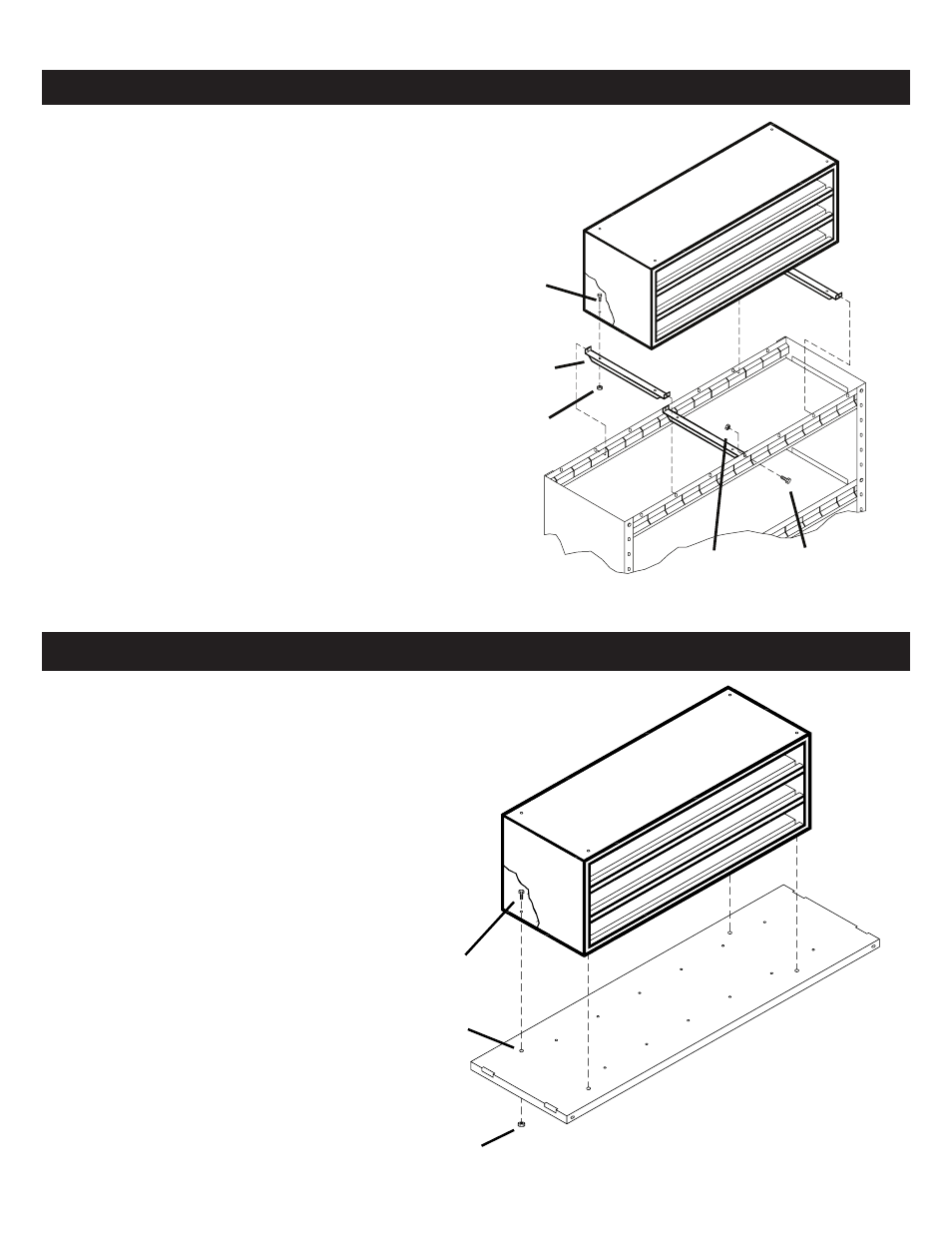

Figure 2. Flat Shelf Installation

1/4-20 Nylon

Lock Nut

5/16" Hole

1/4-20 x 1/2"

Hex Hd. Bolt

Mounting Bracket

1/4-20 Nylon

Lock Nut

1/4-20 x 1/2"

Hex Hd. Bolt

1/4-20 x 1/2"

Hex Hd. Bolt

1/4-20 Nylon

Lock Nut

Figure 1.

NOTE: Model 8918-3 has three brackets, use third
as a center support, not to be bolted to bottom of
unit. Install bracket before bolting unit to shelf.
STEP 1:
For installation on a 3" shelf, use two Mounting
Brackets with models 8906-3/8908-3/8909-3 and three
brackets for model 8918-3.
STEP 2: Bolt Mounting Brackets to cabinet bottom (see
Figure 1).
STEP 3: Position unit aligning mounting bracket holes
with van shelf holes and bolt unit to shelf.

INSTALLATION INSTRUCTIONS (3" SHELF)
