17

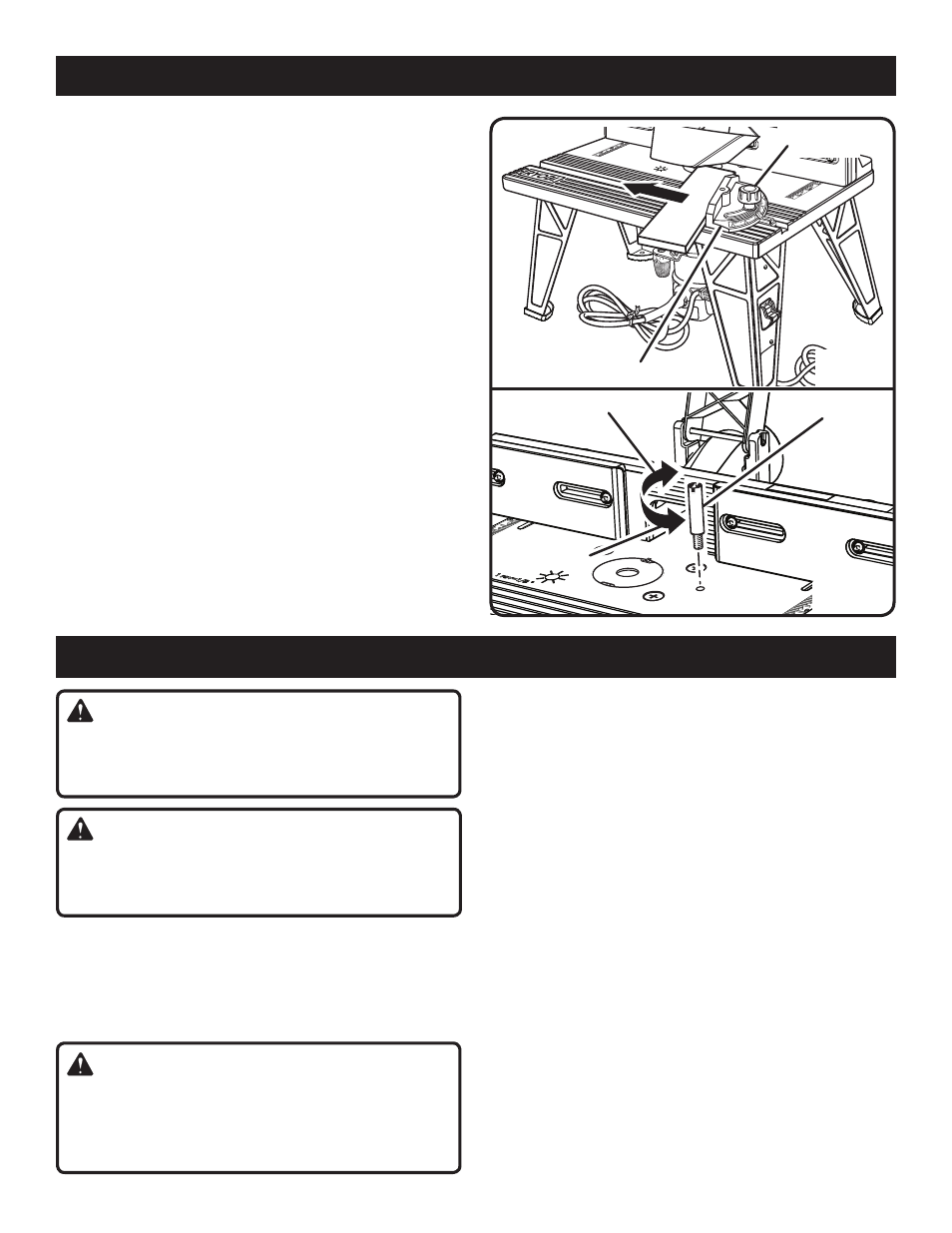

aDJUStING tHe MIter GaUGe
See Figure 21.

Loosen the miter gauge knob.
 Rotate the miter gauge to the desired angle.
 Tighten the miter gauge knob.
INSertING tHe StartING pIN
See Figure 22.
Place the starting pin on the router table and use it as a pivot
point when cutting small, odd-shaped pieces.
NOte: It is not necessary to use the fence when you are
using the starting pin, but the bit guard should be used to
cover the cutter. Additionally, only use piloted cutters when
using the starting pin.

Place the starting pin into the threaded hole to the right
of the router table throat opening.
 Turn the pin clockwise to secure.
MaINteNaNCe
WarNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal injury.
WarNING:
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WarNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
GeNeraL MaINteNaNCe
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
Electric tools used on fiberglass material, wallboard, spack-
ling compounds, or plaster are subject to accelerated wear
and possible premature failure because the fiberglass chips
and grindings are highly abrasive to bearings, brushes,
commutators, etc. Consequently, we do not recommend
using this product for extended work on these types
of materials. However, if you do work with any of these
materials, it is extremely important to clean the product
using compressed air.
Cord, switch and outlet are not provided as separate
replacement parts during servicing. Contact your local service
center for complete replacement assembly.
LUBrICatION
All of the bearings in this product are lubricated with a
sufficient amount of high grade lubricant for the life of the
unit under normal operating conditions. Therefore, no further
lubrication is required.
1 rev=1/8”
STARTING PIN
TIGHTEN
LooSEN
Fig. 1
MITER GAUGE
MITER GAUGE
KNoB
Fig.
OperatION
