Outdoor Great Room DIY Fire Pit - Manual (Page 4)

90246 REV C 6/10/13 4

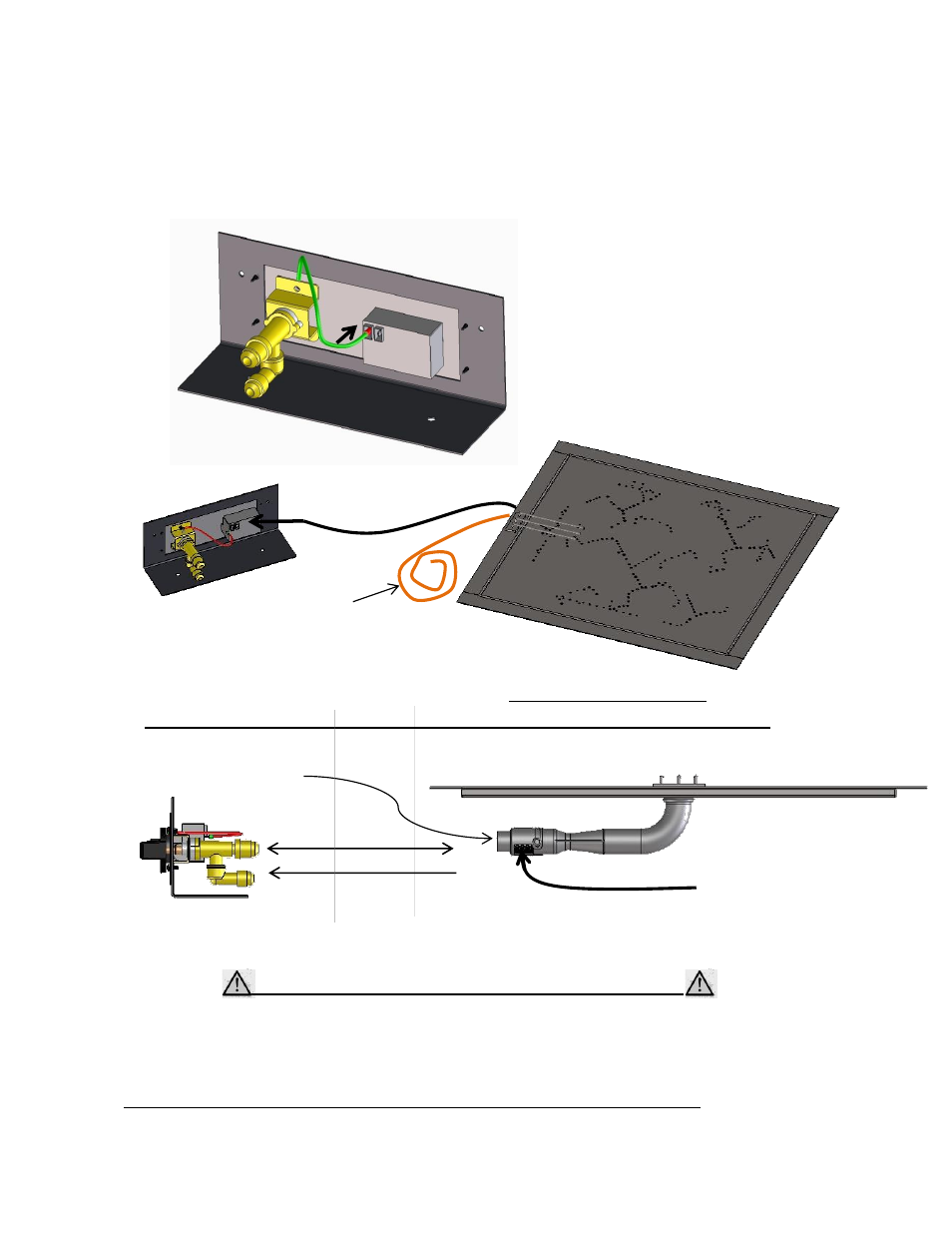

Step 4: Making Connections
Follow the steps below for making proper grounding, ignition, and gas line
connections.

Connect grounding wire to sparker
box as shown.
Gas input from source

When hooking up gas to burner, be sure to turn off gas flow at the source
(by closing valve on propane tank or natural gas line) before making any
connections. Tighten all gas connections securely using two wrenches
ENSURE THAT GAS LINES ARE NOT TOUCHING THE UNDERSIDE OF THE
BURNER WHILE IN OPERATION. THIS SURFACE CAN GET VERY HOT.
SECURE ALL GAS LINES AWAY FROM BURNER WHENEVER POSSIBLE.
CONSULT YOUR CRYSTAL FIRE OWNER’S MANUAL FOR MORE
IMPORTANT SAFETY INFORMATION

Plug the black sparker wire into the igniter box. A sparker wire extender is
included in your kit if the burner’s wire does not reach your control panel location.
Metal Flex
hose to burner
Note: Some burner models
may include a second
(orange) wire. This is not
used for this installation
Not used
Screw large end of orifice into burner neck. Orifice size should match the gas type
being used. See page 1 for info.
Air shutter should be in the closed
position (No screen showing) for
natural gas, open 1/8” for propane gas.
