ITEM DESCRIPTION QTY
35 Retaining Ring (Ext.) 2
45 Hex. Head Jam Nut (Not Shown) 4
58 Retaining Ring (Int.) 2
NOTE
Make sure you are in the correct section for the size and model of your Modular Unit.
ITEM DESCRIPTION QTY
11 Stub Shaft 1
19 Key 2
20 Bearing Flange 1
30 1 Ball Bearing 2
The item or balloon number for all Nexen products is used for part
identification on all product parts lists, product price lists, unit
assembly drawings, bills of materials, and instruction manuals.
When ordering replacement parts, specify model designation, item
number, part description, and quantity. Purchase replacement
parts through your local Nexen Distributor.
REPLACEMENT PARTS
MODULAR INPUT UNIT (MIU)
20
35
30
58
30
35
11

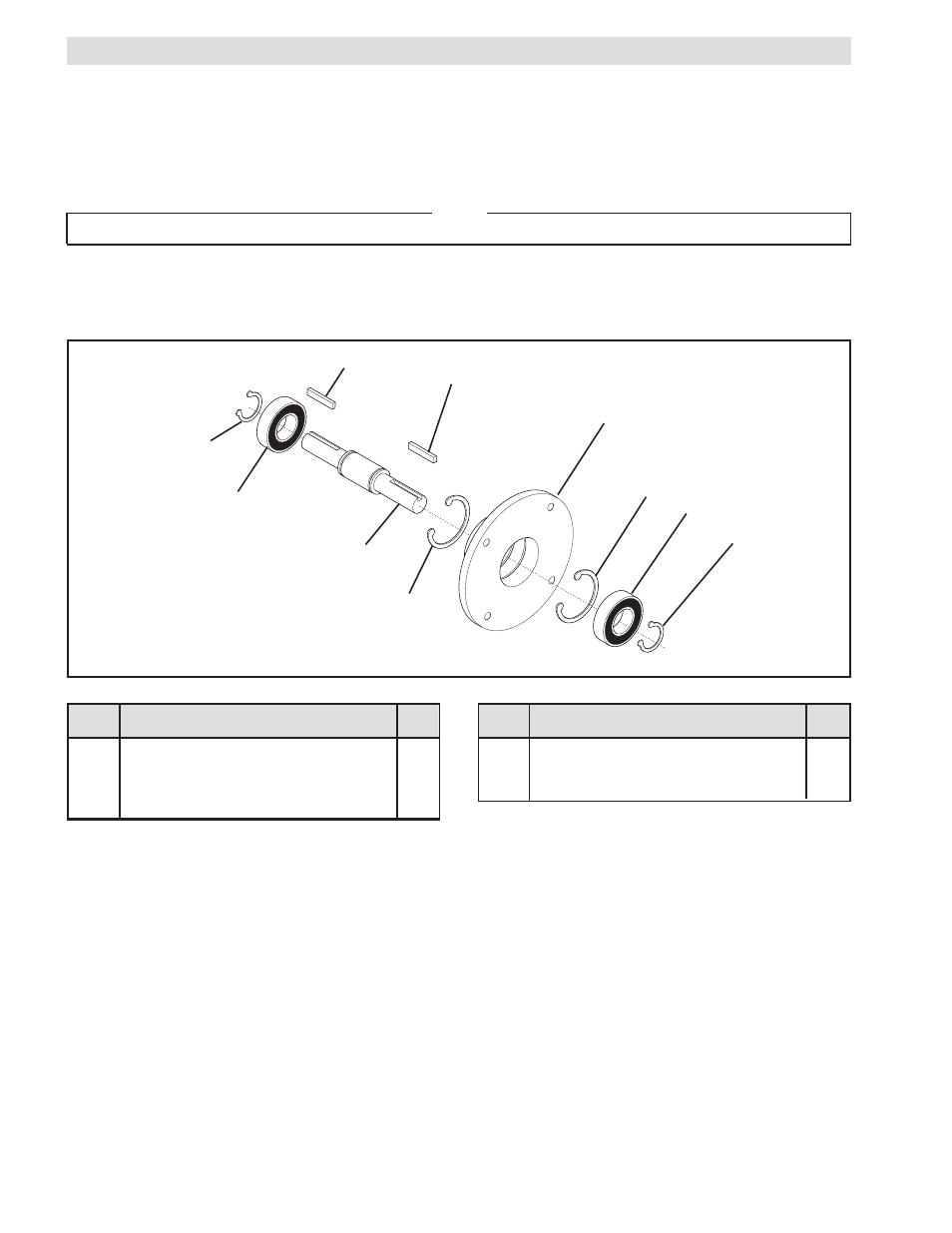

FIGURE 15
MODELS 625 & 875
19
19
58
1 Denotes Repair Kit item.
MIU 625 and 875 Repair Kit No. 930000.
