10
FORM NO. L-20134-J-1211
AIR CONNECTIONS
(continued...)
WARNING
Never exceed maximum operating speeds
listed for your product. (See Table 2).
OPERATION
CAUTION
CAUTION
TABLE 2
The temperature limits for this product
line are 4.5-104 Degree Celsius (40-
220 Degree F).
Never exceed life of facing material. Facing
life depends on the volume of material and
the total energy over the life of the unit.
Expected life (in hrs) can be found by:
Time=Volume/(Power*Wear Rate).
NEMA Motor/Frame Selection Chart
Hp of Motor Model Frame # Max RPM
0.5 625 56C 1800
0.5 875 143TC 900
0.75 625 56C 1800
0.75 875 143TC 1200
.75 875 145TC 900
1.0 625 56C 1800
1.0 875 143TC 1800
1.0 875 145TC 1200
1.5 875 145TC 1800
2.0 875 145TC 1800
MDO: Modular Drive Unit (MDU) and Modular Output Unit (MOU)
MIDO: Modular Input Unit (MIU), Modular Drive Unit (MDU) &
Modular Output Unit (MOU)
MIB: Modular Brake Unit (MBU) and Modular Input Unit (MIU)
MBU: Modular Brake Unit (MBU)
MDB: Modular Drive Unit (MDU) and Modular Brake Unit (MBU)
MIDB: Modular Input Unit (MIU), Modular Drive Unit (MDU), &
Modular Brake Unit (MBU)

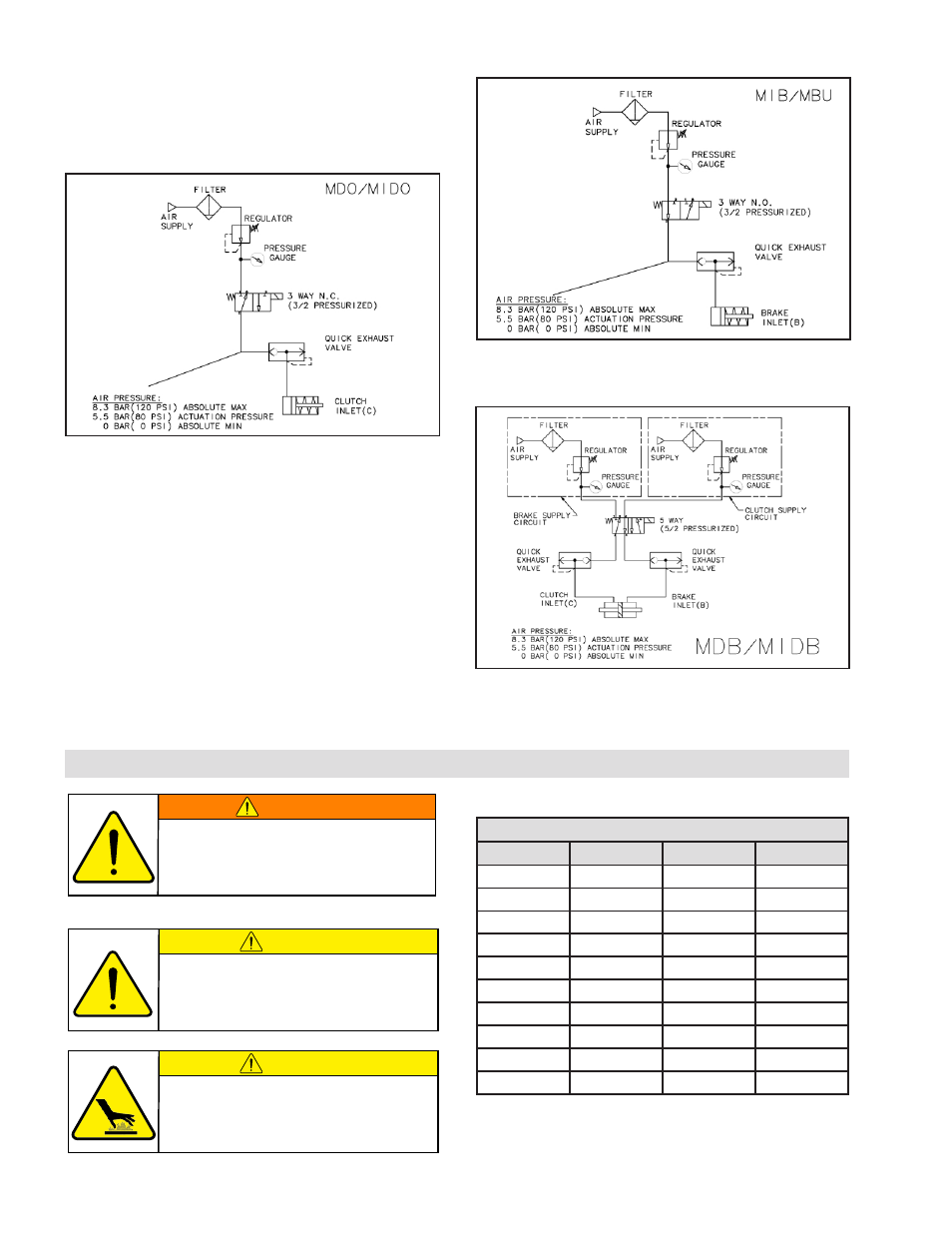

The following are common air supply schemes used with
this product. These are examples and not an all-inclusive
list. All air circuits to be used with this product must be
designed following EN983 guidelines.
