Assembly instructions 4/4, Step 8 step 9, Step 11 – Home Styles 5089-95 User Manual
Page 4: Step 10

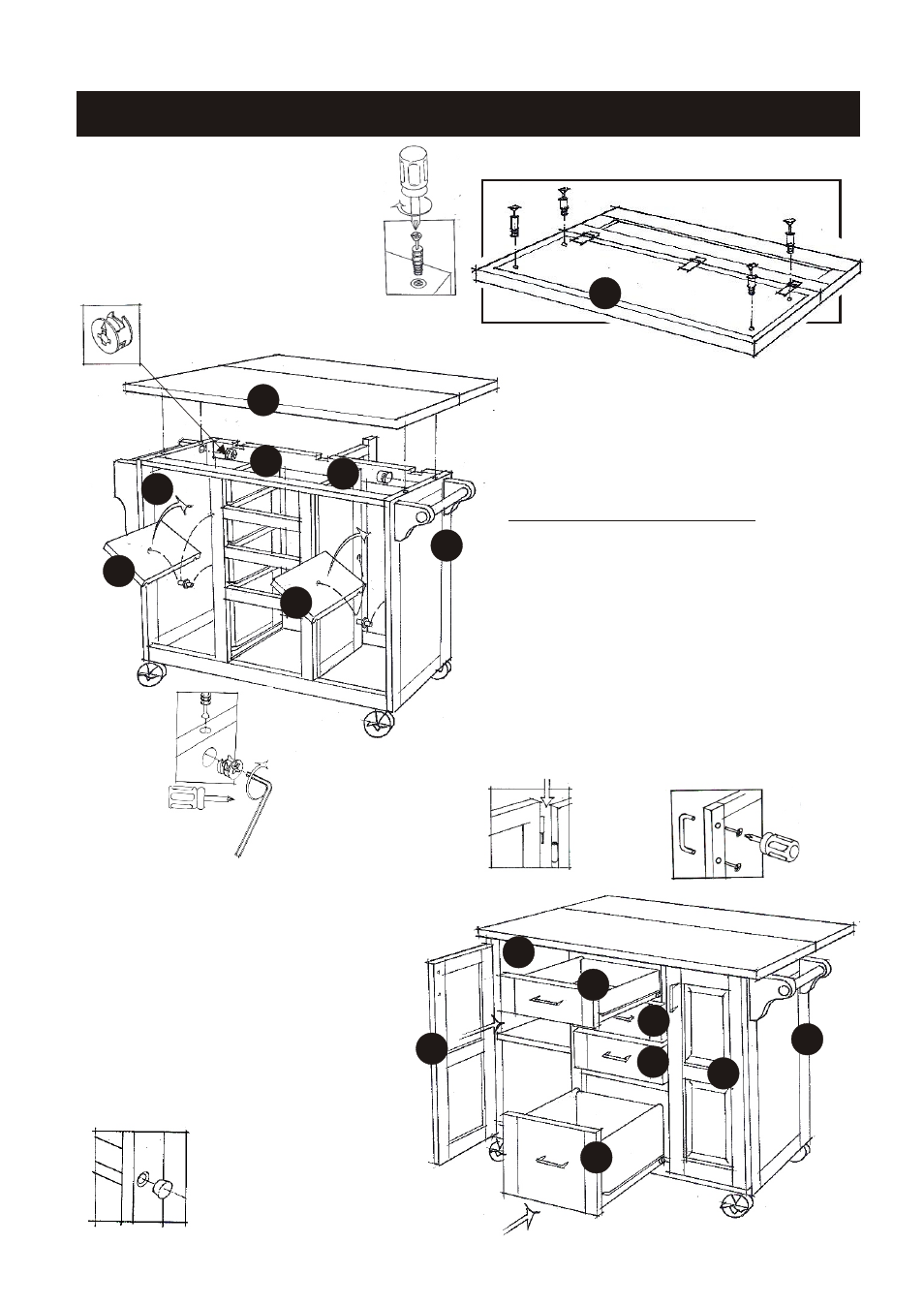

Assembly Instructions 4/4
STEP 8
STEP 9
Place the Top (A) on the assembled unit.
Place the Cam Locks into the holes of the
Side Frames (B) and (C).
Make sure the Arrow sign on top. and tighten all
the Cam Locks as to secure the Top with
the body.
Insert the Adjustable Pins into the Side
Frame (B), Middle Frame (D) and Side
Frame (C), Middle Frame (E) at the
desired level.
Place Shelf (P) into place.
A
P
W
X
N
N
N
O
P
A
B
B
D
E
C
C
Attach the Pull Handles to the
Door (W) and (X) using the Machine Screws.
Attach the Door (W) and (X) to the
Side Frame (B) and (C), slide the door
lift hinges into the side frame lift hinges.
See Assembly Instructions for Drawers
in the separate carton.
Slide the Drawers (N) and (O) into place.
Turn the Top (A) upside down
and put the Cam Lock Screws
to the pre-drilled holes.
Lift hinge
Assembly
Pull Handle
Assembly
See the “Arrow”
on top
STEP 11
Cover all holes with
Wood Plugs
STEP 10
Cam Lock
Assembly
