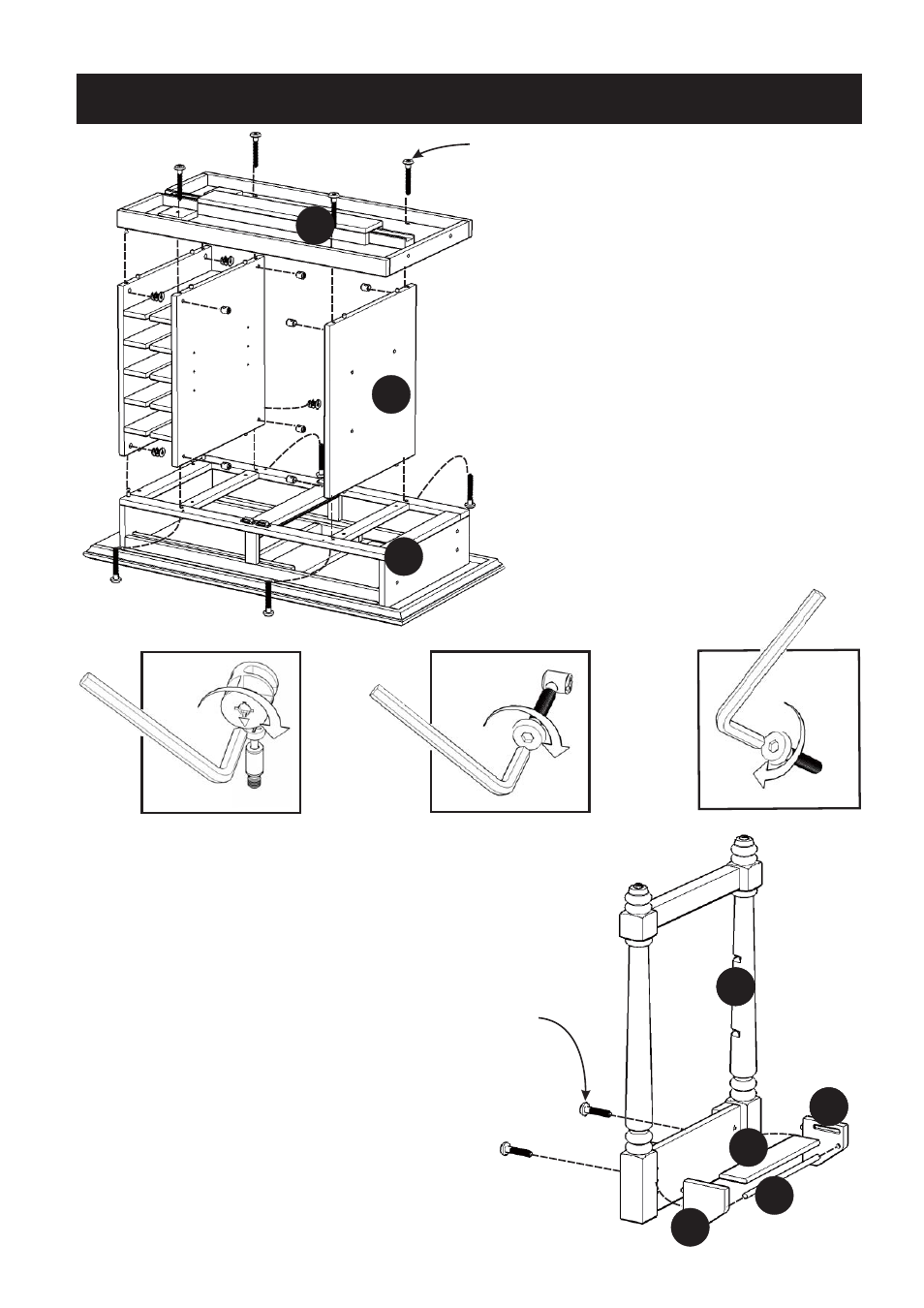

Assembly Instructions 3/5
Figure 5 Figure 3
I
F
F C
F
Q
P
N
STEP 4
Attach Base Rack (Q) and Pipe (P) to Side
Rack (N) and (O).
Attach rack unit to Side Frame (C) with Head
Cap Bolts (short). (see Figure 5)
Figure 4
Head Cap Bolt
(long)
STEP 3
Attach unit from Step 2 to Top Unit
(A) using Cam Locks, Head Cap
Bolts (long) and Cross Dowels.
(see Figure 3), (see Figure 4)
Attach Side Panel (F) to unit with
Head Cap Bolts (long) and Cross
Dowels.
Attach Bottom (I) to the unit using
Cam Locks, Head Cap Bolts (long)
and Cross Dowels.
Head Cap Bolt
(short)
A
O
