TTW1 Universal Service
Replacement Blower
MITW -10 Series
Page 9
Squeeze bushing to
remove power cord
from blower.
Push in both sides of
the bushing with pliers
to remove.
Step 8.
c.) Just below the crimp connector, cut the
(3) white (neutral) wires. Remove the
white power cord lead from the bundle.
Then, strip the ends of the (2)
remaining white wires and connect
them using a wire nut, included with
the kit, P/N 239-47281-00, and tuck the
wires back into the lower portion of the
access compartment.
d.) Just below the crimp connector, cut the
(3) green (ground) wires. Remove the
green power cord lead from the
bundle. Then, strip the ends of the (2)
remaining green wires and connect
them using a wire nut, included with
the kit, P/N 239-47281-00, and tuck the
wires back into the lower portion of the
access compartment.
e.) Remove the power cord from the
blower housing and discard.
f.) Verify that all electrical connections
have been modified, as previously
indicated. Also, verify that the
pressure switch tubing is connected to
the pressure tap on the blower
and to the switch itself. Ensure that
the tubing is not kinked.
Warning: Make sure that each wire nut is securely
tightened and that all wires are making
good connection or improper water heater
operation will occur.

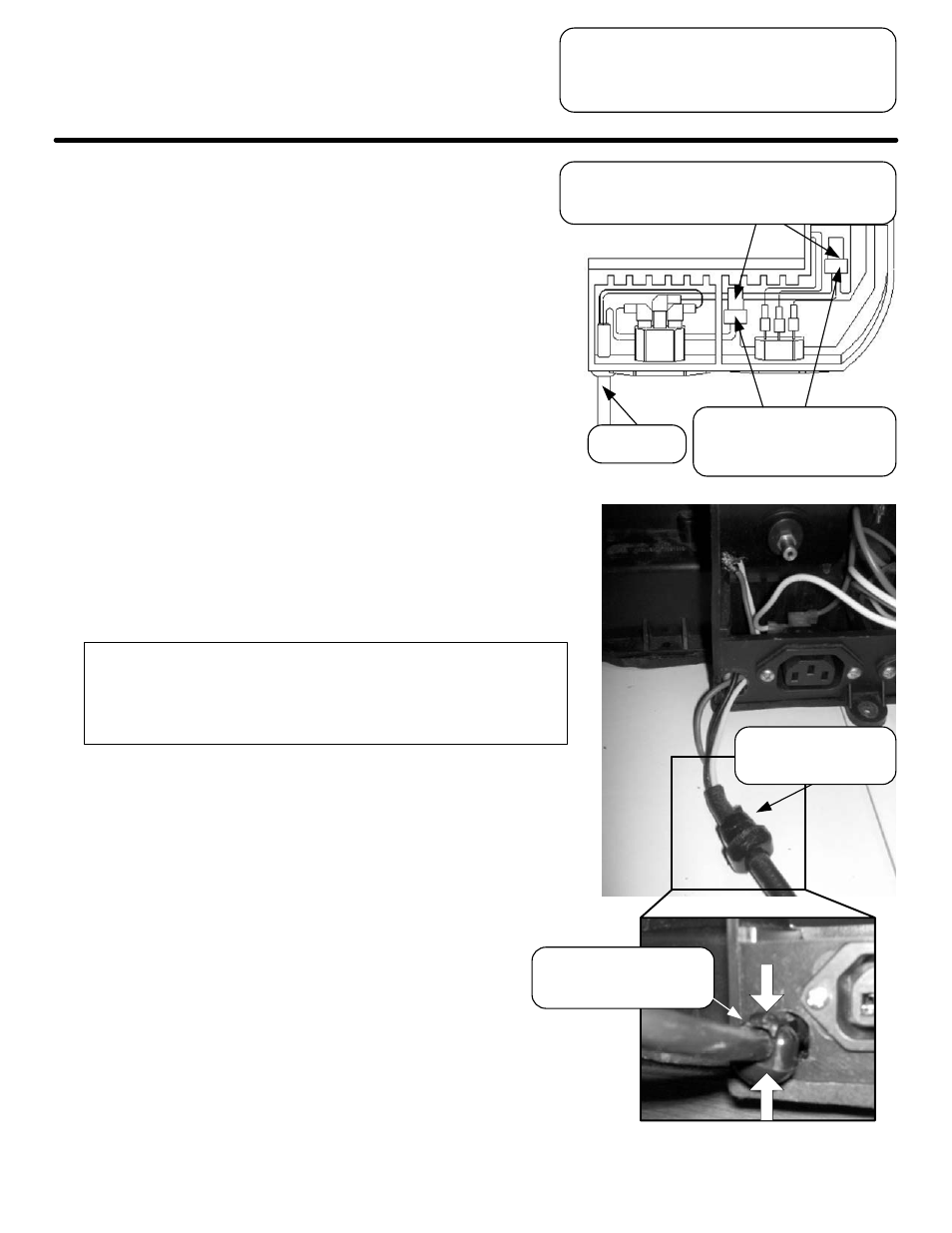

Connect (2) white wires
and (2) green wires, each
with their own wire nut.
Power cord
Cut just below these crimp connectors. Then,
remove (1) white and (1) green wire from
bundles. Trace wires back to power cord.
