Dual bracket support (pm-d only), Step 4.5-d, Step 4-d page 4 – AVF PM-D User Manual
Page 4: Alocating and installing mounting brackets, Pm-s go to next page)

B
6mm Hex Key
A B
A

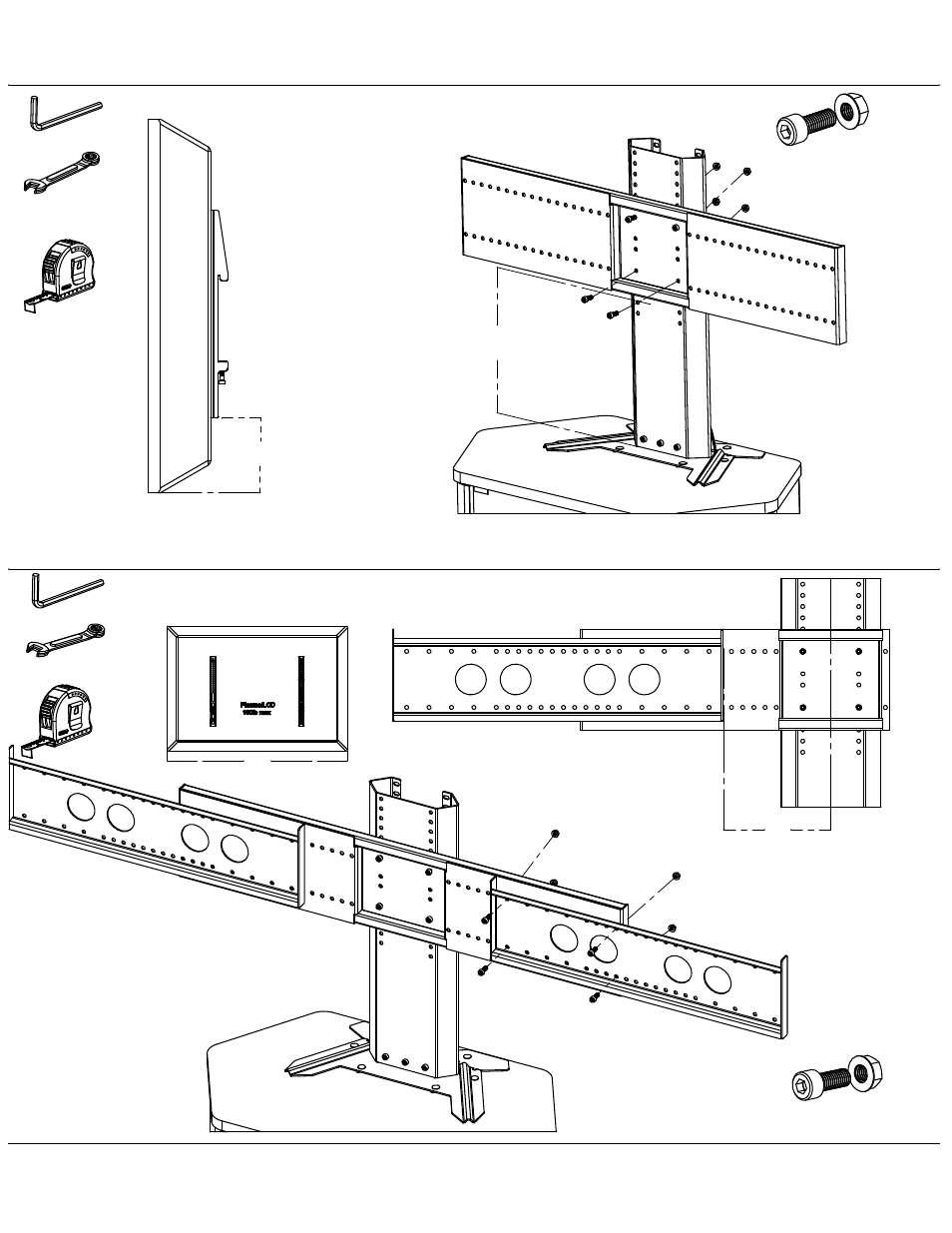

Locating and Installing Mounting brackets
=
Bolt to the nearest upper hole.
M8 X 20 with Locknut
Step 4.5-D
+ 4"
13mm Wrench
or Socket
6mm Hex Key
C
C
D
=
Bolt to the nearest outward hole.
Some tolerance will remain for adjusting.
( - 29.5")divided by 2
M8 X 20
Dual Bracket Support (PM-D only)
(PM-S go to Next Page)
Step 4-D
Page 4
of 8
D
Lock Nut
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive, Aurora , Ontario L4G OG9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 1-905-751-1488 Local:905-751-1459
13mm Wrench
or Socket
Note: You will need the PM-D
hardware bag in addition to the
PM-S hardware bag to complete
this step.
