AVF CS User Manual

Assembly and mounting instructions, Page 1, Adetail a

background image

1/2 Drill Bit.

Drywall

Cam Bracket

Codec Plate

Stud finder

Concrete Anchor

(4)

Quadrex Screw

(5)

Nut

(2)

Hex Bolt

(1)

Robertson

Bit #2

(1)

Hammer Drill

Philips or Robertson #2

Screwdriver or Drill

A

DETAIL A

Cable passage

for in-wall

Cable passage

Down Channel

Hammer

CS

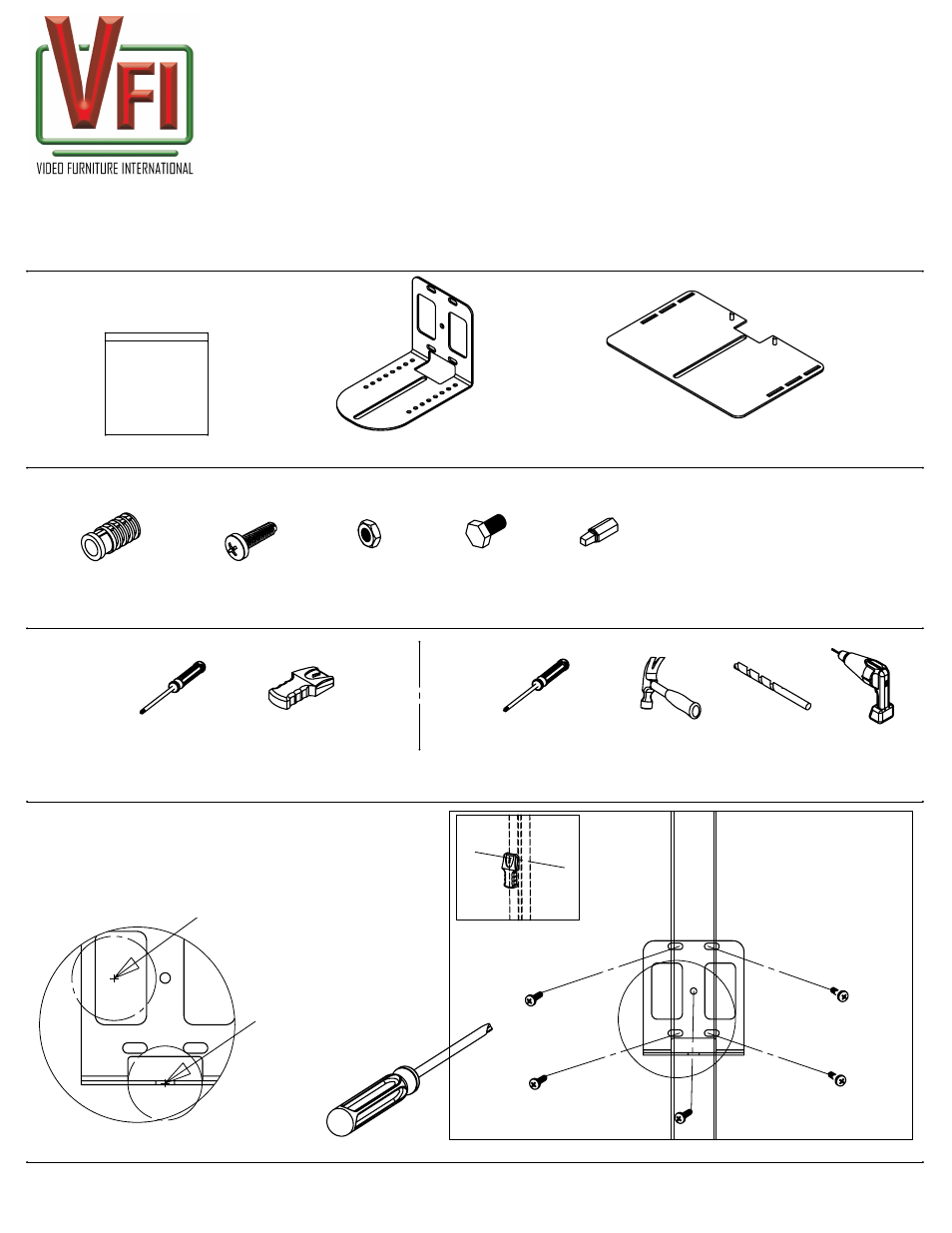

Assembly and mounting Instructions

VIDEO FURNITURE INTERNATIONAL

165 McIntosh Drive Markham , Ontario L3R ON6 www.video-furn.com

Toll Free: 1-877-834-3876 Fax: 1-905-946-8025 Local:905-946-1459

Note: If you cannot understand these instructions or are concerned about the safety of the installation

Contact a qualified contractor or contact VFI at 1-877-834-3876.

Confirm all hardware is included before you begin assembly.

Not all hardware supplied will be used.

Thank you for purchasing VFI's Camera and Codec Shelf.

This product was designed for wall mounting of a

cam or codec onto a wood frame or masonry wall. The CS can also

be painted to match your wall colour if required.

Supplied Parts:

Supplied Hardware:

Tools required:

Page 1

of 2

Hardware

Bag

Masonry

Philips or Robertson #2

Screwdriver or Drill

Attaching Cam Bracket to wood studs in drywall

1) Using a stud finder, mark the stud center and draw a

line for leveling. Careful to avoid electrical wiring.

Holes can be pre-drilled with a 3/16 bit.

2)Using either a cordless drill or screw driver insert five

screws angled towards the center. Do not over tighten
