Length piece 3

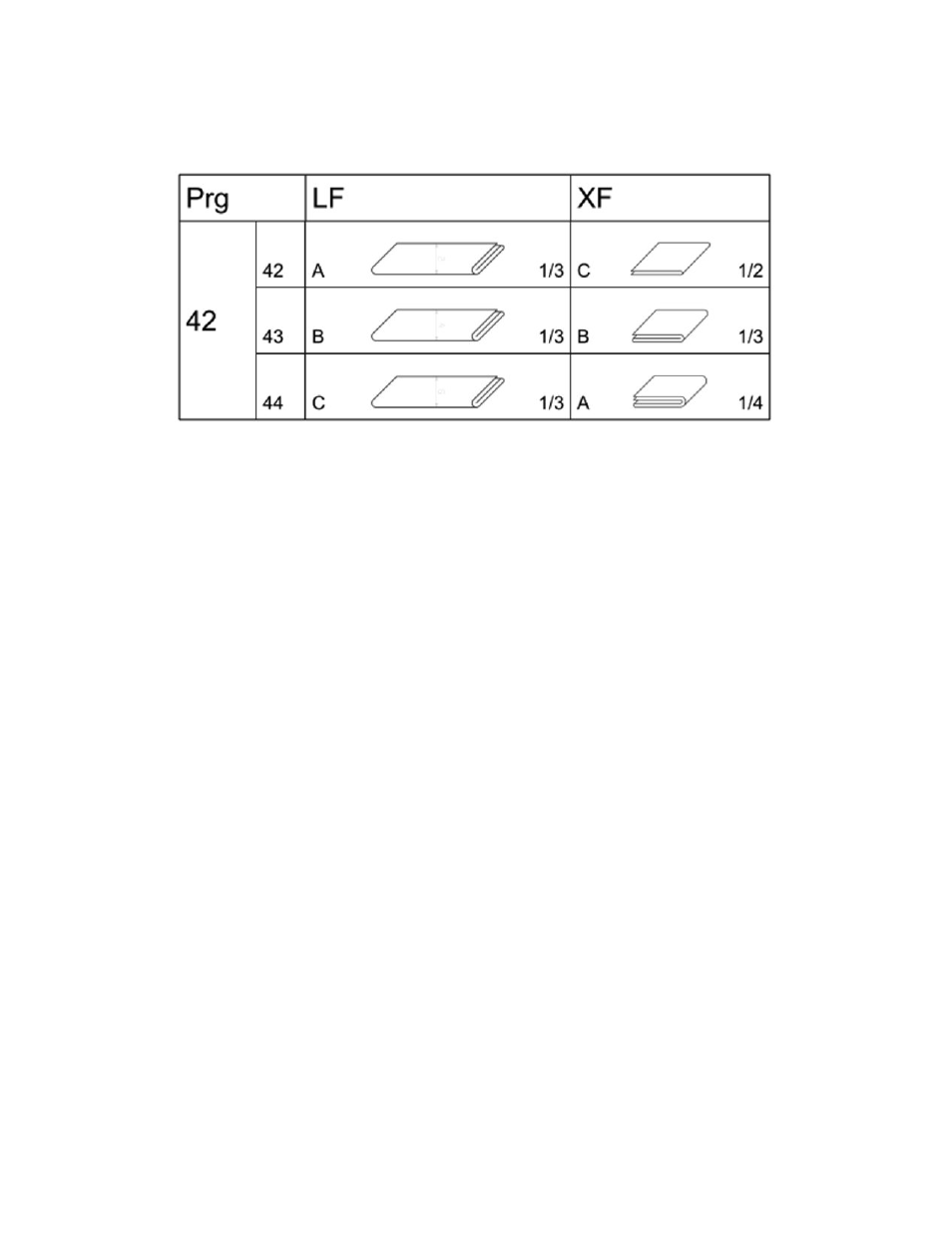

Figure 10.1: Sub-program detail
The main program determines the following:
Parameter No 50: Number of pieces to distinguish
Parameter No 51: Limit piece length 1 to 2
Parameter No 52: Limit piece length 2 to 3
Parameter No 53: Limit piece length 3 to 4
Parameter No 54: Limit piece length 4 to 5
Parameter No 55: Limit piece length 5 to 6
Parameter No 56: Program No length 1
Parameter No 57: Program No length 2
Parameter No 58: Program No length 3
Parameter No 59: Program No length 4
Parameter No 60: Program No length 5
Parameter No 61: Program No length 6
The sub-program determines the lateral folding (ski width and kind of folding), the crossfolding
(bypass:1/2, 1/3, 1/4, ...) and the stacker. Every sub-program can be a main program too.
The main program is the program that you select for folding. A sub-program is the program
which is actually used for folding the particular piece fed into the machine.
