Auralex TruTraps Genesis System - Manual (Page 3)

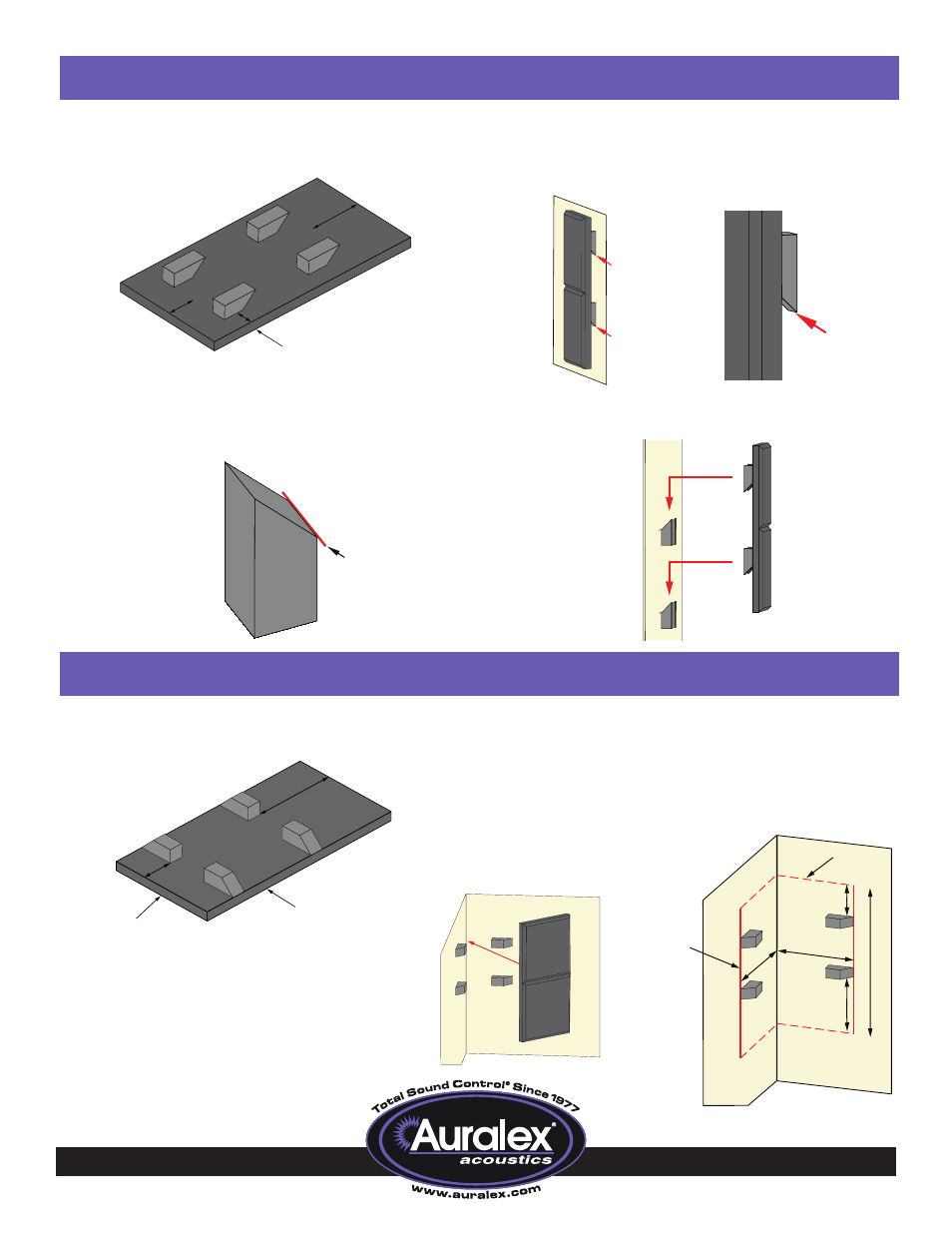

I - TruPanel Wall Installation Guide
➊
Attach four TruSpacers to the back of the
TruPanel using Tubetak Pro, as pictured. Let sit
for at least one hour.
➋
➌
After adhesive has fully cured overnight, place
TruPanel in its intended location.
➍
TruPanel
4”
18”
3”
Hold TruPanel (with TruSpacers attached) against the
wall in its desired location. Make sure the panel is
exactly level. Without moving the
TruPanel, trace
the bottom of each attached TruSpacer.
Trace bottom of
each TruSpacer
Trace
line
here
Remove TruPanel and attach one TruSpacer to
the wall at each marked location using Tubetak
Pro. Make sure that the TruSpacer lines up
exactly with the line drawn. Let
TruSpacers sit
overnight.
Traced
line
II - TruPanel Corner Installation Guide
➊
Attach four TruSpacers to the back of the
TruPanel with Tubetak Pro, as pictured.
➋
Mark a vertical line 16.75” from the corner on
both sides. Mark a horizontal line at the intended
top and bottom of installed TruPanel. Attach four
TruSpacers along vertical lines with
Tubetak Pro;
two 9” down from intended panel top and two 15”
up from the intended panel bottom, as pictured.
Let set overnight.
➌
Set TruPanel into place.
TruPanel
6”
18”
Top
16.75”
9”
15”
Top
48”
Marked
vertical
line
