Auralex Wave6 User Manual
Sustain, Wave6, Installation guidelines for cloud configuration

The following instructions are provided to assist you in configuring the
Wave6 System
in an overhead ‘cloud configuration’. This
configuration allows the
Wave6
to be hung above a mix or any other critical listening position.
If the
Wave6 System
is to be mounted to the sidewalls,
Auralex Mounting Blocks (included in WaveLens packaging) should be used.
Additional items you may need for this install (not included): level, pencil, drill, ladder, drywall screws, cable, chain, aircraft wire, nylon line etc.

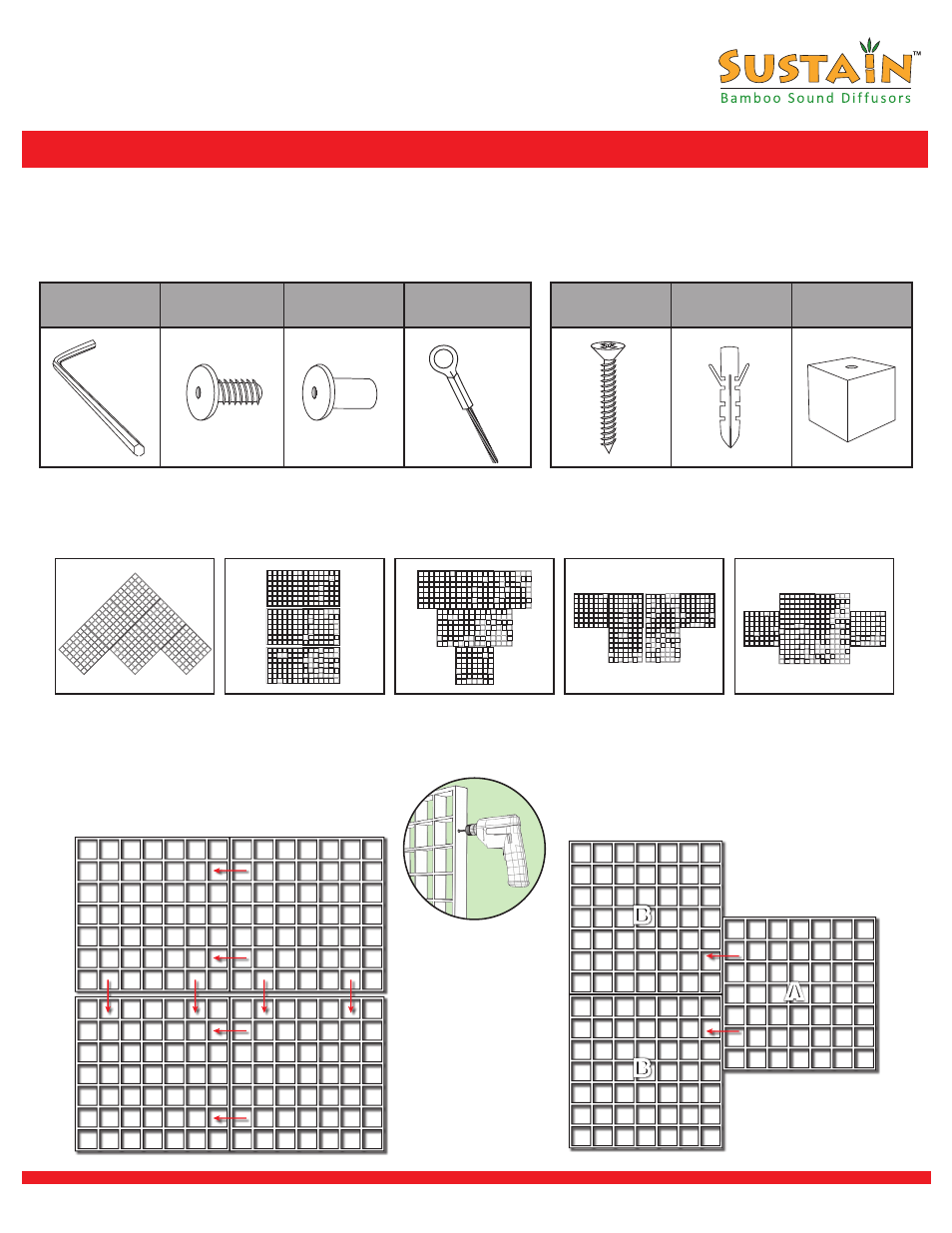

Hanging Hardware
Wall Mount Hardware
(2) Hex Wrenches
(12) Connector Bolts (12) Connector Nuts (4) Cable Assemblies
(8) Mounting
Screws
(8) Wall Anchors
(24) Mounting
Blocks
➊
CHOOSE LAYOUT:
Arrange
WaveLens on floor to achieve desired pattern. See below for layout ideas. Ensure the side to be viewed
from below is face down on floor.
MARK & DRILL HOLES:
Drill using
1
/
4
” drill bit
Side-By-Side Mounting:
Each attached
WaveLens should
contain a minimum of 2 connector bolt pairs. Mark the
drill hole position from each end of the
WaveLens
using the template on the following page.
➋
Sustain
™
Wave6
™
1258-1210 | Rev. 1 | 122110 TME
Wave6
™
Installation Guidelines for Cloud Configuration
Staggered-Mounting:
For staggered connections, mark
WaveLens
(A) with the template. Drill holes. Position along side
WaveLens (B) according to desired pattern. Mark drill
hole position for
WaveLens (B) through existing drill
hole on
WaveLens (A).
A
B
B
