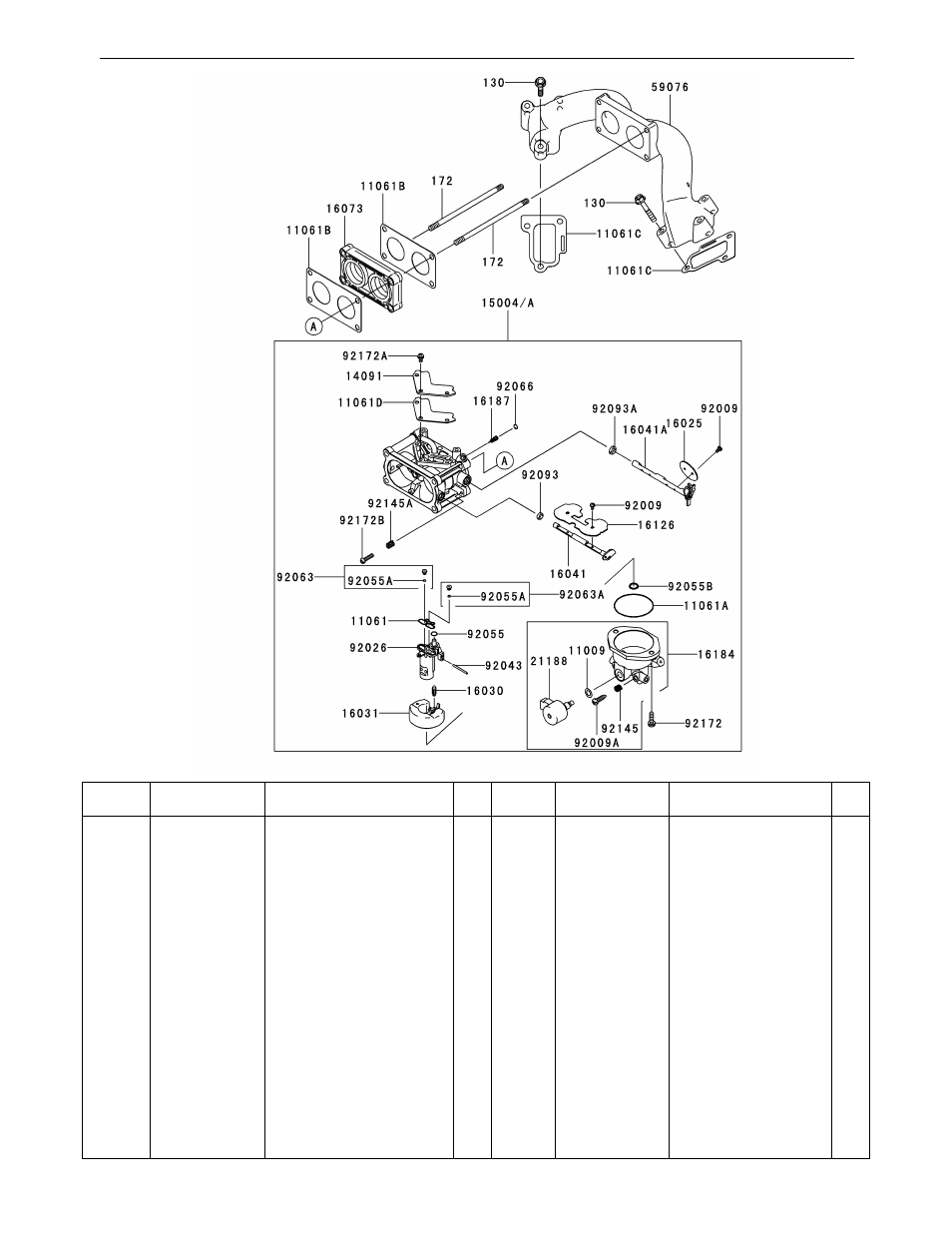

FXT00V 37HP Carburetor - Figure 22
and Parts List
Ref. No.
Part No.
Description
Qty.
Ref. No.
Part No.
Description
Qty.
11009
KM-11009-2056 Gasket
1
92009
KM-92009-7003 Screw
6
11061
KM-11061-7037 Gasket
1
92009A
KM-92009-7006 Screw, Drain
1
11061A
KM-11061-7038 Gasket
1
92026
KM-92026-7022 Spacer
1
11061B
KM-11061-7057 Gasket, Insulator
2
92043
KM-92043-7014 Pin
1
11061C
KM-11061-7062 Gasket, Manifoldr
2
92055
KM-92055-7012 Ring-O
1
11061D
KM-11061-7067 Gasket
1
92055A
KM-92055-7013 Ring-O
2
14091
KM-14091-7059 Cover
1
92055B
KM-92055-7016 Ring-O
1
15004
KM-15004-7003 Carburetor-Assy
92063
KM-92063-7099 Jet-Main,#134
1
15004A
KM-15004-7037 Carburetor-Assy
1
92063A
KM-92063-7100 Jet-Main, #140
1
16025
KM-16025-7012 Valve-Throttle
2
92066
KM-92066-7009 Plug, Expansion
2
16030
KM-16030-7004 Valve-Float
1
92093
KM-92093-7001 Seal, D=5.9
1
16031
KM-16031-7003 Float
1
92093A
KM-92093-7002 Seal, D=6.9
1
16041
KM-16041-7035 Shaft-Carburetor, Chock
1
92145
KM-92145-7011 Spring
1
16041A
KM-16041-7036 Shaft-Carburetor, Throttle
1
92145A
KM-92145-7039 Spring
1
16073
KM-16073-7010 Insulator
1
92172
KM-92172-7005 Screw
2
16126
KM-16126-7019 Valve, Chock
1
92172A
KM-92172-7006 Screw
3
16184
KM-16184-7021 Chamber-Assy-Float
1
92172B
KM-92172-7031 Screw, Throttle Adjust
1
16187
KM-16187-7005 Needle-Jet
2
130
KM-130AA0635 Bolt-Flanged, 6x35
6
21188
KM-21188-7003 Solenoid
1
172
KM-172BA06120 Bolt-Stud, 6x120
2
59076
KM-59076-7010 Manifold-Intake
1
