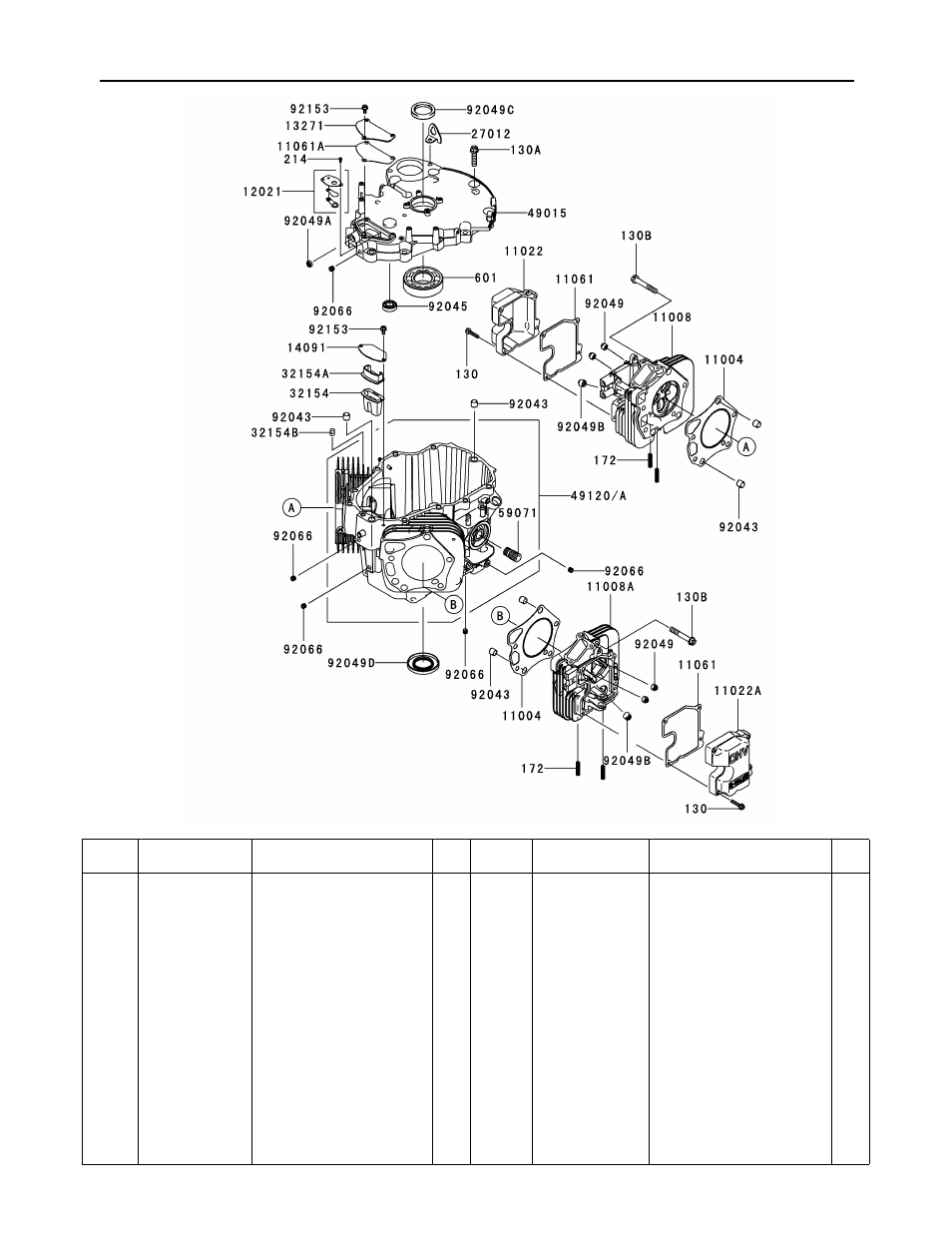

FXT00V 37HP Cylinder/Crankcase - Figure 15
and Parts List
Ref.
No.
Part No.
Description
Qty.
Ref. No.
Part No.
Description
Qty.
11004
KM-11004-7023 Gasket-Head
2
59071
KM-59071-2079 Joint
1
11008
KM-11008-7034 Head-Comp-Cylinder
1
92043
KM-92043-1266 Pin
6
11008A KM-11008-7035 Head-Comp-Cylinder
1
92045
KM-92045-7002 Bearing-Ball, 15x32x9
1
11022
KM-11022-7012 Case-Rocker
1
92049
KM-92049-7001 Seal-Oil,RVC2 6x11x10.2
4
11022A KM-11022-7013 Case Rocker
1
92049A
KM-92049-7005 Seal, Oil,SO 8x14x5 HS
1
11061
KM-11061-7055 Gasket, Case Rocker
2
92049B
KM-92049-7020 Seal-Oil, 7x15x13
2
11061A KM-11061-7065 Gasket, Breather-Cover
1
92049C
KM-92049-7024 Seal-Oil,SD 40x54x9 R HS
1
12021
KM-12021-7003 Valve-Assy-Reed,Breather
1
92049D
KM-92049-7025 Seal-Oil,SD 40x72x8 L VS
1
13271
KM-13271-7037 Plate, Breather-Cover
1
92066
KM-92066-7002 Plug
5
14091
KM-14091-7052 Cover, Breather
1
92153
KM-92153-7043 Bolt, 6x12
5
27012
KM-27012-7004 Hook
1
130
KM-130AA0630 Bolt-Flanged, 6x30
8
32154
KM-32154-7014 Pipe,Breather
1
130A
KM-130CA1040 Bolt-Flanged, 10x40
11
32154A KM-32154-7015 Pipe,Breather
1
130B
KM-130CA1065 Bolt-Flanged, 10x65
10
32154B KM-32154-7019 Pipe
1
172
KM-172BA0818 Bolt-Stud, 8x18
4
49015
KM-49015-7060 Cover-Crankcase
1
214
KM-214AA0408 Screw-Pan+-,4x8
2
49120
KM-49120-6169 Crankcase-Comp
601
KM-601A6308
Bearing-Ball
1
49120A KM-49120-6174 Crankcase-Comp
1
