Seat/floor panel assembly, Figure 11 and parts list – Cub Cadet 53AI8CT8050 User Manual
Page 19
19

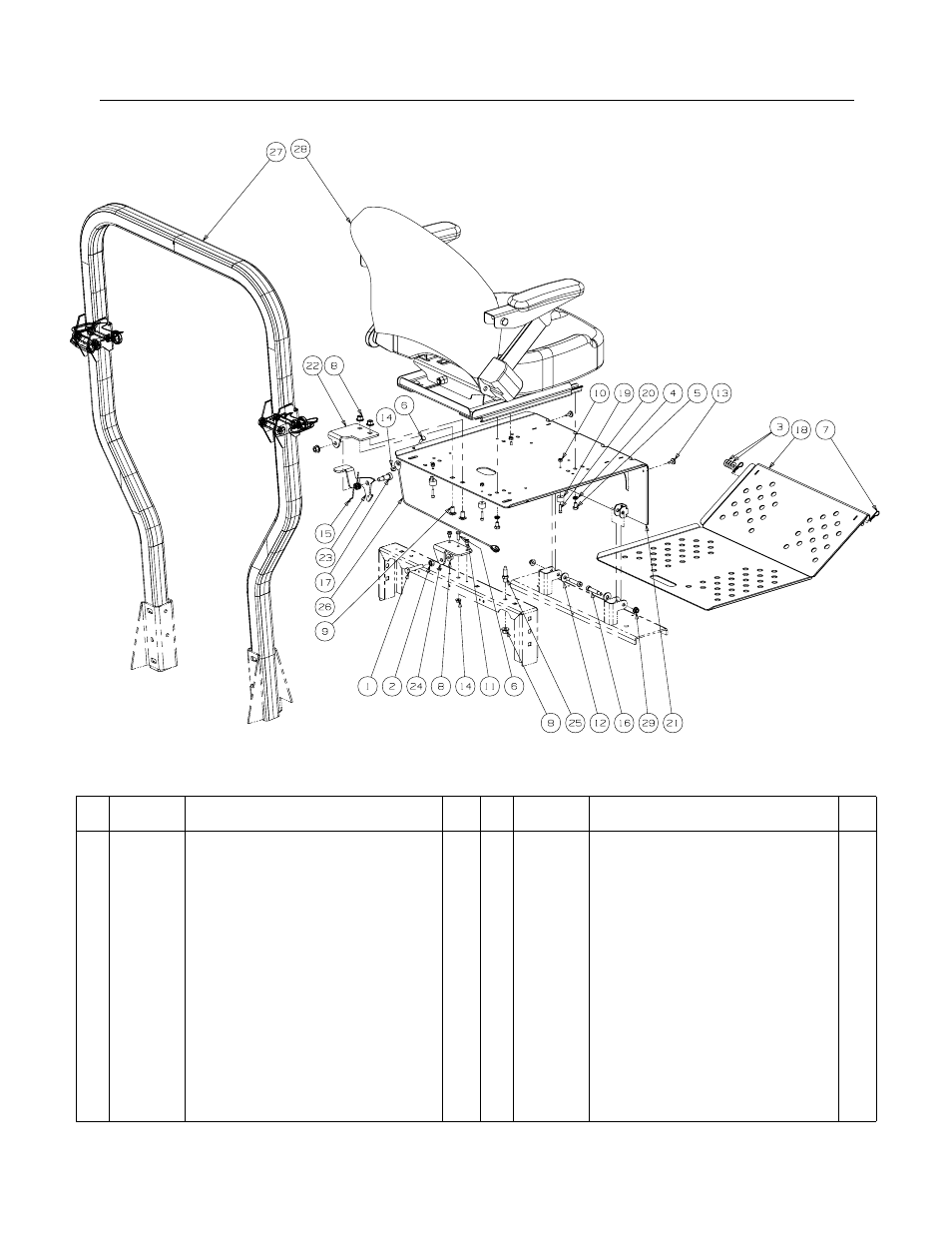

Seat/Floor Panel Assembly
GD: 02005208-01/03/08
- Figure 11 and Parts List
Ref.
No. Part No.
Description
Qty.
Ref.
No. Part No.
Description
Qty.
1
00002528 Hex Cap Screw 3/8-16 x 2.00
1
18
02002334 Floor Panel Assembly
1
2
00006131
Hex Nut, 3/8-16
1
19
02002963 Rubber Stop with Washer
4
3
00012158 Washer
AR
20
02002964 Standard Cap Screw, #10-24 x .75
4
4
00012168 Lock Washer, 5/16
4
21
02003404 Seat Plate Assembly
1
5
00012178 Hex Cap Screw, 5/16-18 x 1/2
4
22
02003730 Seat Latch Bracket
1
6
00013131 Screw, Hex, Cap, 1/4-20 x .75
2
23
02003732 Latch Lever Bracket
1
7
00021956 Hair Pin, 3/8-1/2
2
24
02003738 Latch Bracket
1
8
00022560 Flange Lock, Hex Nut, 3/8-16
5
25
02003745 Adjustable Stud
1
9
01000372 Carriage Bolt, 3/8-16 x .75 Long
2
26
02004062 Cable Support
1
10
01000523 Nut, #10-24, Nylon Lock
4
27
02005081 Foldable Rops Assembly includes:
1
11
01000628 Screw, TT, 1/4-20, 0.5, Hex Index Washer
2
Knob
2
12
01000723 Flat Washer, .406 ID, 1.0 OD, .105
2
02004324 Pin, Lock
2
13
01001170 Rubber Bumper, .62 OD x .22 Thick
2
28
02005209 Seat w/ Seat Belt & Suspension
1
14
01002766 Lock Nut, 1/4-20
2
01008364 Right Hand & Left Hand Armrest Kit
15
01008140 Deck Lift Spring, Left Hand
1
02000767 Seat Switch Assembly
16
01009459 Shoulder Bolt, .375 x 1.50
2
29
712-04063 Flange Lock Nut, 5/16-18
2
17
02002091 Shoulder Bolt, 1/2 x 3/4, 3/8-16
1
